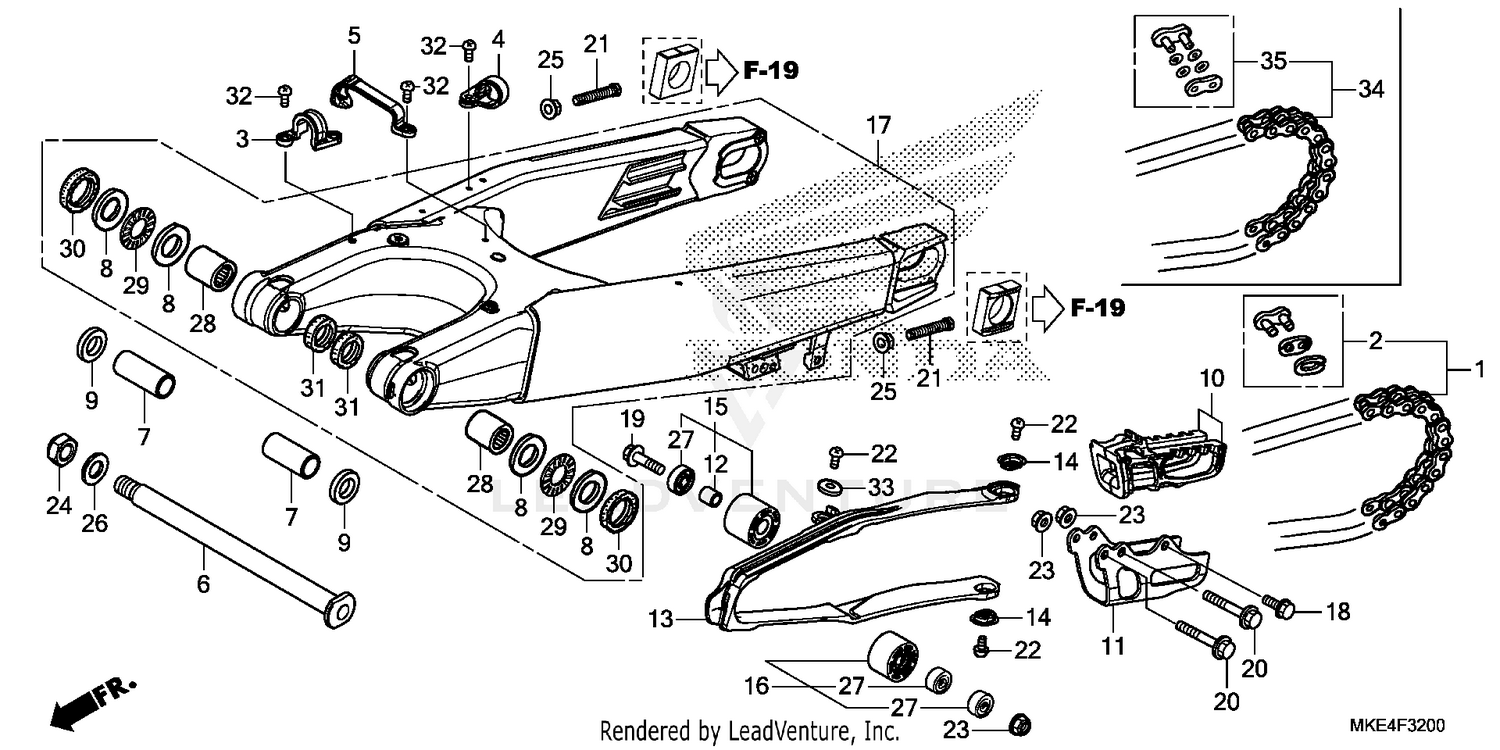

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L)
40530-KRN-A12
Superseded by 40530-KRN-A31
|
$153.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L)
40530-KRN-A31
|
$153.76 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL) (STANDARD LINK 114L)
40540-KRN-A32
|
$224.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER LINK (RK EXCEL)
40531-KRN-A12
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, BRAKE HOSE
43468-KRN-A90
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE A, BRAKE HOSE
43468-KRN-C90
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE B, BRAKE HOSE
43469-MKE-A00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, SWINGARM PIVOT
52101-KZ4-J40
|
$29.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SWINGARM (45MM)
52141-MKE-A00
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SWINGARM SIDE THRUST
52143-MEN-A30
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SWINGARM PIVOT SIDE
52143-MKE-A60
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE SET, CHAIN
52146-MKE-A00
Superseded by 52146-MKE-A01
|
$36.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE SET, CHAIN
52146-MKE-A01
|
$36.36 | ||
|
Unavailable |
|||
|
#11
PLATE, CHAIN GUIDE
52147-MEN-J00
|
$54.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CHAIN TENSIONER
52160-MEN-000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER, CHAIN
52170-MKE-A00
|
$87.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROLLER, CHAIN (34MM)
52175-MKE-A00
|
$59.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CHAIN (LOWER) (34MM)
52176-MKE-A00
|
$59.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM SUB-ASSY., RR.
52200-MKE-A00
|
$1,129.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X12)
90101-MEN-A60
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X32)
90101-MEN-A70
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X45)
90103-MEN-A60
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (8X47.5)
90105-MEN-000
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X8)
90115-KV3-700
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U HEX. (14MM)
90305-KZ3-B01
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (10MM)
90309-357-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GAH-000
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (26X14X2.8)
90501-GBL-730
Superseded by 90501-GAH-000
|
$7.97 | ||
|
Unavailable |
|||
|
#27
BEARING, RADIAL BALL (608UU)
91051-KRN-A31
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE (THOMPSON)
91071-MJ0-003
Superseded by 91071-MJ0-004
|
$42.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, NEEDLE (THOMPSON)
91071-MJ0-004
|
$42.70 | ||
|
Unavailable |
|||
|
#29
BEARING, NEEDLE THRUST
91072-KZ3-861
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (30X37X3)
91251-MKE-A01
|
$7.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (22X29X3)
91252-MKE-A01
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (5X8)
93500-05008-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (5MM)
94103-05700
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
