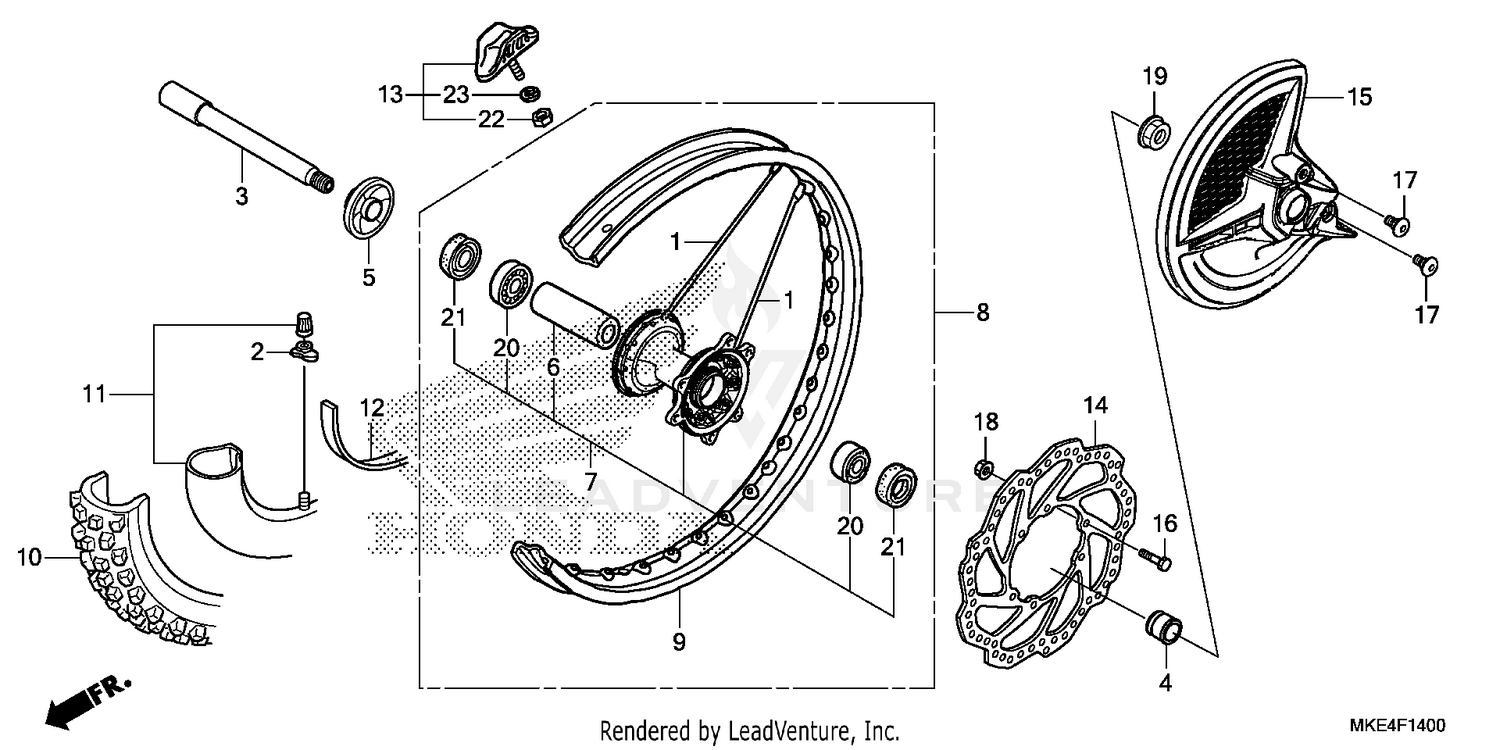

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, FR. (240MM)
06440-MEN-840
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE
42714-KA3-710
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-MEN-000
|
$59.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, L. FR. WHEEL
44311-MKE-A60
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, R. FR. WHEEL
44312-KRN-A30
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. WHEEL DISTANCE
44620-MKE-A60
|
$22.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
HUB SUB-ASSY., FR.
44635-MKE-A60
|
$261.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., FR.
44650-MKE-A60
|
$884.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM, FR. WHEEL (21X1.60)
44701-MEN-A11
|
$267.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, FR. (80/100-21) (51M) (DUNLOP)
44711-MKE-A01
|
$104.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
0Y400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-34010
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-MC4-005
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-400-004
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-437-971
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
FLAP, TIRE (80/100-21) (DUNLOP)
44713-KS6-641
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER, BEAD (1.60)
44715-MA0-770
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, FR. BRAKE
45351-KRN-A90
|
$270.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, FR. DISK *NH1* (BLACK)
51614-MKE-A00ZA
|
$34.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DISK (6X19)
90105-MAC-680
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FR. DISK COVER (FOR RR.)
90114-MAC-780
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FR. AXLE
90301-KZ4-J40
|
$19.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6904)
91062-MAC-681
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (26X37X7) (ARAI)
91201-KS6-004
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
