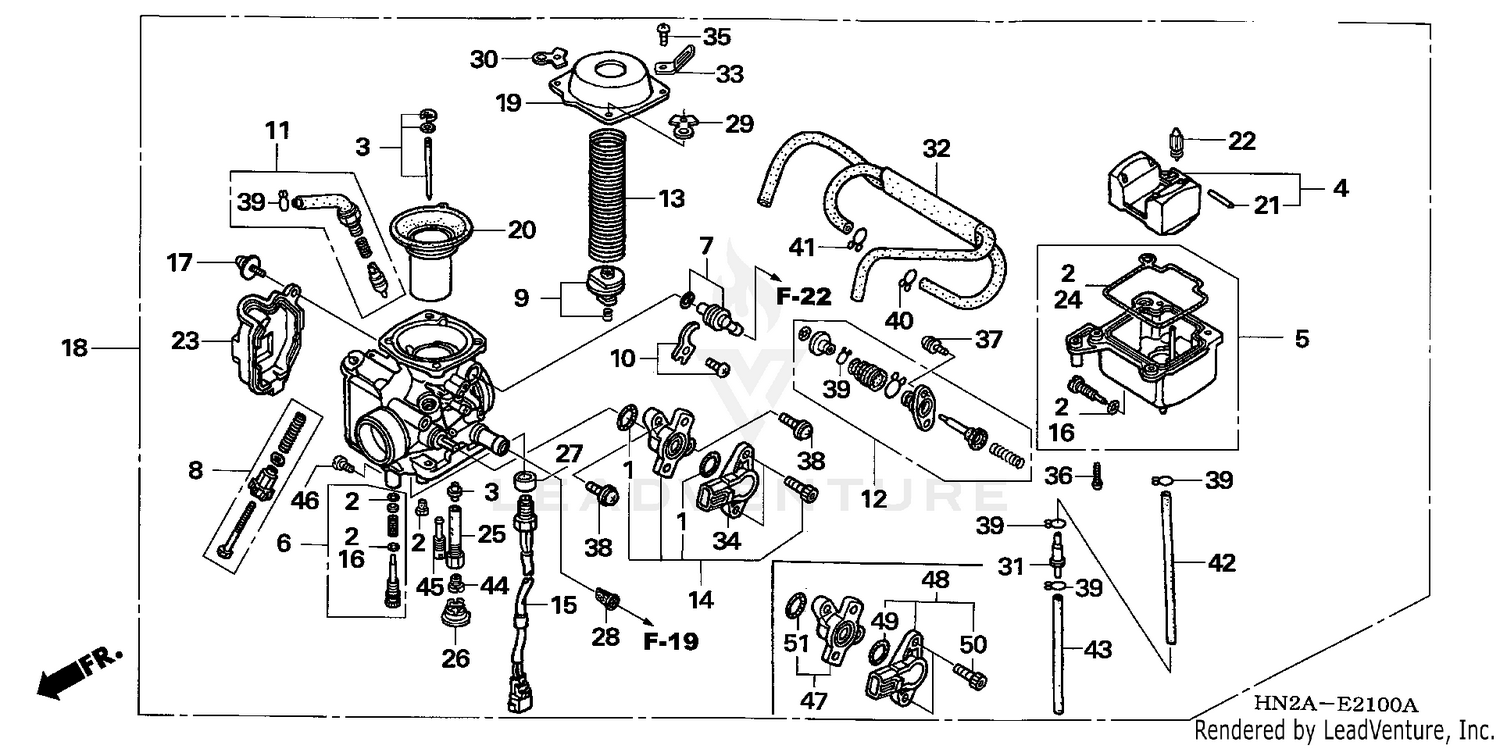

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
GASKET SET
16010-HN7-003
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET
16012-HN2-A21
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-HN8-003
|
$45.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HP0-A01
|
$44.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16016-HN2-A21
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT SET
16026-MR1-004
|
$47.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET
16028-HP0-A01
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE SET, VALVE
16037-HN2-003
|
$20.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE SET, STAY
16038-HN8-003
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, STARTER
16046-HN2-003
|
$64.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
PUMP SET
16048-HM7-700
Superseded by 16048-HN7-003
|
$101.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION COIL
16050-HN2-A21
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEATER ASSY.
16070-HN2-A21
|
$78.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (1.3X4.3)
16075-GHB-640
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER
16080-HC0-003
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
CARBURETOR ASSY
16100-HN2-A22
Superseded by 16100-HN2-A25
|
$396.65 | ||
|
Unavailable |
|||
|
#19
TOP
16107-HN2-003
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON, VACUUM
16111-HN2-003
|
$138.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, ARM
16152-HN8-003
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, FLOAT
16155-HN7-003
|
$33.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, BODY
16157-HN8-003
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, FLOAT CHAMBER
16163-MEA-671
|
$26.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, NEEDLE JET
16165-HN2-003
|
$37.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, JET
16168-HC4-003
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, SETTING
16172-KEB-610
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREEN, FUEL STRAINER
16176-MW3-A80
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
BINDER
16178-HP0-A01
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
BINDER
16179-HP0-A01
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
VALVE, ONE-WAY
16180-HC4-003
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#32
TUBE, AIR VENT
16196-HP0-A01
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, PLATE
17191-MT2-740
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (4X8)
93500-04008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.90 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN (4X14)
93500-04014-0H
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
|
$0.81 | ||
|
Unavailable |
|||
|
#37
SCREW-WASHER (4X12)
93892-04012-08
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.63 | ||
|
Unavailable |
|||
|
#38
SCREW-WASHER (5X14)
93892-05014-08
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (5X14)
93892-05014-18
Superseded by 93892-05014-08
|
$1.10 | ||
|
Unavailable |
|||
|
#39
CLIP, TUBE (B7)
95002-02079
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP, TUBE (B8)
95002-02089
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, TUBE (B6.5)
95002-02659
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
BULK HOSE, VACUUM (3.5X1000) (3.5X60)
95005-35001-50M
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#43
BULK HOSE, VACUUM (3.5X1000) (3.5X200)
95005-35001-50M
|
$15.90 | ||
|
Unavailable |
|||
|
#44
JET, MAIN (#158)
99101-HN2-1580
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, MAIN (#162)
99101-HP0-1620
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET, SLOW (#45)
99104-HN2-0450
Superseded by 99104-KPF-0450
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET (#85)
99112-HN2-0850
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPACER SET, THROTTLE SENSOR
16060-HN2-A21
|
$34.71 | ||
|
Available to order. Add to View Price |
|||
|
#48
CARBURETOR ASSY
16061-HP0-A01
Superseded by 16061-HP0-A02
|
$256.09 | ||
|
Unavailable |
|||
|
#49
O-RING
16075-HN2-A21
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, BREAK HEAD
16083-HP0-A01
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING (14.8X1.9)
91304-PT0-000
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
