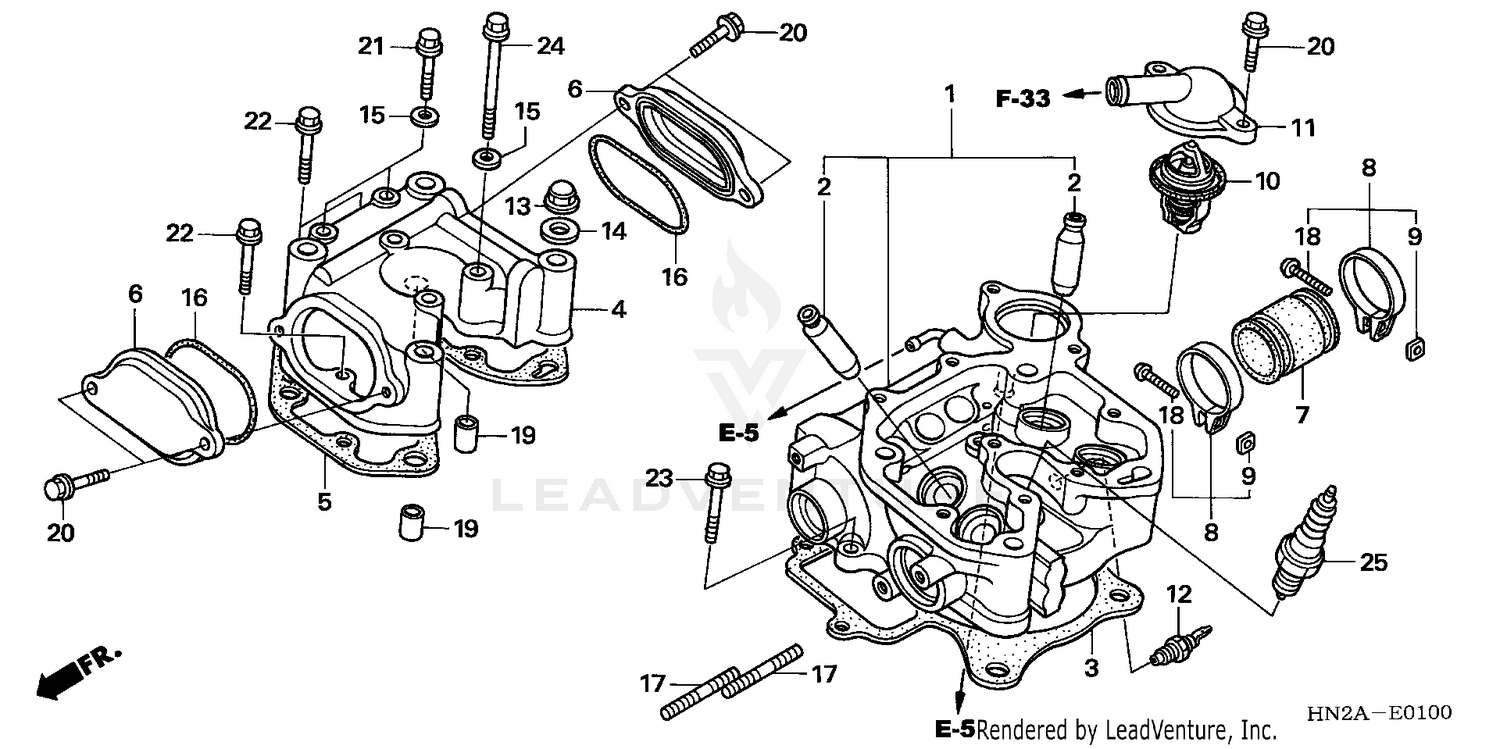

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-HN2-000
|
$394.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-HN2-305
|
$22.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-HN2-003
|
$45.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD (OVER SIZE)
12252-HN2-305
|
$47.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CYLINDER HEAD
12310-HN2-000
|
$244.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, HEAD COVER
12315-HN2-003
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, TAPPET ADJUSTING HOLE
12351-HN2-010
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, CARBURETOR
16211-HN2-000
|
$33.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND B, INSULATOR
16218-MW4-000
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
THERMOSTAT ASSY.
19300-HN2-003
|
$50.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, THERMOSTAT
19321-HN2-000
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
THERMO UNIT (DENSO)
37750-MAZ-003
|
$45.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CAP (10MM)
90201-HA0-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$7.75 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (10MM)
90401-437-000
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6MM)
90441-706-000
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (57X2.5)
91308-500-000
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD (8X25)
92900-08025-0B
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X25)
93500-05025-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN A, DOWEL (12X16)
94301-12160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X30)
95701-06030-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (IJR6A9) (NGK)
98069-5691U
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (VX20BC) (DENSO)
98069-5692U
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (IJR7A9) (NGK)
98069-5791U
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (VX22BC) (DENSO)
98069-5792U
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
