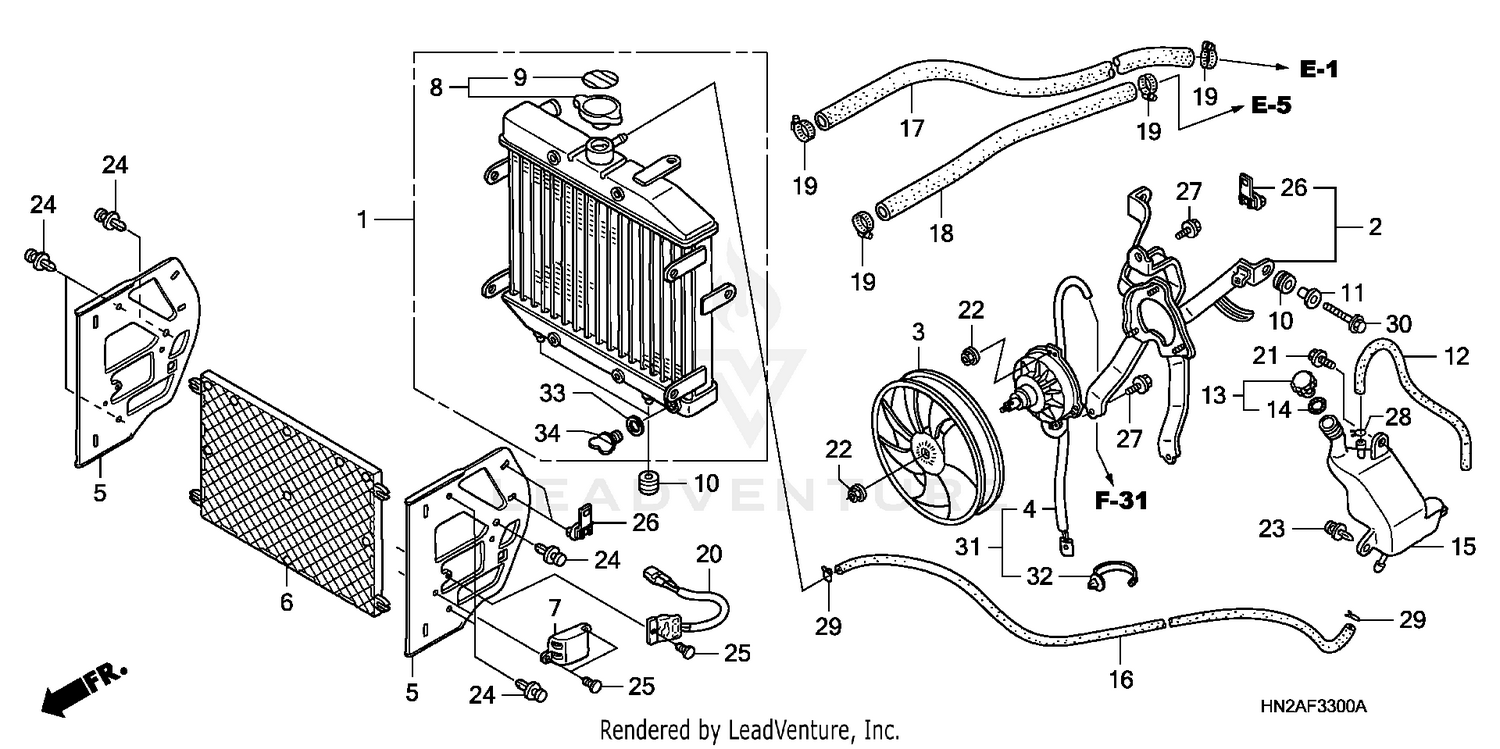

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-HN2-A21
|
$299.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, COOLING FAN
19015-HN2-A21
|
$35.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN, COOLING
19020-HN2-003
|
$79.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOTOR ASSY., FAN
19030-HN2-A21
|
$136.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, RADIATOR GRILLE
19033-HN2-A20
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, RADIATOR GRILL
19034-HN2-A20
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, THERMO SWITCH
19036-HN8-000
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RADIATOR
19037-GEE-710
|
$35.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, BREATHER
19104-HN2-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY., RESERVE TANK
19105-MG8-000
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, RESERVE TANK
19107-MG8-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, RADIATOR RESERVE
19110-HN2-000
|
$26.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, RADIATOR RESERVE
19111-HN2-A20
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, WATER (UPPER)
19501-HN2-A20
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, WATER (LOWER)
19502-HN2-000
|
$21.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, WATER HOSE (27MM)
19503-HN2-A60
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY., THERMOSTAT
35250-HN4-670
|
$55.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6MM)
90111-162-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Unavailable |
|||
|
#25
CLIP, WASHER MOUTH
91504-SD5-901
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT-WASHER (6X12)
93401-06012-08
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, TUBE (B10)
95002-02100
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, TUBE (C9)
95002-50000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, GASKET
19109-HN2-003
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#34
PETCOCK, DRAIN
90103-HN2-003
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
