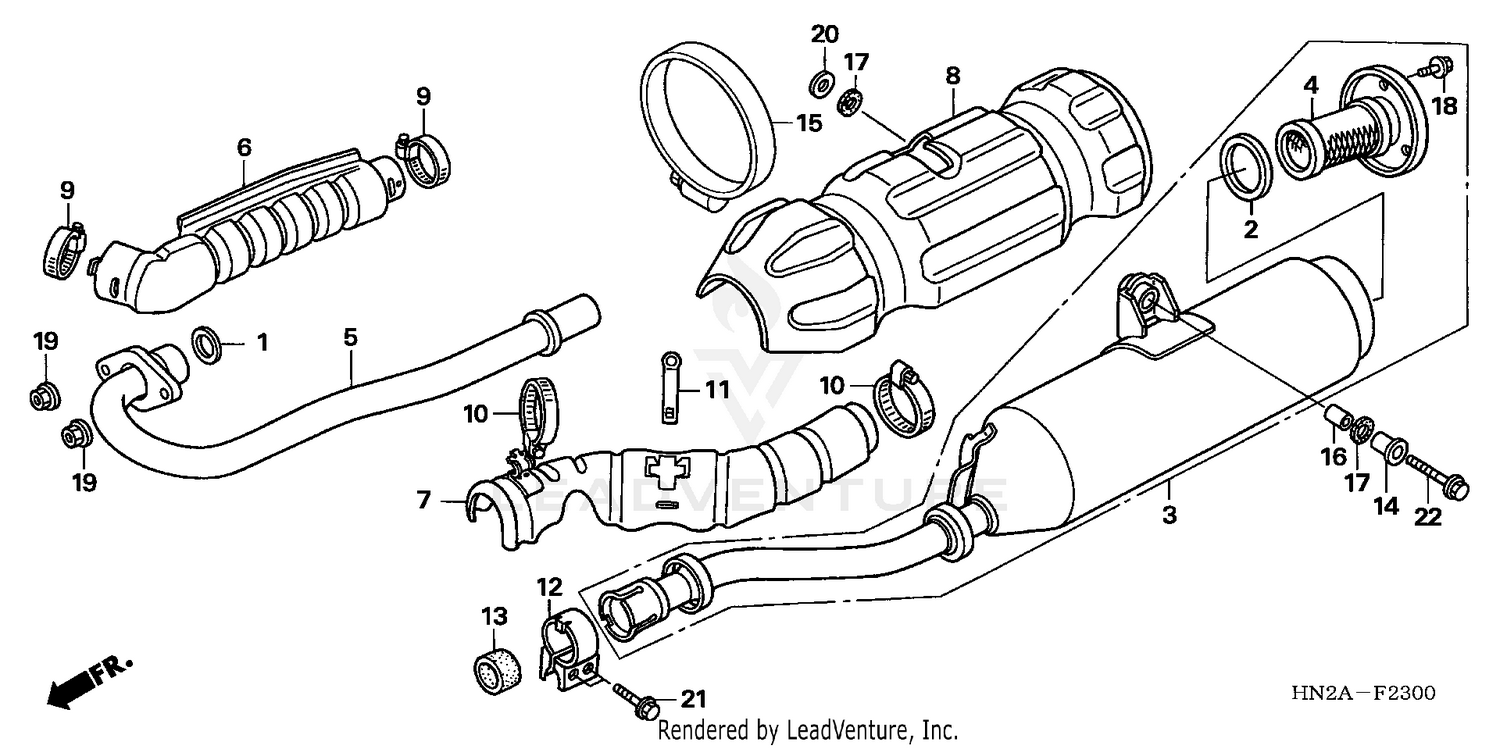

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MN4-920
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, MUFFLER
18292-MV4-000
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER ASSY.
18300-HN2-A60
|
$407.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARRESTER, SPARK
18317-HN2-A60
|
$85.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, EX.
18320-HN2-A20
|
$88.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, EX.
18320-HN2-A60
Superseded by 18320-HN2-A20
|
$88.64 | ||
|
Unavailable |
|||
|
#6
COVER, EX. PIPE
18321-HN2-A20
|
$41.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, HEAT
18322-HN2-A20
|
$52.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, MUFFLER
18323-HP0-A00
|
$144.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, EX. PIPE COVER
18325-HN2-000
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, HEAT PROTECTOR
18326-HN2-000
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, HEAT PROTECTOR (57)
18329-HP0-A00
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, MUFFLER
18373-HA7-671
|
$24.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER
18391-HM7-A00
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, MUFFLER MOUNTING
18422-HN2-000
|
$43.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, MUFFLER COVER (89-140MM)
19084-HP0-A50
Superseded by 19084-HR6-B00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, MUFFLER MOUNTING
50608-HP0-A00
|
$15.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MUFFLER MOUNTING SIDE
50609-HN2-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90301-HM8-000
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (10MM)
90501-HN1-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X35)
95701-08035-08
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X50)
95701-10050-08
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
