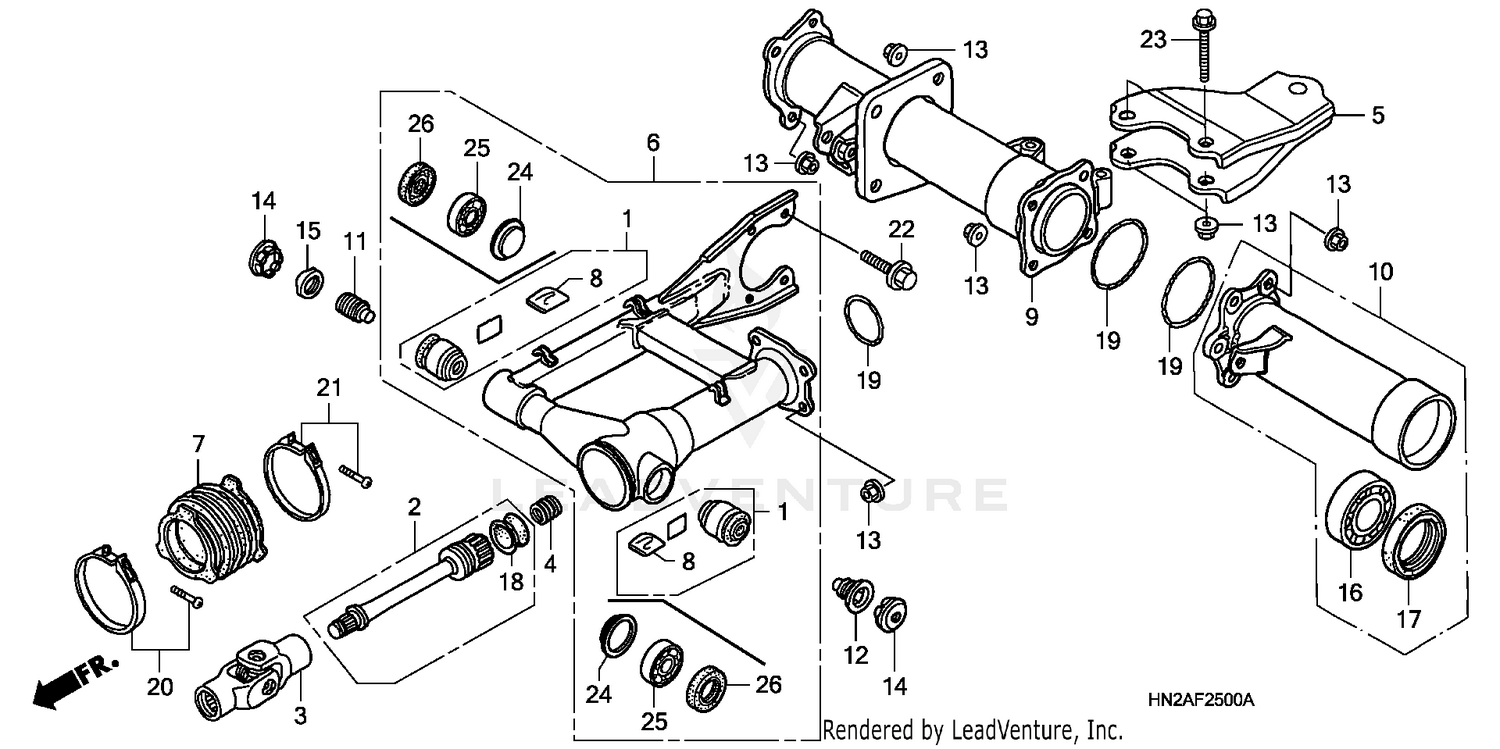

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
SHAFT ASSY., PROPELLER
40200-HP0-A00
|
$78.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, YOKE
40210-HN7-010
|
$67.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PROPELLER SHAFT
40215-HN0-671
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
HITCH, TRAILER
50810-HP0-A00
|
$44.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWINGARM ASSY., RR.
52100-HP0-A50
|
$368.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT, JOINT
52101-HM7-000
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, R. HOUSING
52210-HP0-A00
|
$619.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE ASSY., L. HOUSING
52300-HN2-000
|
$681.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT A, PIVOT
90121-HM5-930
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT B, PIVOT
90122-HM5-930
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, LOCK NUT
90312-HM5-670
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SWINGARM PIVOT LOCK
90355-469-000
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (32X58X13UU)
91055-HN5-681
|
$22.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (42X58X10) (ARAI)
91255-HA0-681
|
$23.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL A, RUBBER
91302-HM7-003
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (75X3.2) (NOK)
91320-HM7-702
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, AIR CLEANER CONNECTING TUBE (74)
95018-74250
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, AIR CLEANER CONNECTING TUBE (90)
95018-90250
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X20)
95701-10020-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X60)
95701-10060-00
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, SWINGARM GREASE
52112-MA1-300
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, ANGULAR (7203)
91066-HC4-004
|
$40.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (26X40X5) (NOK)
91268-HN0-A01
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
