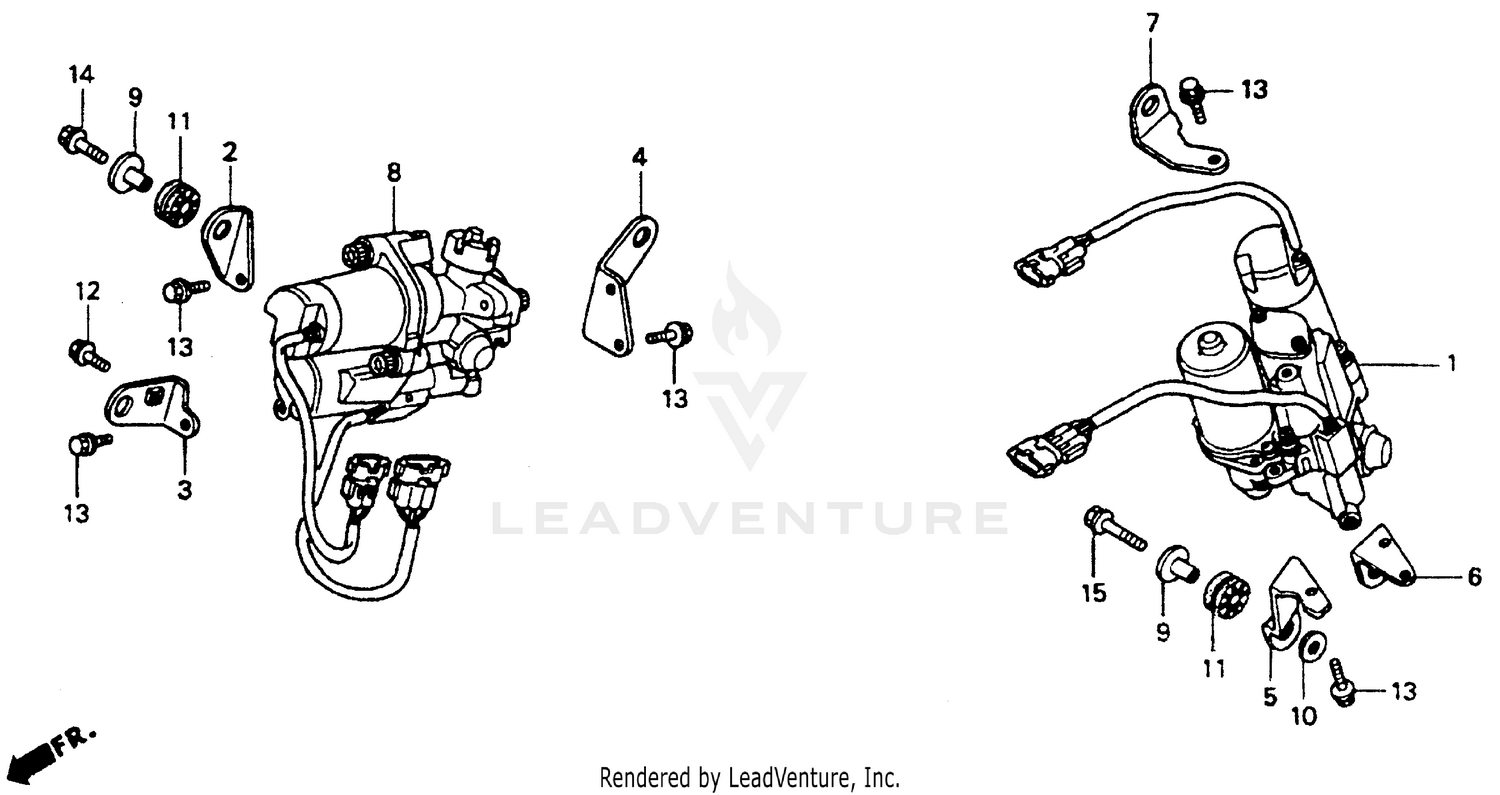

Abs Modulator 1100a Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MODULATOR ASSY., RR. ABS (NISSIN)
57100-MY3-782
|
$2,364.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, FR. MODULATOR (A)
57401-MY3-780
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FR. MODULATOR (B)
57402-MY3-780
|
$17.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, FR. MODULATOR (C)
57403-MY3-780
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, RR. MODULATOR (A)
57406-MY3-780
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, RR. MODULATOR (B)
57407-MY3-780
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, RR. MODULATOR (C)
57408-MY3-780
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
MODULATOR ASSY., FR. ABS (NISSIN)
57600-MY3-782
|
$2,416.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEAT SETTING
77302-124-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, TAILLIGHT SETTING
84703-425-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
