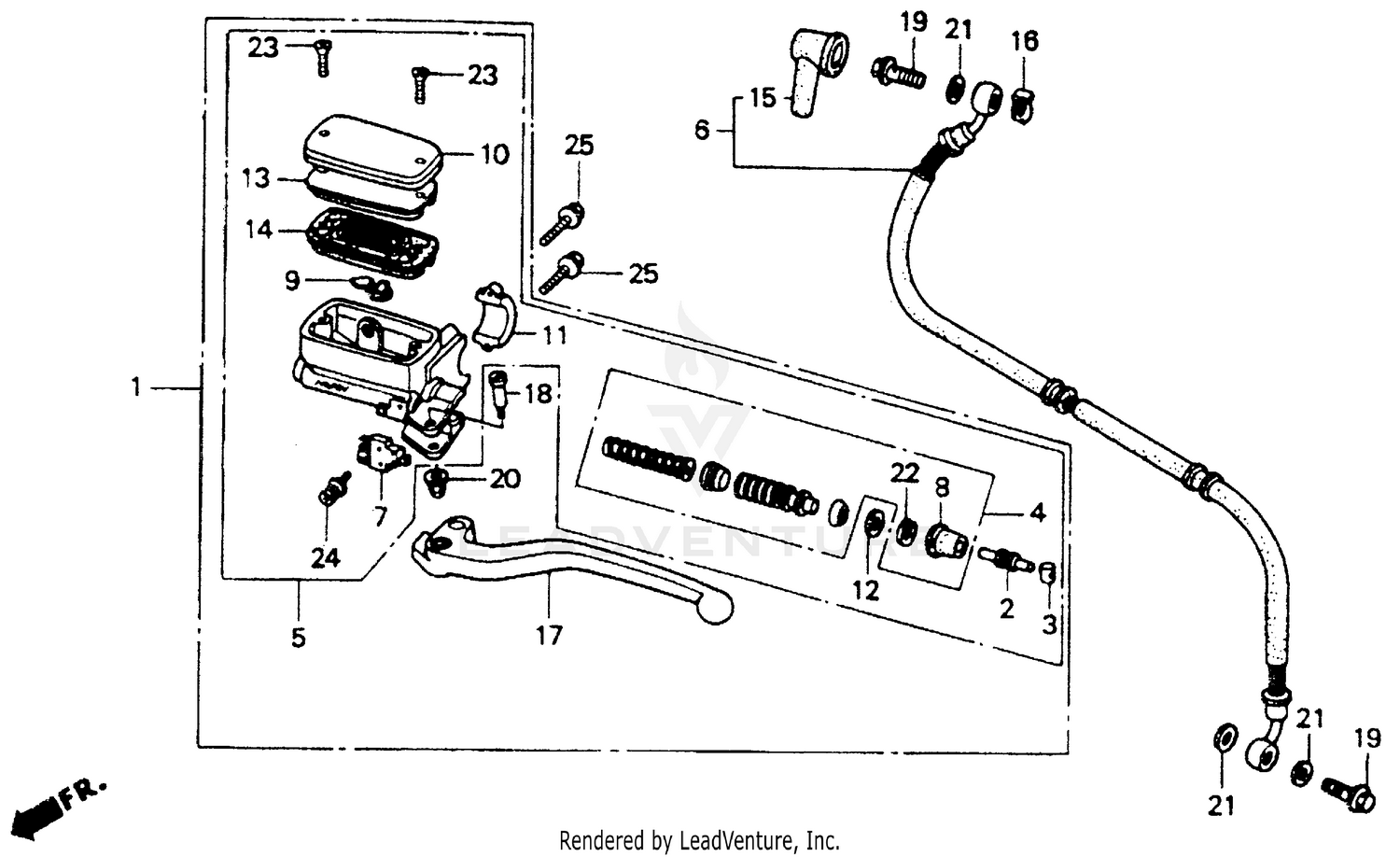

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
ROD, PUSH
22884-MB0-006
|
$23.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
22885-MB0-006
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON SET, CLUTCH MASTER CYLINDER
22886-MB0-305
|
$86.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)
22890-MZ9-305
|
$348.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, CLUTCH (NOT AVAILABLE)
22900-MT3-000
|
$80.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-006
Superseded by 45513-MM5-016
|
$25.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$25.98 | ||
|
Unavailable |
|||
|
#11
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, STOPPER
45518-MB0-006
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, MASTER CYLINDER
45522-422-000
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, OIL BOLT
45535-MT3-010
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, L. HANDLEBAR
53178-KE8-006
|
$28.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Unavailable |
|||
|
#20
NUT, CAP (6MM)
90201-415-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (INNER) (18MM)
90651-377-003
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
