1994 Honda ST1100 ABS Front Cover OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

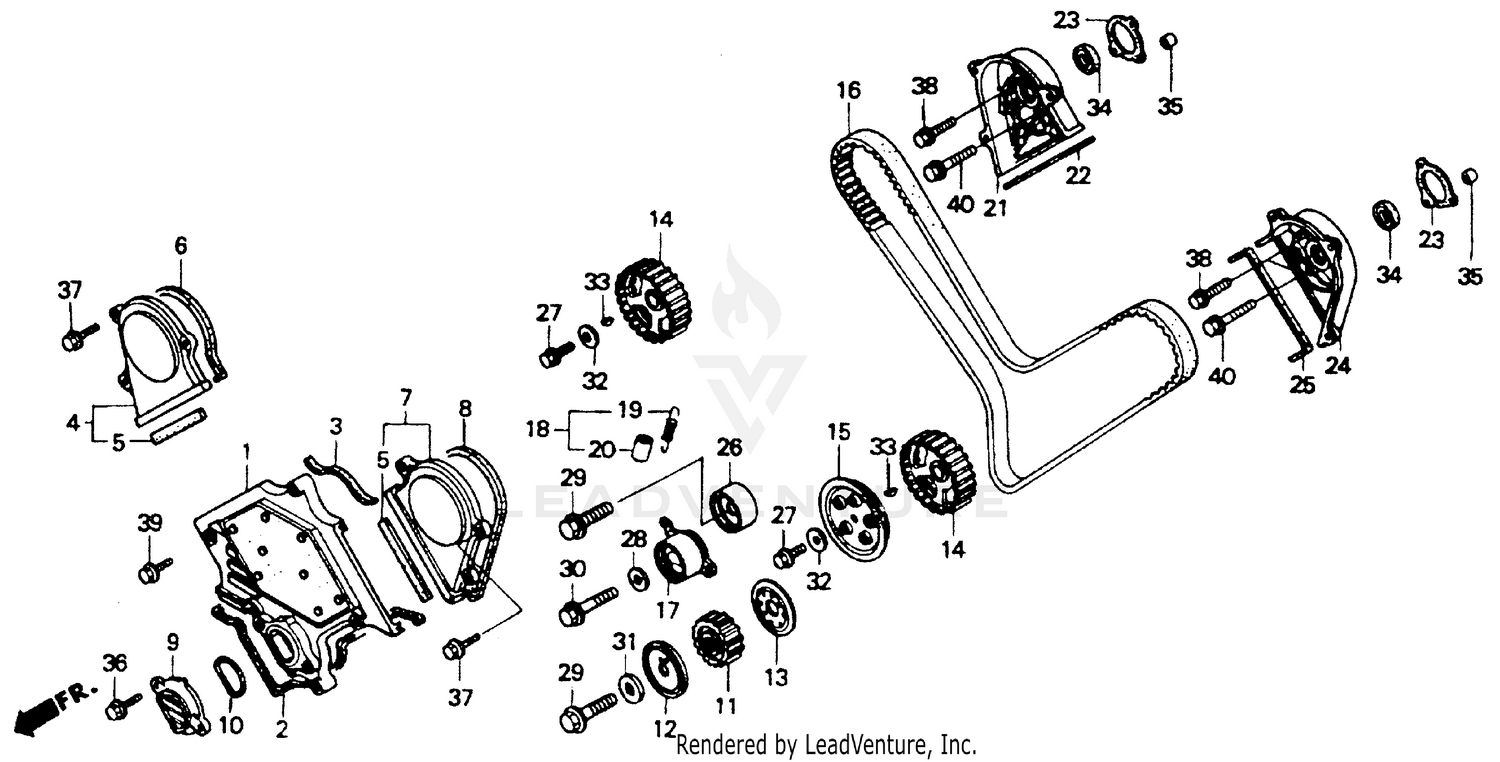

Front Cover Diagram

Item MSRP Qty
#1 COVER, MAIN
11520-MT3-000
 $124.42
Available to order.
Add to View Price
#2 GASKET, FR. MAIN COVER
11524-MT3-000
 $48.85
Available to order.
Add to View Price
#3 GASKET B, FR. MAIN COVER
11525-MT3-000
 $7.48
Available to order.
Add to View Price
#4 COVER, R. FR.
11530-MT3-000
 $41.90
Available to order.
Add to View Price
#5 RUBBER, FR. COVER
11533-MT3-300
 $11.48
Available to order.
Add to View Price
#6 GASKET, R. FR. COVER
11535-MAJ-G20
 $14.67
Available to order.
Add to View Price
#6 GASKET, R. FR. COVER
11535-MT3-000
Superseded by 11535-MAJ-G20
 $14.67
Unavailable
#7 COVER, L. FR.
11540-MT3-000
 $43.79
Available to order.
Add to View Price
#8 GASKET, L. FR. COVER
11545-MAJ-G20
 $15.48
Available to order.
Add to View Price
#8 GASKET, L. FR. COVER
11545-MT3-000
Superseded by 11545-MAJ-G20
 $15.48
Unavailable
#9 COVER, TIMING
11551-MT3-000
 $19.20
Available to order.
Add to View Price
#10 GASKET, TIMING COVER
11554-MT3-003
 $4.93
Available to order.
Add to View Price
#11 PULLEY, TIMING BELT DRIVE
13621-PM3-013
 $66.06
Available to order.
Add to View Price
#12 PLATE A, TIMING BELT GUIDE
13622-MT3-000
 $11.01
Available to order.
Add to View Price
#13 PLATE B, TIMING BELT GUIDE
13623-MT3-000
 $9.20
Available to order.
Add to View Price
#14 PULLEY, TIMING BELT DRIVEN
14211-MT3-003
 $88.80
Available to order.
Add to View Price
#15 GUIDE, TIMING BELT DRIVEN PULLEY
14212-MT3-000
 $26.43
Available to order.
Add to View Price
#16 BELT, TIMING
14401-MT3-004
 $190.95
Available to order.
Add to View Price
#17 TENSIONER, TIMING BELT
14510-MT3-003
 $165.09
Available to order.
Add to View Price
#18 SPRING ASSY., TENSIONER
14513-MT3-000
 $9.92
Available to order.
Add to View Price
#20 BOOT, SPRING
14515-PD2-000
 $3.47
Available to order.
Add to View Price
#21 HOLDER, R. CAMSHAFT
14521-MT3-300
 $224.18
Available to order.
Add to View Price
#22 GASKET, R. CAMSHAFT REDUCTION HOLDER
14523-MT3-300
 $7.64
Available to order.
Add to View Price
#23 GASKET, CAMSHAFT REDUCTION HOLDER
14525-MY3-000
 $6.84
Available to order.
Add to View Price
#24 HOLDER, L. CAMSHAFT
14531-MT3-300
 $224.18
Available to order.
Add to View Price
#25 GASKET, L. CAMSHAFT REDUCTION HOLDER
14533-MT3-300
 $5.46
Available to order.
Add to View Price
#26 IDLER, TIMING BELT
14560-MT3-003
 $124.61
Available to order.
Add to View Price
#27 BOLT, FLANGE (8X20)
90006-MN5-000
 $5.09
Available to order.
Add to View Price
#28 WASHER (10MM)
90017-PE0-000
 $5.43
Available to order.
Add to View Price
#29 BOLT, FLANGE (12X45)
90024-MT3-000
 $13.43
Available to order.
Add to View Price
#30 BOLT, FLANGE (10X60)
90107-ML0-700
 $5.81
Available to order.
Add to View Price
#31 WASHER (12.5X35X5)
90401-MT3-000
 $17.37
Available to order.
Add to View Price
#32 WASHER, SPECIAL (28X8.5X4.0)
90435-611-000
 $8.70
Available to order.
Add to View Price
#33 KEY (25.4X13)
90741-657-000
 $7.39
Available to order.
Add to View Price
#34 OIL SEAL (25X41X7) (ARAI)
91207-ME5-003
 $15.52
Available to order.
Add to View Price
#35 PIN A, DOWEL (8X10)
94301-08100
 $2.25
Available to order.
Add to View Price
#36 BOLT, FLANGE (6X16)
95701-06016-07
 $1.64
Available to order.
Add to View Price
#37 BOLT, SPECIAL FLANGE (6X24)
90016-ML4-610
 $2.45
Available to order.
Add to View Price
#38 BOLT, FLANGE (6X28)
95701-06028-00
 $1.81
Available to order.
Add to View Price
#39 BOLT, FLANGE (6X30)
95701-06030-07
 $1.88
Available to order.
Add to View Price
#40 BOLT, FLANGE (6X32)
95701-06032-00
 $1.88
Available to order.
Add to View Price
