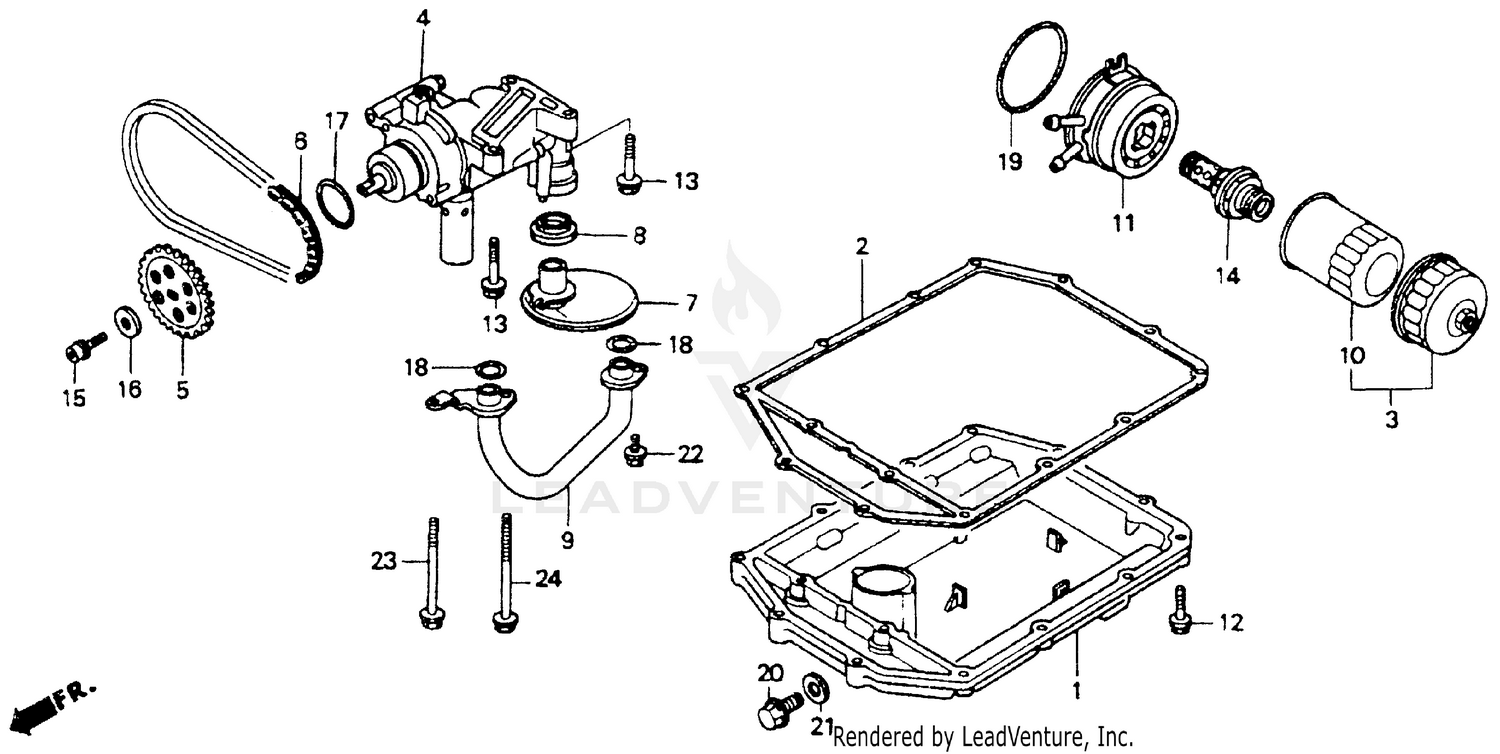

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11211-MT3-000
|
$256.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, OIL PAN
11214-MY3-000
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER SET, OIL
15010-MW0-000
Superseded by 15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
PUMP ASSY., OIL
15100-MT3-000
|
$265.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, OIL PUMP DRIVEN (27T)
15134-MR1-000
|
$47.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN, OIL PUMP DRIVE
15140-MT3-003
|
$52.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
STRAINER, OIL
15153-MT3-000
|
$37.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, OIL STRAINER
15154-MM5-000
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, OIL
15313-MT3-000
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
FILTER, OIL (WAKO FILTER)
15410-MM9-013
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
COOLER, ENGINE OIL (DENSO)
15700-MT3-003
|
$386.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28) (NSHF)
90001-GHB-680
Superseded by 90004-GHB-680
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28) (NSHF)
90004-GHB-680
|
$3.99 | ||
|
Unavailable |
|||
|
#13
BOLT, KNOCK (6X30)
90014-ME5-000
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, OIL COOLER
90019-MR7-003
|
$49.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X14)
90091-KV3-700
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (6X2.3)
90488-MB0-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (31X2.5)
91301-PJ7-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (14.8X2.2)
91313-MG7-004
|
$4.41 | ||
|
Unavailable |
|||
|
#19
O-RING (62.4X3.1)
91316-PE7-730
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X80)
95701-06080-00
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X90)
95701-06090-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
