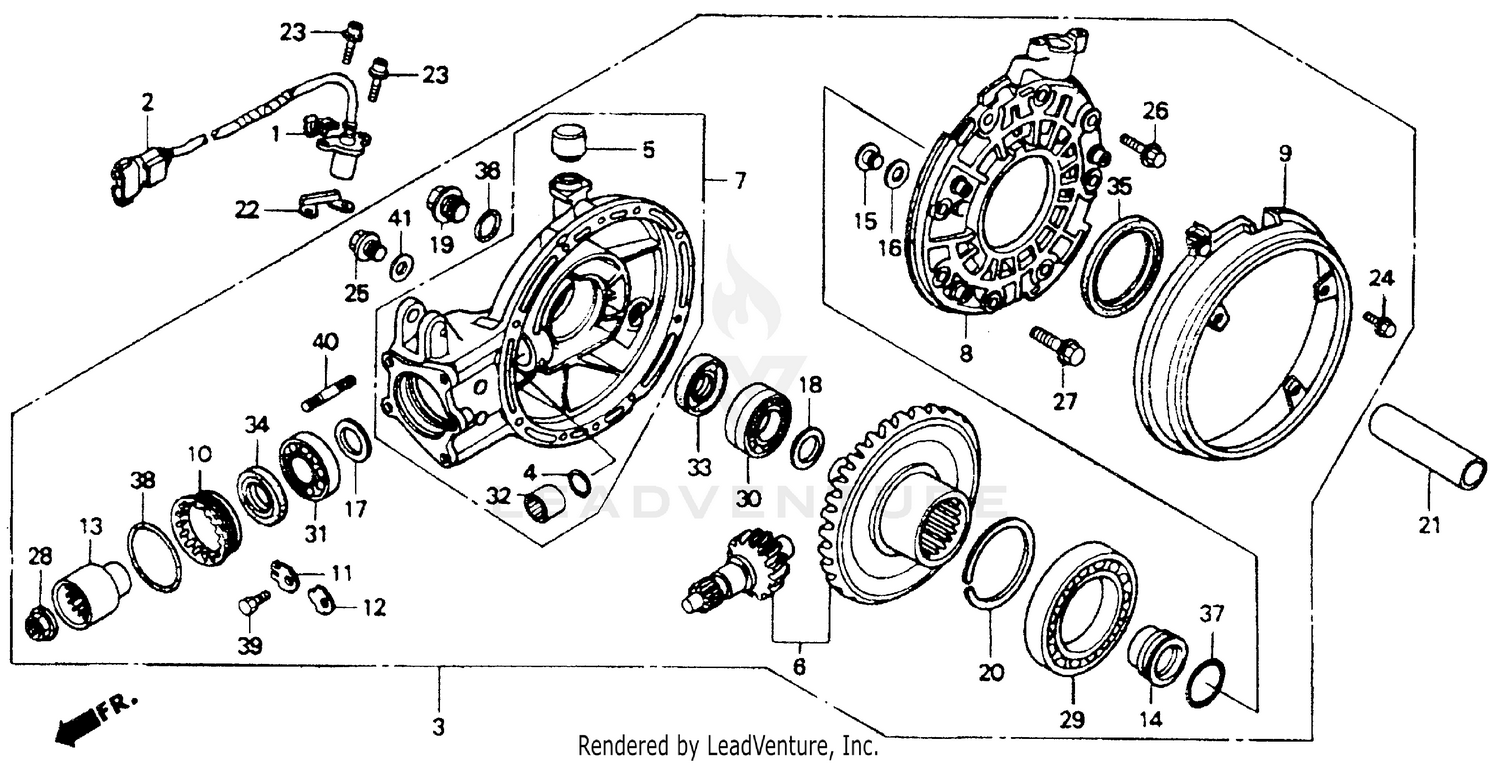

Final Driven Gear 1100a Diagram

Item MSRP Qty
#1 CLIP B, TUBE
16106-KW7-900
 $3.34
Available to order.
Add to View Price
#2 SENSOR, RR. WHEEL SPEED
38510-MAJ-780
Superseded by 38510-MAJ-781
 $252.14
Available to order.
Add to View Price
#2 SENSOR, RR. WHEEL SPEED
38510-MAJ-781
 $252.14
Unavailable
#3 GEAR ASSY., FINAL
41300-MY3-780
Superseded by 41300-MY3-781
 $1,999.72
Available to order.
Add to View Price
#4 RING, STOPPER
41305-MB4-770
 $6.15
Available to order.
Add to View Price
#5 CAP, BREATHER
41306-MB0-010
Superseded by 41306-MB0-020
 $10.70
Available to order.
Add to View Price
#5 CAP, BREATHER
41306-MB0-020
 $10.70
Unavailable
#6 GEAR SET, FINAL
41310-MT3-305
 $453.16
Available to order.
Add to View Price
#7 CASE SET, FINAL
41311-MT3-305
Superseded by 41311-MT3-315
 $1,201.82
Available to order.
Add to View Price
#8 COVER, GEAR CASE
41321-MY3-780
 $185.53
Available to order.
Add to View Price
#9 PLATE, DUST GUARD
41324-MY3-780
 $33.51
Available to order.
Add to View Price
#10 RETAINER, BEARING
41331-MN5-000
 $126.01
Available to order.
Add to View Price
#11 LOCK B, BEARING ADJ.
41333-415-000
 $2.75
Available to order.
Add to View Price
#12 LOCK A, BEARING ADJ.
41332-415-000
 $2.75
Available to order.
Add to View Price
#13 JOINT, PINION
41410-MN5-000
 $72.32
Available to order.
Add to View Price
#14 HOLDER, O-RING
41433-MG9-000
 $15.58
Available to order.
Add to View Price
#15 PIN, RING GEAR STOPPER
41436-MB0-310
 $34.86
Available to order.
Add to View Price
#16 SHIM A, STOPPER PIN (0.10)
41437-MB0-310
 $6.18
Available to order.
Add to View Price
#16 SHIM B, STOPPER PIN (0.15)
41438-MB0-310
 $6.18
Available to order.
Add to View Price
#17 SHIM A, PINION GEAR (1.32)
41450-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM B, PINION GEAR (1.35)
41451-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM C, PINION GEAR (1.38)
41452-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM D, PINION GEAR (1.41)
41453-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM E, PINION GEAR (1.44)
41454-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM F, PINION GEAR (1.47)
41455-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM G, PINION GEAR (1.50)
41456-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM H, PINION GEAR (1.53)
41457-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM I, PINION GEAR (1.56)
41458-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM J, PINION GEAR (1.59)
41459-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM K, PINION GEAR (1.62)
41460-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM L, PINION GEAR (1.65)
41461-MT3-610
 $8.10
Available to order.
Add to View Price
#17 SHIM M, PINION GEAR (1.68)
41462-MT3-610
 $8.10
Available to order.
Add to View Price
#18 WASHER, SPECIAL (35X40)
41510-MB0-003
 $13.40
Available to order.
Add to View Price
#19 CAP, GEAR CASE OIL
41511-ME5-000
 $12.29
Available to order.
Add to View Price
#20 SHIM A, RING GEAR (1.82)
41530-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM B, RING GEAR (1.85)
41531-MT3-610
 $25.93
Available to order.
Add to View Price
#20 SHIM C, RING GEAR (1.88)
41532-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM D, RING GEAR (1.91)
41533-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM E, RING GEAR (1.94)
41534-MT3-610
 $25.93
Available to order.
Add to View Price
#20 SHIM F, RING GEAR (1.97)
41535-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM G, RING GEAR (2.00)
41536-MT3-610
 $25.93
Available to order.
Add to View Price
#20 SHIM H, RING GEAR (2.03)
41537-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM I, RING GEAR (2.06)
41538-MT3-610
 $25.93
Available to order.
Add to View Price
#20 SHIM J, RING GEAR (2.09)
41539-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM K, RING GEAR (2.12)
41540-MT3-610
 $25.93
Available to order.
Add to View Price
#20 SHIM L, RING GEAR (2.15)
41541-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM M, RING GEAR (2.18)
41542-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM N, RING GEAR (2.21)
41543-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM O, RING GEAR (2.24)
41544-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM P, RING GEAR (2.27)
41545-MT3-610
 $24.80
Available to order.
Add to View Price
#20 SHIM Q, RING GEAR (2.30)
41546-MT3-610
 $24.80
Available to order.
Add to View Price
#21 COLLAR, RR. DISTANCE (B)
42625-MT3-000
 $26.04
Available to order.
Add to View Price
#22 SHIM, WHEEL SENSOR
57451-MY3-780
 $21.54
Available to order.
Add to View Price
#23 BOLT, FLANGE SOCKET (6X16)
90010-MJ6-000
 $3.60
Available to order.
Add to View Price
#24 BOLT, FLANGE (6X12) (CT200)
90013-883-000
 $1.87
Available to order.
Add to View Price
#25 BOLT, PLUG (14MM)
90081-MC7-000
 $12.72
Available to order.
Add to View Price
#26 BOLT, FLANGE (8X27)
90133-MB0-000
 $9.74
Available to order.
Add to View Price
#27 BOLT, FLANGE (10X35)
90134-HA0-000
 $9.47
Available to order.
Add to View Price
#28 NUT, HEX. (16MM)
90381-MT3-000
 $8.69
Available to order.
Add to View Price
#29 BEARING, RADIAL BALL (65X100X11) (TOYO)
91051-MN5-003
 $115.58
Available to order.
Add to View Price
#30 BEARING, RADIAL BALL (35X62X18) (TOYO)
91052-MN5-003
 $64.76
Available to order.
Add to View Price
#31 BEARING, RADIAL BALL (QJ3/28V1)
91061-MT3-003
 $78.67
Available to order.
Add to View Price
#32 BEARING, NEEDLE (20X35X18)
91062-MG9-013
 $39.20
Available to order.
Add to View Price
#33 OIL SEAL (35X54X8) (NOK)
91261-MY3-003
 $15.61
Available to order.
Add to View Price
#34 OIL SEAL (39X56X7) (NOK)
91262-MY3-003
 $15.61
Available to order.
Add to View Price
#35 OIL SEAL (65X85X7) (NOK)
91265-MY3-003
 $19.52
Available to order.
Add to View Price
#36 O-RING (30.8MM)
91302-001-020
 $4.51
Available to order.
Add to View Price
#37 O-RING (39.5X2.4) (ARAI)
91356-MG9-003
 $3.71
Available to order.
Add to View Price
#37 O-RING (39.5X2.4) (ARAI)
91356-MG9-004
Superseded by 91356-MG9-003
 $3.71
Unavailable
#38 O-RING (64.5X3.5)
91359-MG9-003
 $5.44
Available to order.
Add to View Price
#39 BOLT, HEX. (6X12)
92101-06012-0A
 $1.42
Available to order.
Add to View Price
#40 BOLT, STUD (10X32)
92900-10032-0E
 $4.02
Available to order.
Add to View Price
#41 WASHER, DRAIN PLUG (14MM)
94109-14000
 $0.63
Available to order.
Add to View Price
