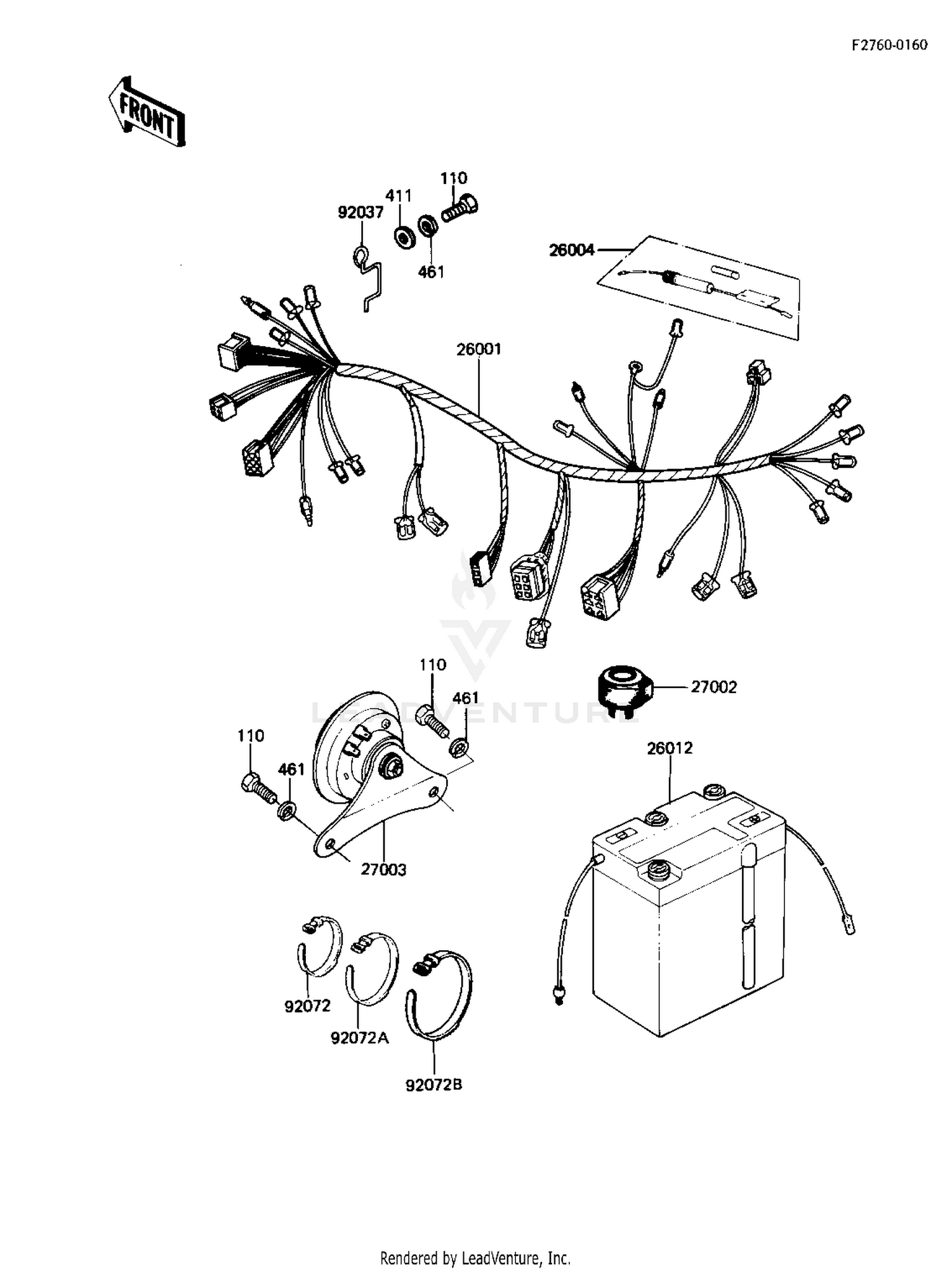

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#26001
HARNESS,MAIN
26001-1382
|
$78.57 | ||
|
Available to order. Add to View Price |
|||
|
#26004
FUSE ASSY
26004-010
|
$15.88 | ||
|
Available to order. Add to View Price |
|||
|
#26012
FB BAT 6N6-1C
26012-1047
|
$39.45 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-TURN SIGNAL
27002-013
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1031
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-203
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
