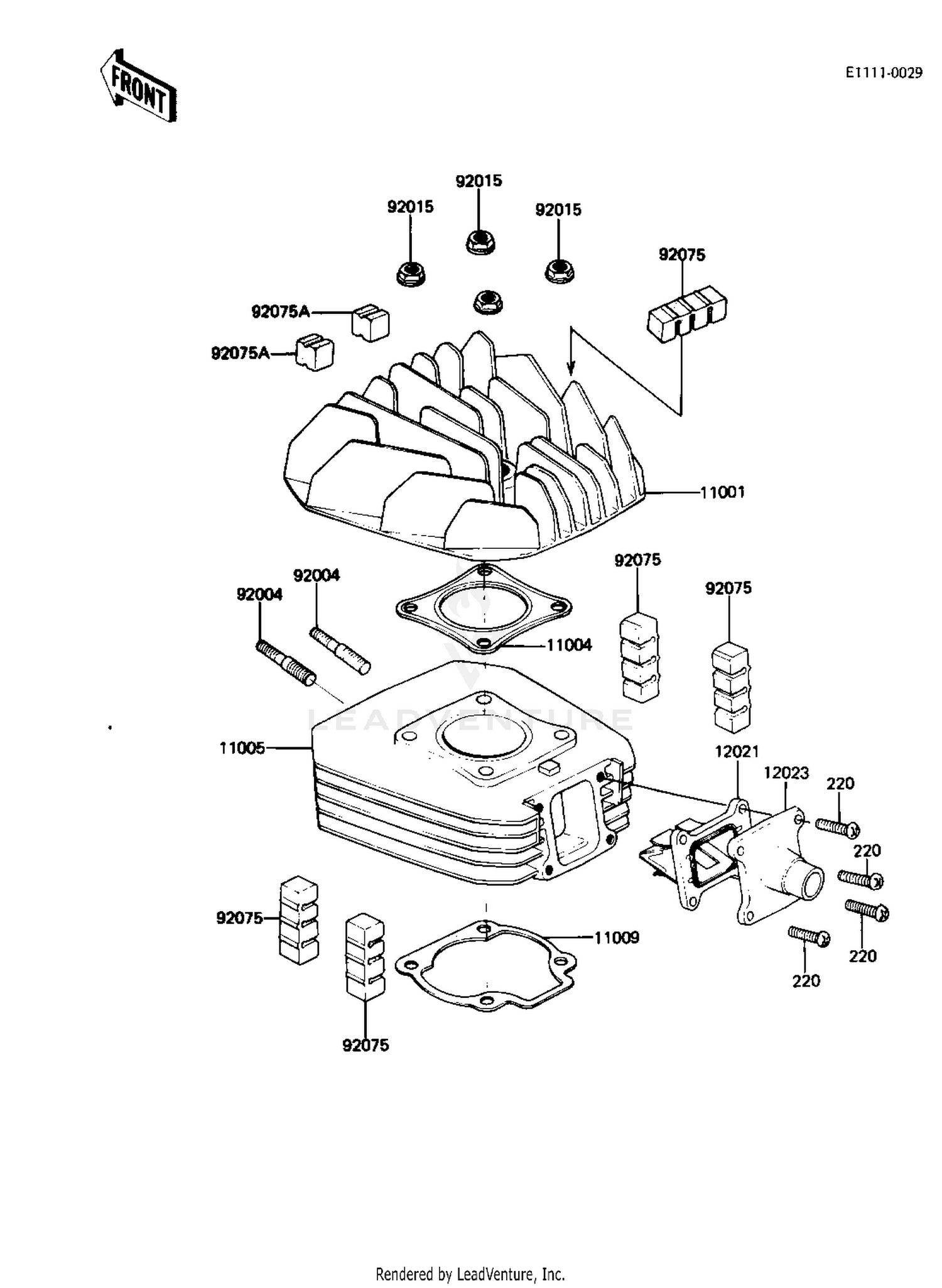

Cylinder Head/cylinder/reed Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001
HEAD-CYLINDER,F.BLACK
11001-1069
|
$162.59 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD
11004-1032
Superseded by 11004-1180
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE,F.BLA
11005-1096
|
$405.29 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER BASE
11060-1171
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1009
|
$67.54 | ||
|
Available to order. Add to View Price |
|||
|
#12023
HOLDER-VALVE,REED
12023-5004
|
$34.21 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,6X22.5
92004-029
Superseded by 92004-1119
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CYLINDER
92075-1268
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1339
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
