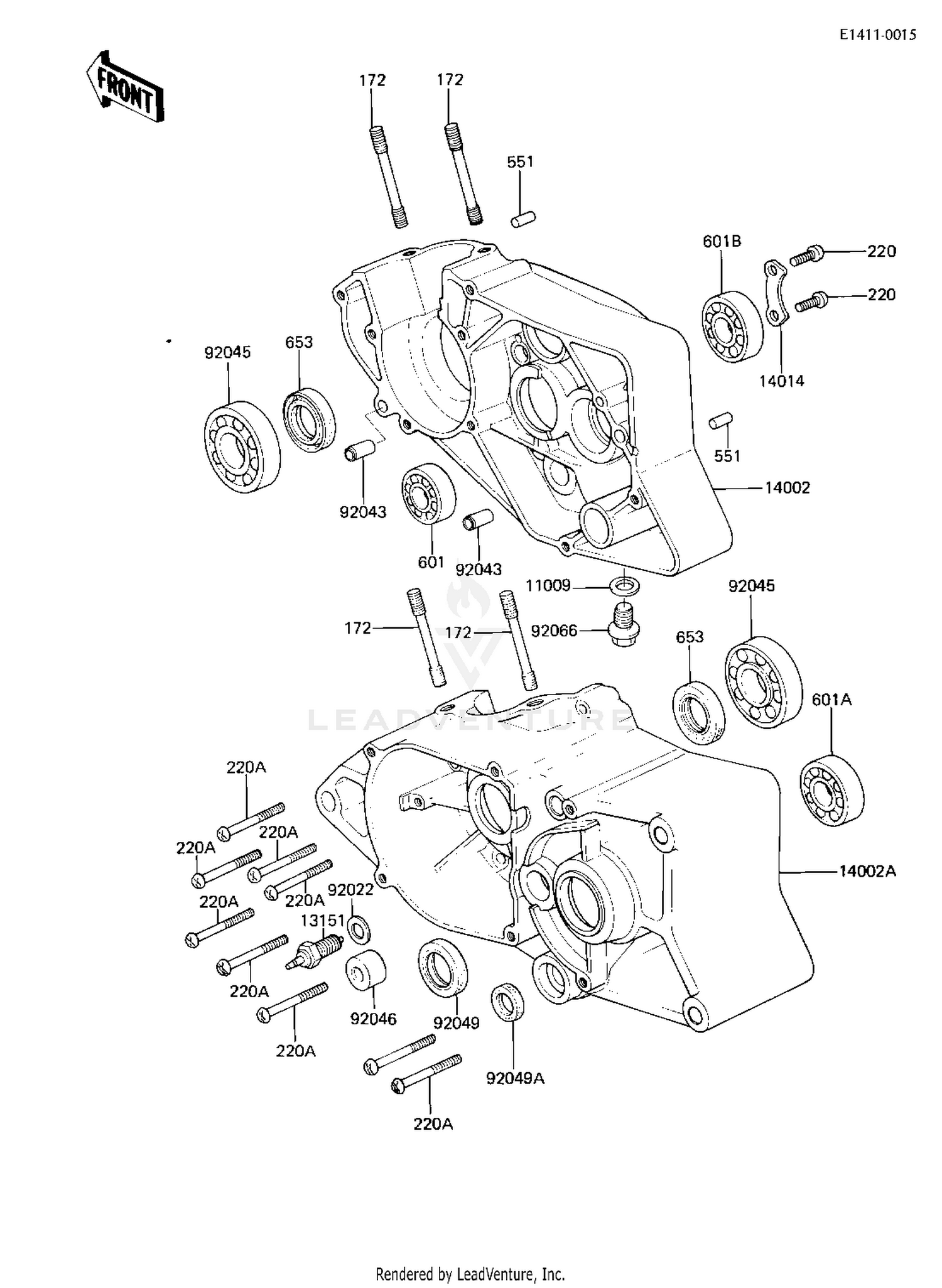

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#13151
SWITCH-COMP
13151-1008
Superseded by 13151-1085
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#14002
CRANKCASE,RH
14002-1122
|
$153.95 | ||
|
Available to order. Add to View Price |
|||
|
#14002A
CRANKCASE,LH
14002-1188
|
$153.95 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1014
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Unavailable |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,R-6304C3
92045-1059
|
$29.70 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BK1312
92046-1034
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SC22325
92049-1048
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1241
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD
172G0890
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,6X12
551A0612
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6201C3
601B6201
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING BALL #6203
601B6203
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#601B
BALL BEARING,#6203ZC3
601B6203Z
|
$26.82 | ||
|
Available to order. Add to View Price |
|||
|
#653
OIL SEAL TB20358
653B203508
|
$18.11 | ||
|
Available to order. Add to View Price |
|||
