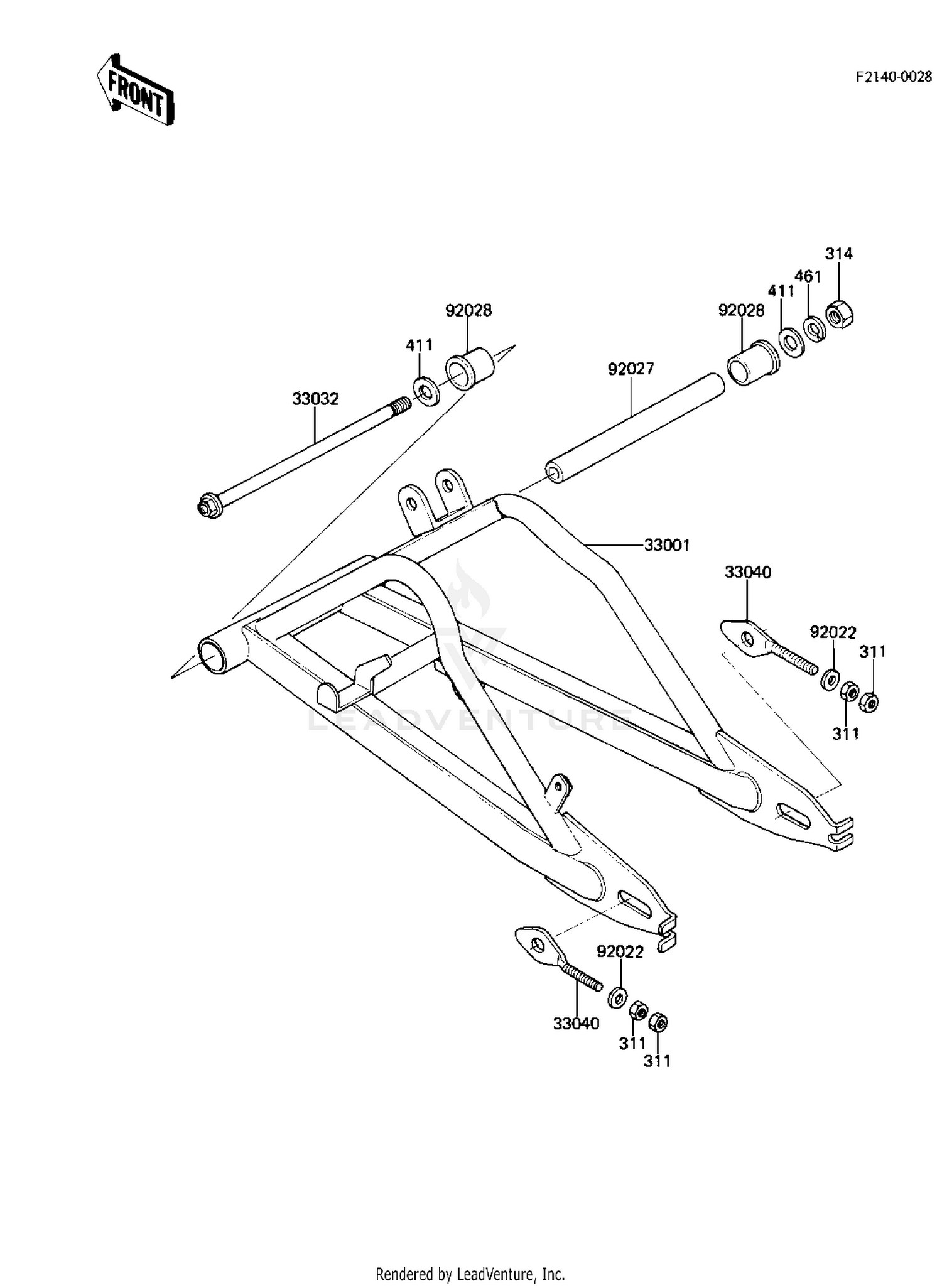

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#33001
ARM-COMP-SWING
33001-1072
|
$192.72 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM,10X21
33032-1018
|
$41.33 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER CHAIN
33040-008
|
$10.11 | ||
|
Unavailable |
|||
|
#92022
WASHER,6.5X16X2
92022-1565
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,12.7X17.3X132.
92027-1309
|
$49.86 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,L=25
92028-1359
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#314
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
