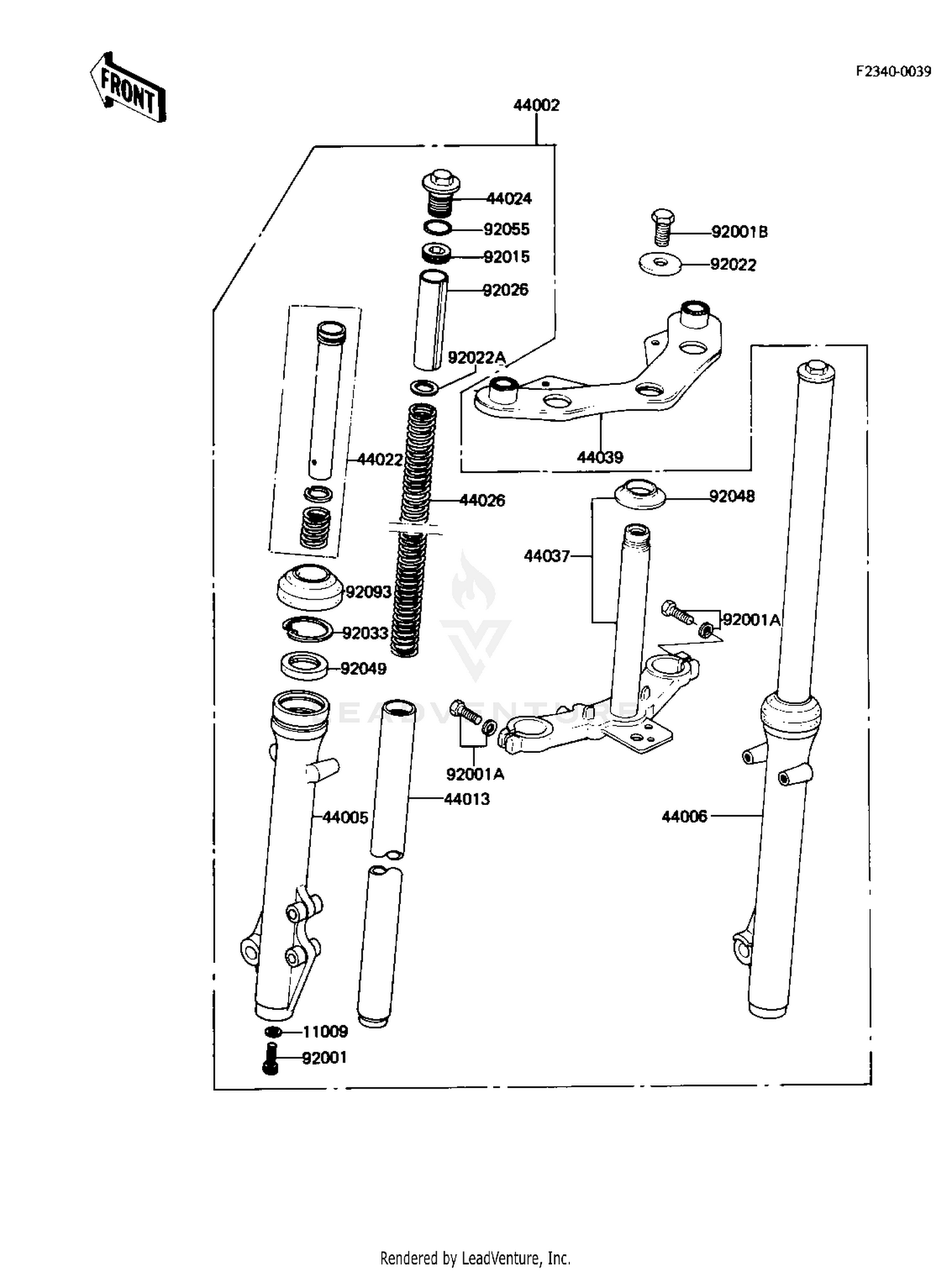

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#44002
FORK-FRONT
44002-1034
|
$760.73 | ||
|
Available to order. Add to View Price |
|||
|
#44005
TUBE,LH,FORK OUTER
44005-1071
|
$164.08 | ||
|
Available to order. Add to View Price |
|||
|
#44006
TUBE,RH,FORK OUTER
44006-1071
|
$164.08 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1063
|
$163.72 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1060
|
$85.25 | ||
|
Available to order. Add to View Price |
|||
|
#44024
CAP-OIL-LOCK
44024-1011
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,L=3
44026-1111
|
$31.33 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1059
|
$176.01 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1037
|
$99.59 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,8X30
92001-1469
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,10X20
92001-1470
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1152
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1267
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1268
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1097
Superseded by 92026-1349
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1003
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,STEERING STEM BEARING
92047-013
Superseded by 92048-0034
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER
92049-1319
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,16MM
92055-1010
Superseded by 670B2016
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,DUST
92093-1061
Superseded by 92093-1263
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
