2017 Kawasaki CONCOURS 14 ABS Crankshaft/piston(s) OEM Parts

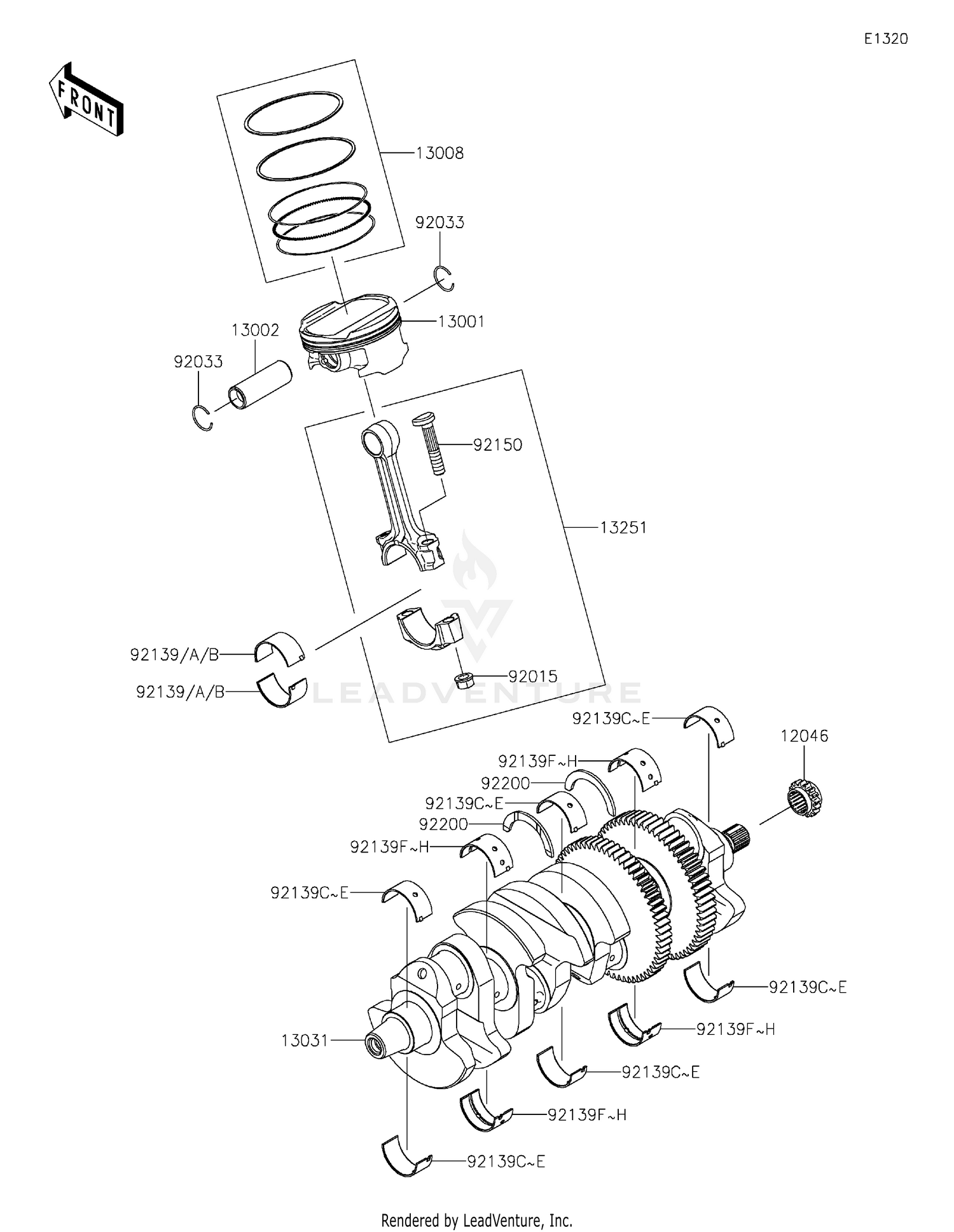

Crankshaft/piston(s) Diagram

Item	MSRP	Qty
#12046 SPROCKET,17T 12046-0052	$38.82
Available to order. Add to View Price
#13001 PISTON-ENGINE 13001-0771	$115.84
Available to order. Add to View Price
#13002 PIN-PISTON 13002-0010	$32.11
Available to order. Add to View Price
#13008 RING-SET-PISTON 13008-0027	$56.90
Available to order. Add to View Price
#13031 CRANKSHAFT-COMP 13031-0098	$1,281.79
Available to order. Add to View Price
#13251 ROD-ASSY-CONNECTIN,II 13251-0025-JJ Superseded by 13251-0025-II	$220.51
Available to order. Add to View Price
#92015 NUT,CONNECTING ROD 92015-1559	$6.02
Available to order. Add to View Price
#92033 RING-SNAP 92033-1207	$2.35
Available to order. Add to View Price
#92139 BUSHING,CON-ROD,BLUE 92139-0129	$22.59
Available to order. Add to View Price
#92139A BUSHING,CON-ROD,BLACK 92139-0130	$22.59
Available to order. Add to View Price
#92139B BUSHING,CON-ROD,BROWN 92139-0131	$22.59
Available to order. Add to View Price
#92139C BUSHING,CRANK #1,BLUE 92139-0132	$22.59
Available to order. Add to View Price
#92139D BUSHING,CRANK #1,BL 92139-0133 Superseded by 92139-1207	$17.94
Unavailable
#92139E BUSHING,CRANK #1,BR 92139-0134 Superseded by 92139-1208	$22.59
Unavailable
#92139F BUSHING,CRANK #2,BLUE 92139-0135	$22.59
Available to order. Add to View Price
#92139G BUSHING,CRANK #2,BLACK 92139-0136 Superseded by 92139-1210	$22.59
Unavailable
#92139H BUSHING,CRANK #2,BROWN 92139-0137 Superseded by 92139-1211	$22.59
Unavailable
#92150 BOLT,CONNECTING ROD,9MM 92150-1362	$16.97
Available to order. Add to View Price
#92200 WASHER,T=2.5 92200-0331	$30.65
Available to order. Add to View Price
