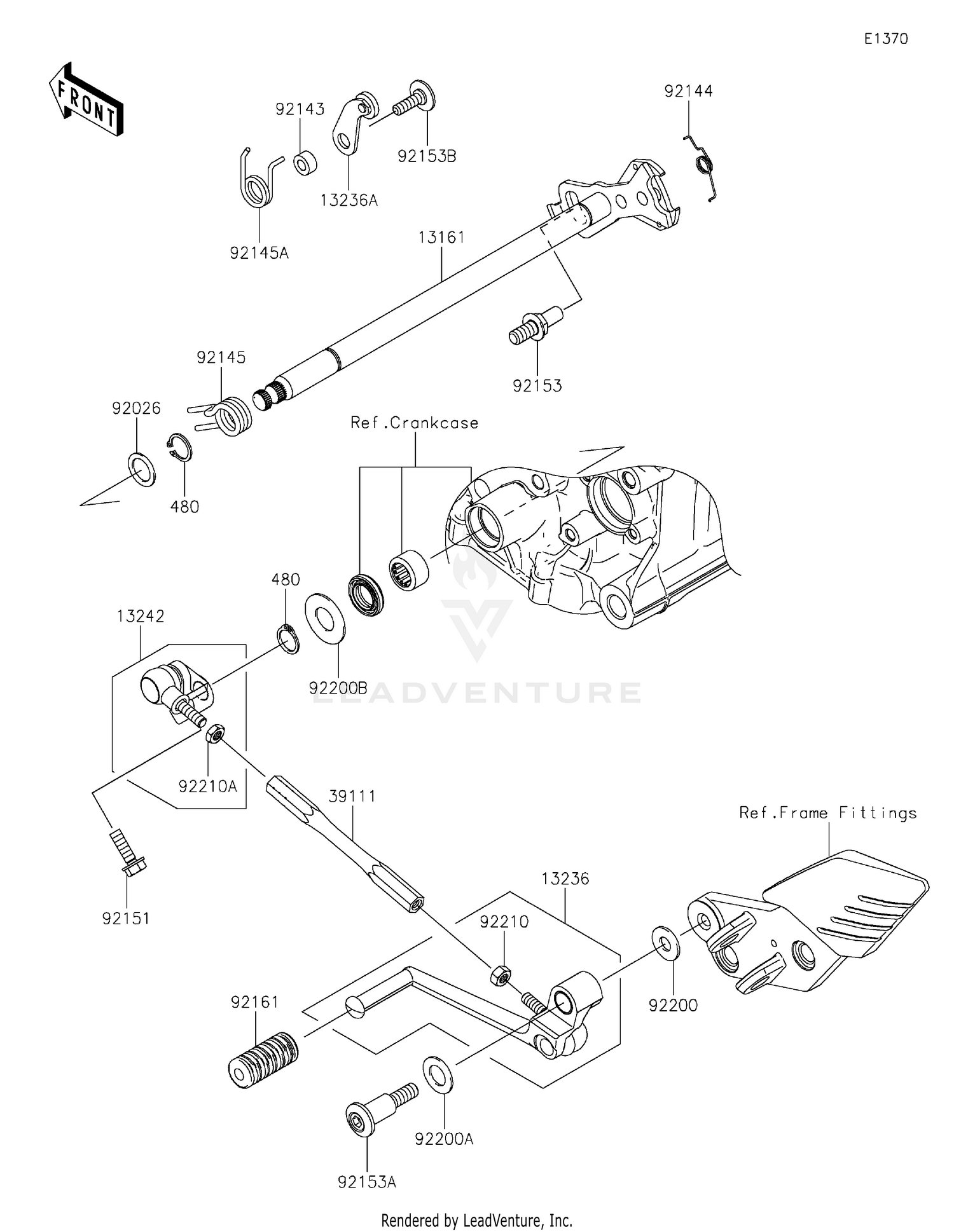

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHAFT
13161-0567
|
$82.71 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,CHANGE PEDAL
13236-0078
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP
13236-1243
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE
13242-0120
|
$62.84 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-0034
|
$42.95 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,14MM
480J1400
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,14X20X1.0
92026-1534
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1595
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1029
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0336
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-0404
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X20
92151-1226
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,RETURN SPRING
92153-0421
Superseded by 92154-1838
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,8X41
92153-0880
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,6X20
92153-1505
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,CHANGE PEDAL
92161-1300
Superseded by 92161-2389
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,8.5X20X1.5
92200-0198
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,12.5X22X1.2
92200-0199
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER
92200-0265
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-1100
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LEFT HANDED,6MM
92210-1101
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
