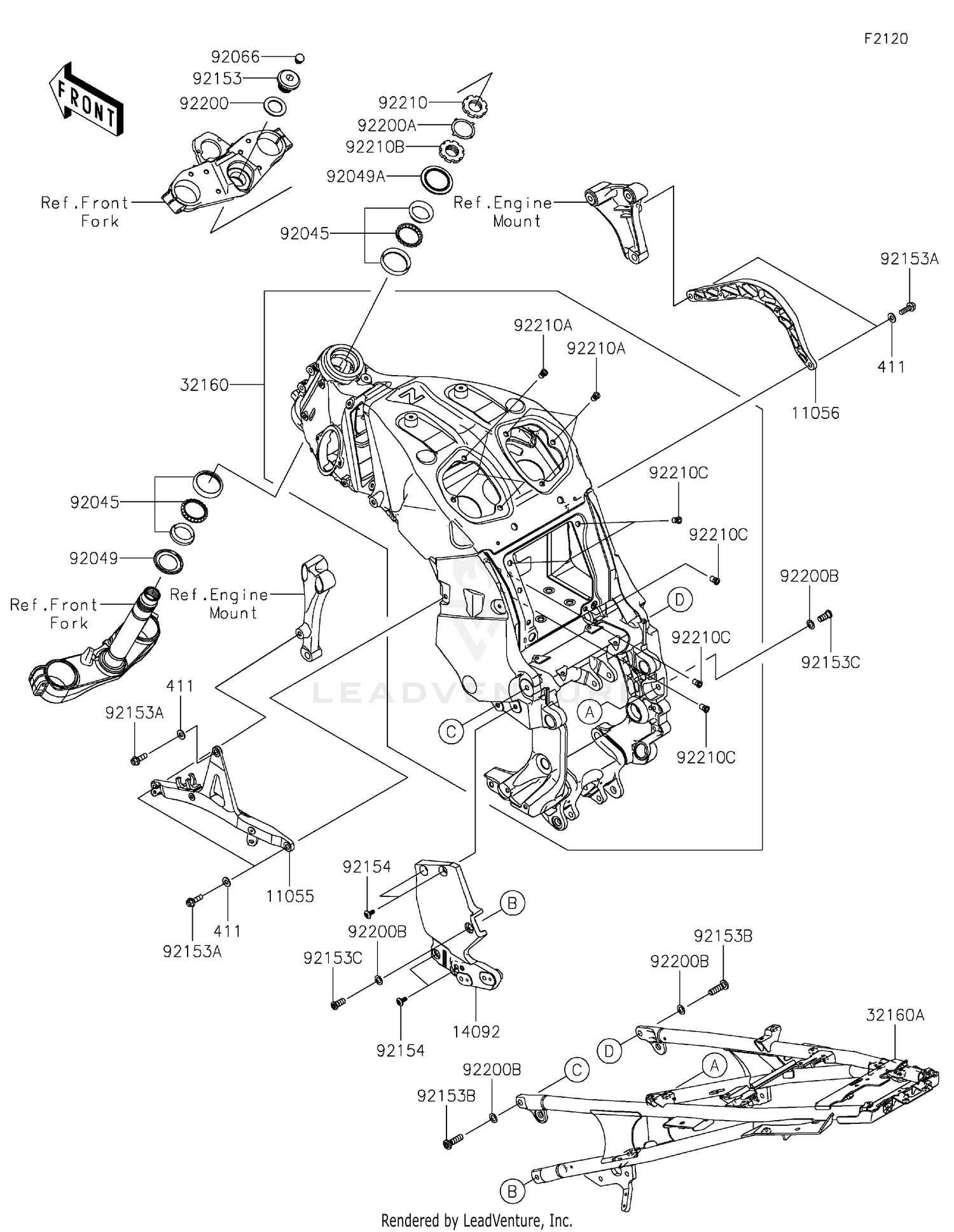

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11055
BRACKET,SUB FRAME,LH
11055-1755
|
$108.25 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET,SUB FRAME,RH
11056-0038
|
$116.93 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,FRONT FRAME SHAFT,BLACK
14092-0089-18R
|
$189.33 | ||
|
Available to order. Add to View Price |
|||
|
#32160
FRAME-COMP,FR
32160-0767
|
$3,044.68 | ||
|
Available to order. Add to View Price |
|||
|
#32160A
FRAME-COMP,RR
32160-0775
|
$950.50 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8MM
411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,SF07A17PX1V1
92045-1384
|
$43.92 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,DS35X55X4
92049-0022
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,43X55.5X8.6
92049-0742
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0071
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,26MM
92153-0474
Superseded by 92154-3818
|
$27.65 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,8X25
92153-1768
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,10X35
92153-1904
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,10X22
92153-1905
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET8X20
92154-1711
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,27X42X2.3
92200-0081
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-0281
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,11X18X1
92200-0324
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,35MM
92210-0095
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,POP,6MM,L=16.5
92210-0324
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,35MM
92210-0823
|
$23.41 | ||
|
Available to order. Add to View Price |
|||
|
#92210C
NUT,POP,6MM,L=15
92210-1397
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
