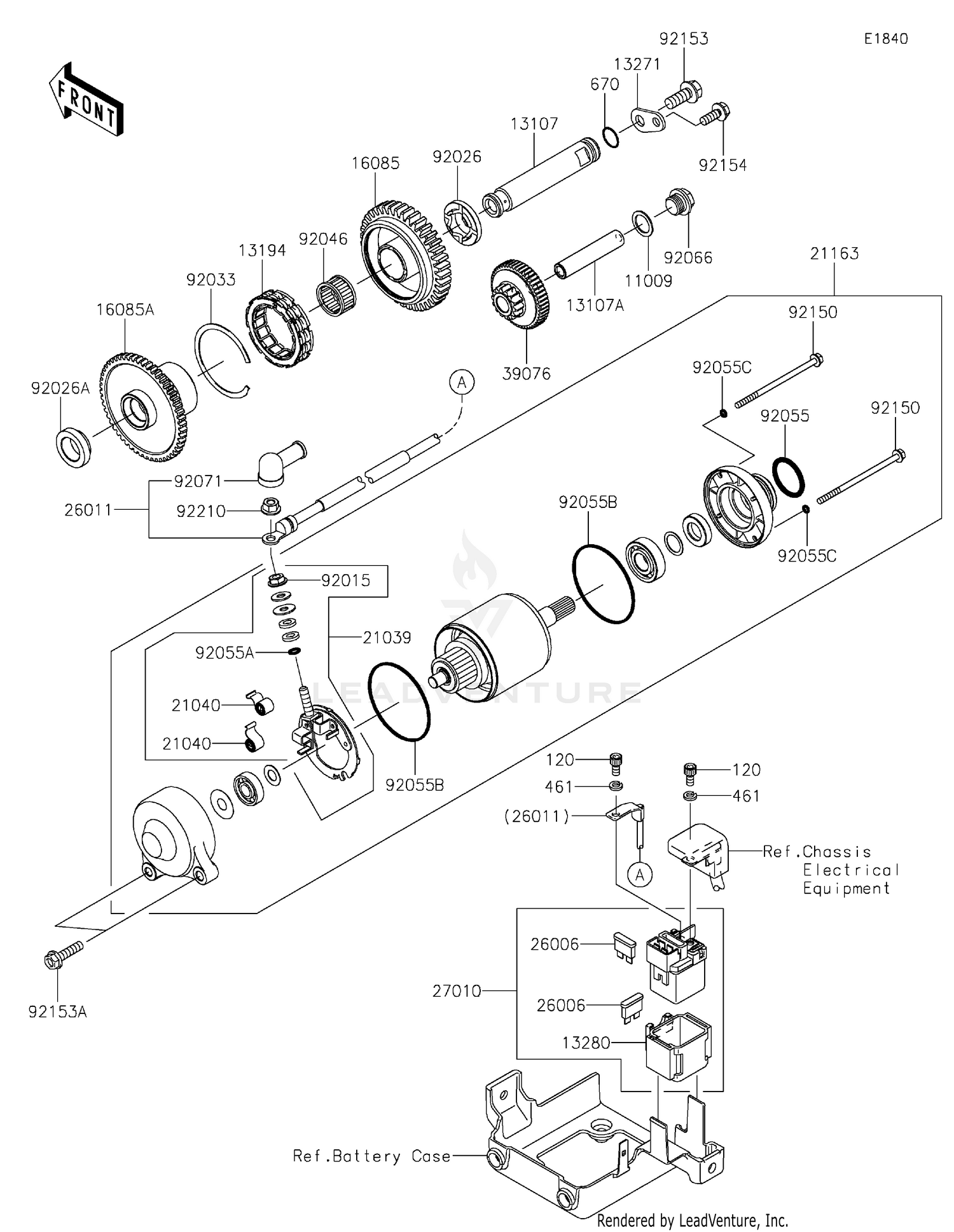

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,14.3X20X1
11009-1238
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X10
120CA0510
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-0110
|
$65.77 | ||
|
Available to order. Add to View Price |
|||
|
#13107A
SHAFT
13107-0136
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-3704
|
$103.82 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0845
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,MAGNETIC SWITCH
13280-0822
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR
16085-0080
|
$121.58 | ||
|
Available to order. Add to View Price |
|||
|
#16085A
GEAR
16085-0113
|
$141.19 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH
21039-1066
|
$30.85 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1057
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-0053
|
$575.72 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD
26011-0122
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,MAGNETIC
27010-0793
|
$130.77 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER
39076-0556
Superseded by 39076-0031
|
$123.14 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,14MM
670D2014
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,RH
92026-0081
|
$30.65 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,LH
92026-0137
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-3731
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,18X24X17
92046-0608
|
$12.68 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,4.5X2.0
92055-1370
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1550
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O
92055-1551
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,14X8
92066-1273
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-0024
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,4X80
92150-1969
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X20
92153-1554
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X25
92153-1592
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X16
92154-1851
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0188
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
