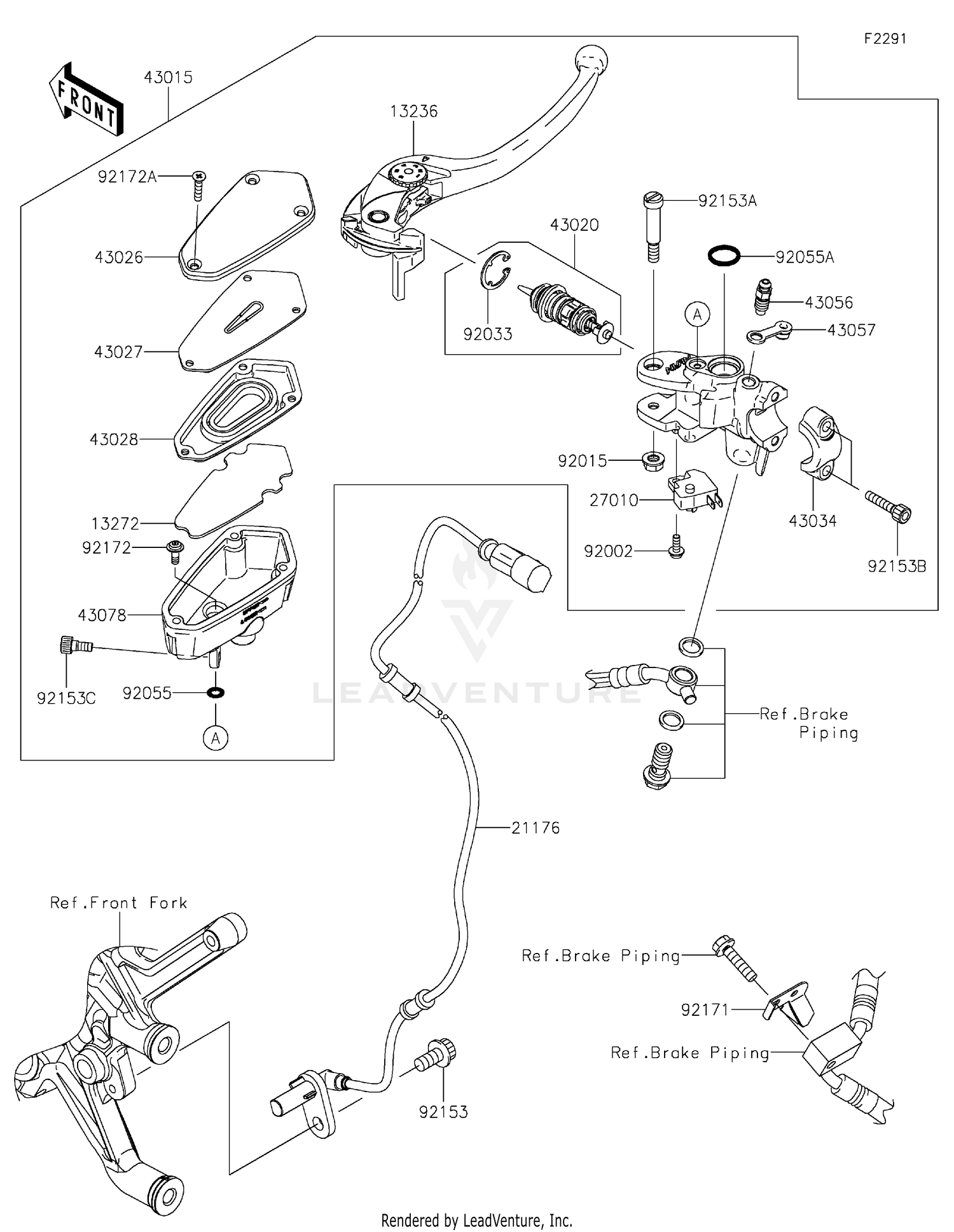

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,FRONT BRAKE
13236-0103
|
$68.74 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-0220
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,SPEED
21176-0130
|
$140.20 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0762
|
$33.70 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,FR
43015-0614
|
$392.18 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0010
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0011
|
$71.69 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-0003
|
$8.06 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-0008
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-0056
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0569
|
$163.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0034
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0137
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X16
92153-0327
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,LEVER
92153-0868
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X22
92153-1518
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,6X12
92153-1853
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0624
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0319
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,4X20
92172-0320
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
