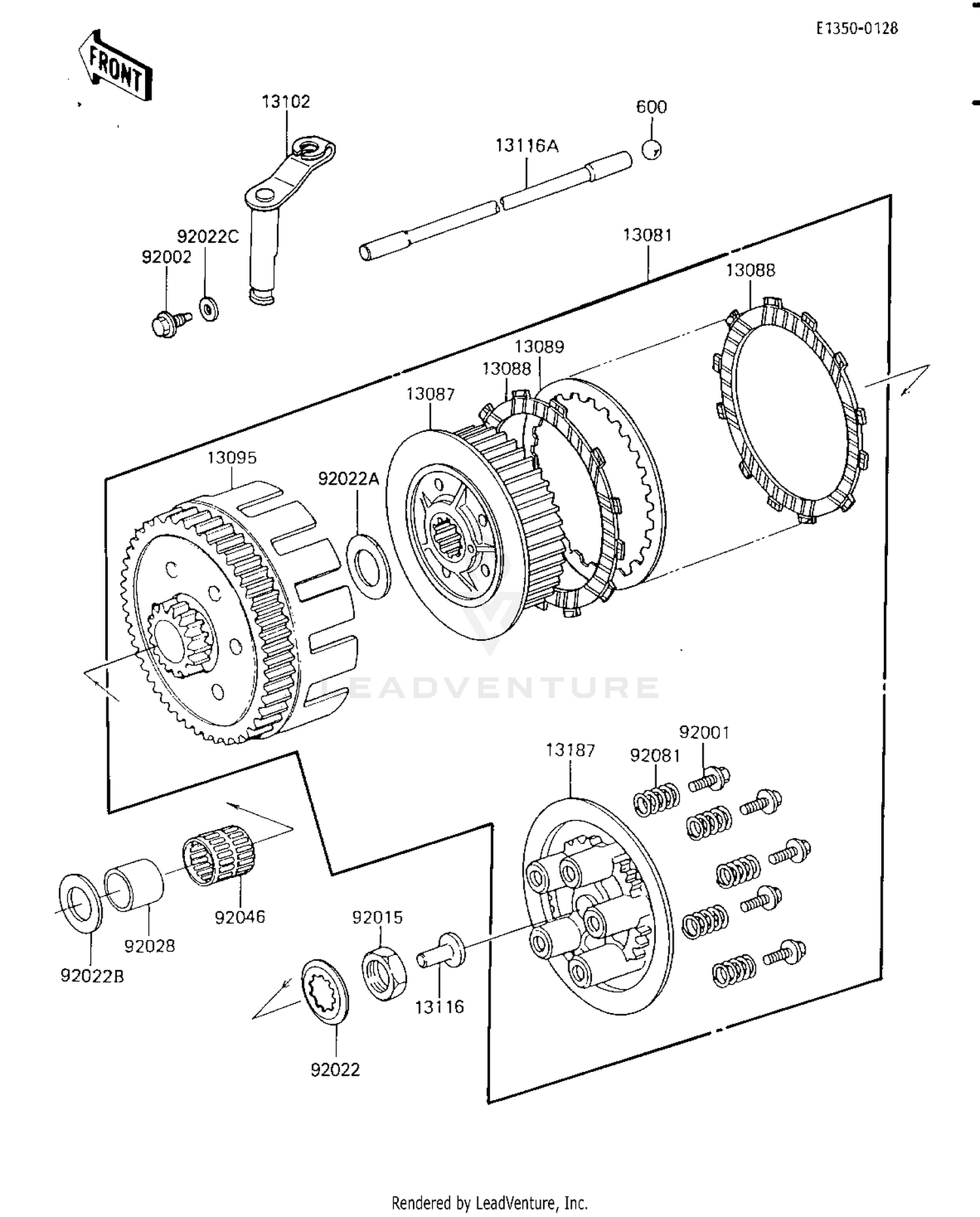

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1215
|
$484.01 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1074
|
$132.75 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1065
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=1.2
13089-1010
|
$14.86 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1137
|
$300.56 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1078
|
$56.58 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH,CLUTCH
13116-1010
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD-PUSH,L=167
13116-1117
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1011
|
$80.24 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED-SMALL,6X7X2.5
92002-1357
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92016-028
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,LOCK
92022-1738
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,22.5X46X2.6
92022-1739
|
$11.61 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,22.3X38X1.4
92022-1740
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,22X28X27.5
92028-1385
|
$30.96 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,28R322
92046-1149
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1176
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#600
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
