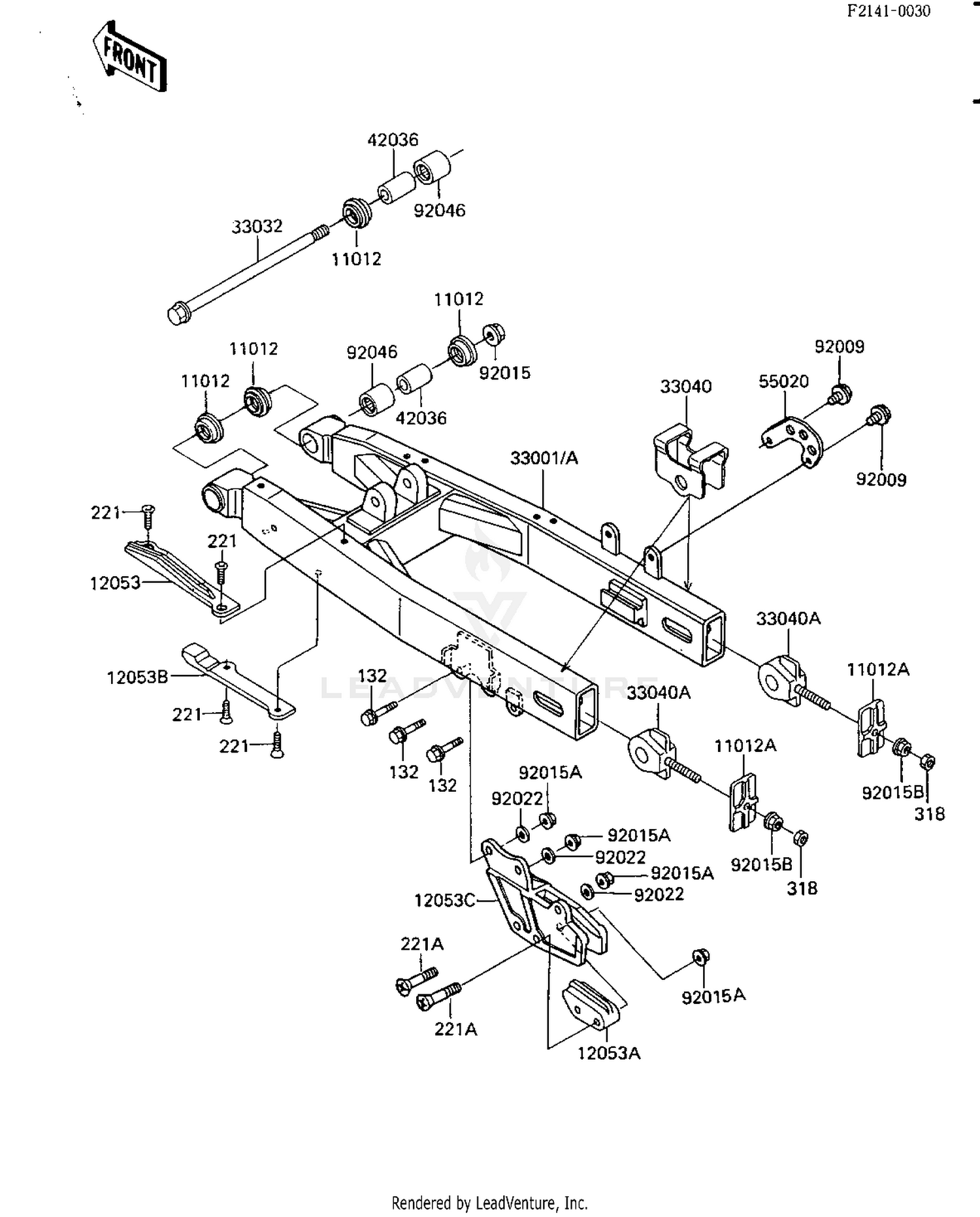

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,SWING ARM
11012-1259
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,CHAIN ADJUSTER
11012-1431
|
$17.74 | ||
|
Unavailable |
|||
|
#12053
GUIDE-CHAIN,FR,UPP
12053-1101
|
$45.02 | ||
|
Unavailable |
|||
|
#12053A
GUIDE-CHAIN,RR,INSIDE
12053-1105
|
$42.07 | ||
|
Unavailable |
|||
|
#12053B
GUIDE-CHAIN
12053-1144
|
$34.68 | ||
|
Unavailable |
|||
|
#12053C
GUIDE-CHAIN,RR
12053-1179
|
$74.22 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING
33001-1246
|
$482.22 | ||
|
Available to order. Add to View Price |
|||
|
#33001A
ARM-COMP-SWING
33001-1274
|
$483.16 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1112
|
$87.74 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN,OUTSID
33040-1058
|
$46.21 | ||
|
Available to order. Add to View Price |
|||
|
#33040A
ADJUSTER-CHAIN,INSIDE
33040-1059
|
$31.44 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM
42036-1064
|
$20.53 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CALIPER
55020-1207
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10,WHITE
92009-1286
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,14MM
92015-1407
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,TA2030
92046-1128
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,6X10
221B0610
Superseded by 221AA0610
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#221A
SCREW-CSK-CROS,6X50
221B0650
Superseded by 221AA0650
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318G0800
Superseded by 318BA0800
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
