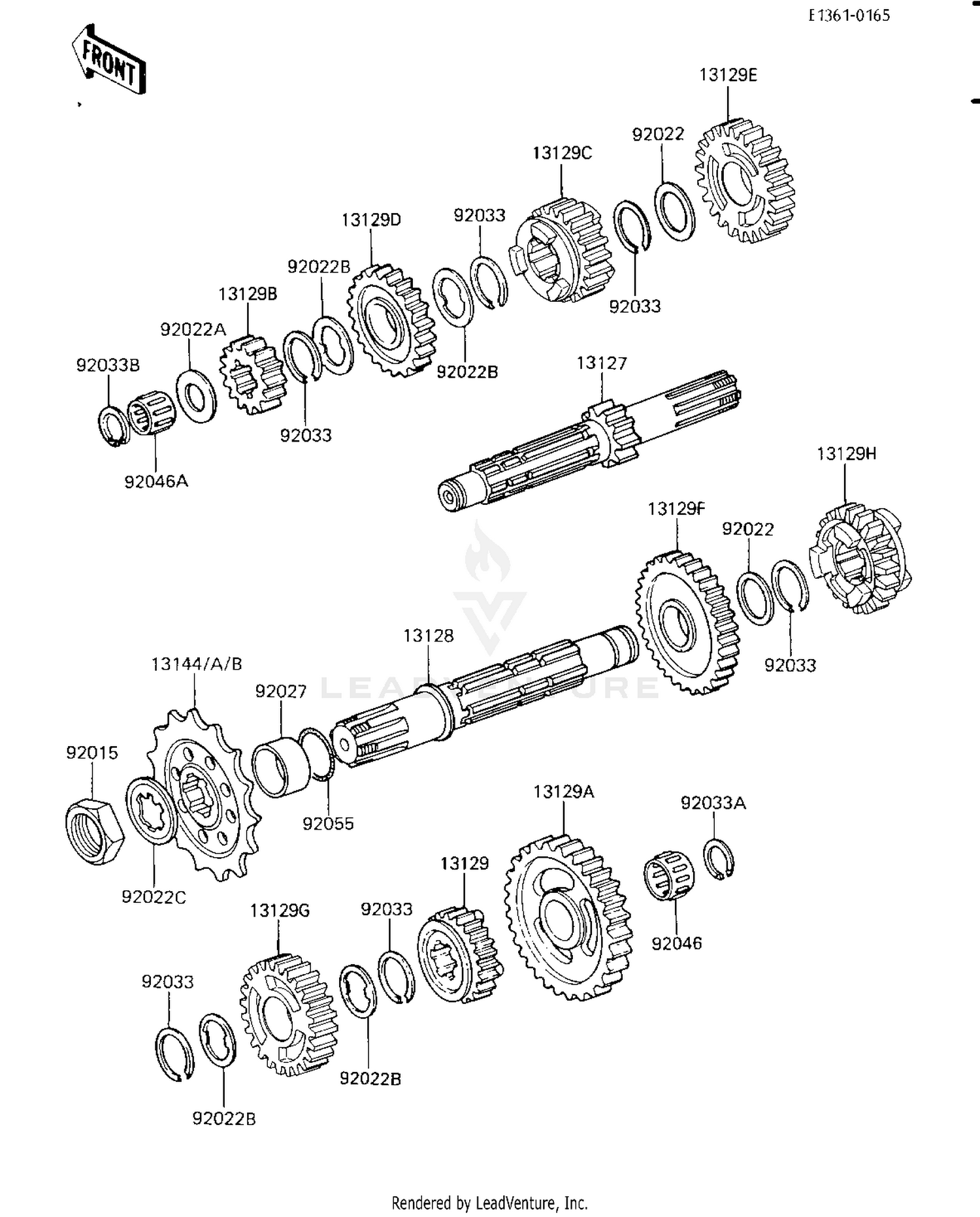

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13127
SHAFT-TRANSMISSION IN
13127-1131
|
$123.46 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT-TRANSMISSION OU
13128-1128
|
$155.03 | ||
|
Available to order. Add to View Price |
|||
|
#13129
TOP GEAR,OUTPUT,19T
13129-1133
|
$80.46 | ||
|
Available to order. Add to View Price |
|||
|
#13129A
LOW GEAR,OUTPUT,32T
13129-1180
|
$116.82 | ||
|
Available to order. Add to View Price |
|||
|
#13129B
GEAR,INPUT 2ND,20T
13129-1741
|
$117.21 | ||
|
Available to order. Add to View Price |
|||
|
#13129C
GEAR,INPUT 3RD,22T
13129-1742
Superseded by 13260-1101
|
$120.82 | ||
|
Available to order. Add to View Price |
|||
|
#13129D
GEAR,INPUT 4TH,22T
13129-1743
Superseded by 13260-1020
|
$138.76 | ||
|
Available to order. Add to View Price |
|||
|
#13129E
GEAR,INPUT TOP,24T
13129-1744
|
$144.20 | ||
|
Available to order. Add to View Price |
|||
|
#13129F
GEAR,OUTPUT 2ND,29T
13129-1746
Superseded by 13129-1955
|
$131.88 | ||
|
Available to order. Add to View Price |
|||
|
#13129G
GEAR,OUTPUT 3RD,26T
13129-1747
|
$138.18 | ||
|
Available to order. Add to View Price |
|||
|
#13129H
GEAR,OUTPUT 4TH,21T
13129-1748
Superseded by 13260-1021
|
$120.82 | ||
|
Available to order. Add to View Price |
|||
|
#1314
ENGINE SPROCKET 13T
13144-055
|
$64.90 | ||
|
Available to order. Add to View Price |
|||
|
#13144A
ENGINE SPROCKET,14T
13144-1006
|
$58.75 | ||
|
Available to order. Add to View Price |
|||
|
#13144B
SPROCKET,ENGINE,15T
13144-1026
|
$82.29 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT BEARING ADJUST
42045-008
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,25.3X30X0.5
92022-159
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,17.3X28X1
92022-255
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,TOOTHED,22.5X31X0.5
92024-038
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,LOCK
92024-065
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,25X32X10.5
92143-1370
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,24MM
92033-026
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,18MM
92033-029
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#92033B
RING-SNAP
92033-032
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KT202614
92046-1170
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,K17X23X13.8
92046-1184
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-035
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
