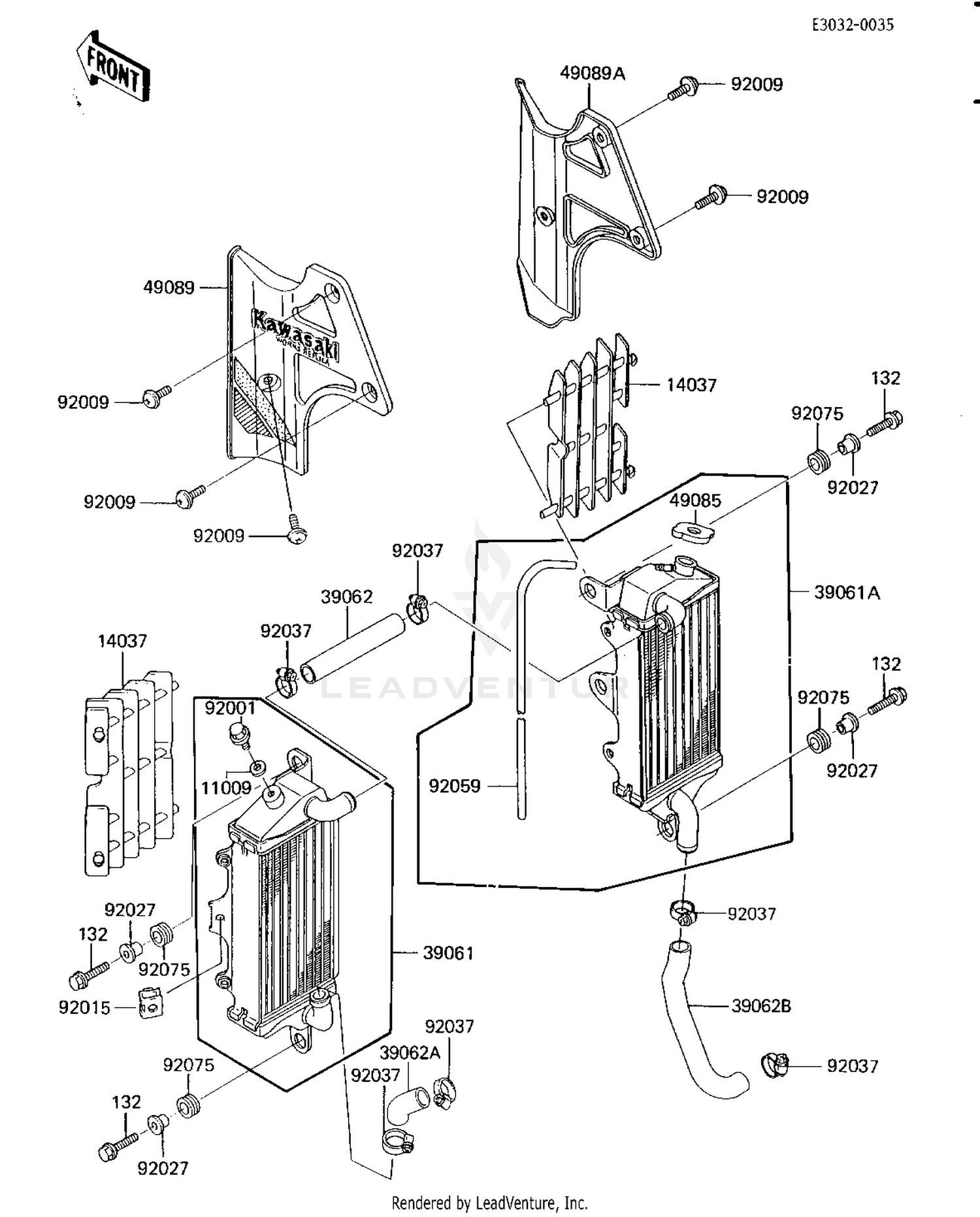

Radiators Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,DRAIN PLUG
11009-1152
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN,RADIATOR,EBONY
14037-1077-6C
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY,LH
39061-1066
|
$444.25 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
RADIATOR-ASSY,RH
39061-1067
|
$445.12 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,RADIATOR
39062-1096
Superseded by 39062-1256
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-1138
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RADIATOR
39062-1139
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1003
Superseded by 49085-1066
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#49089
SHROUD-ENGINE,LH,L.GR
49089-5009-6W
|
$124.92 | ||
|
Available to order. Add to View Price |
|||
|
#49089A
SHROUD-ENGINE,RH,L.GR
49089-5010-6W
|
$125.09 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RADIATOR DRAIN
92002-1682
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10,WHITE
92009-1286
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=11.1
92027-194
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6X9X700
92059-1383
Superseded by 92191-1211
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
