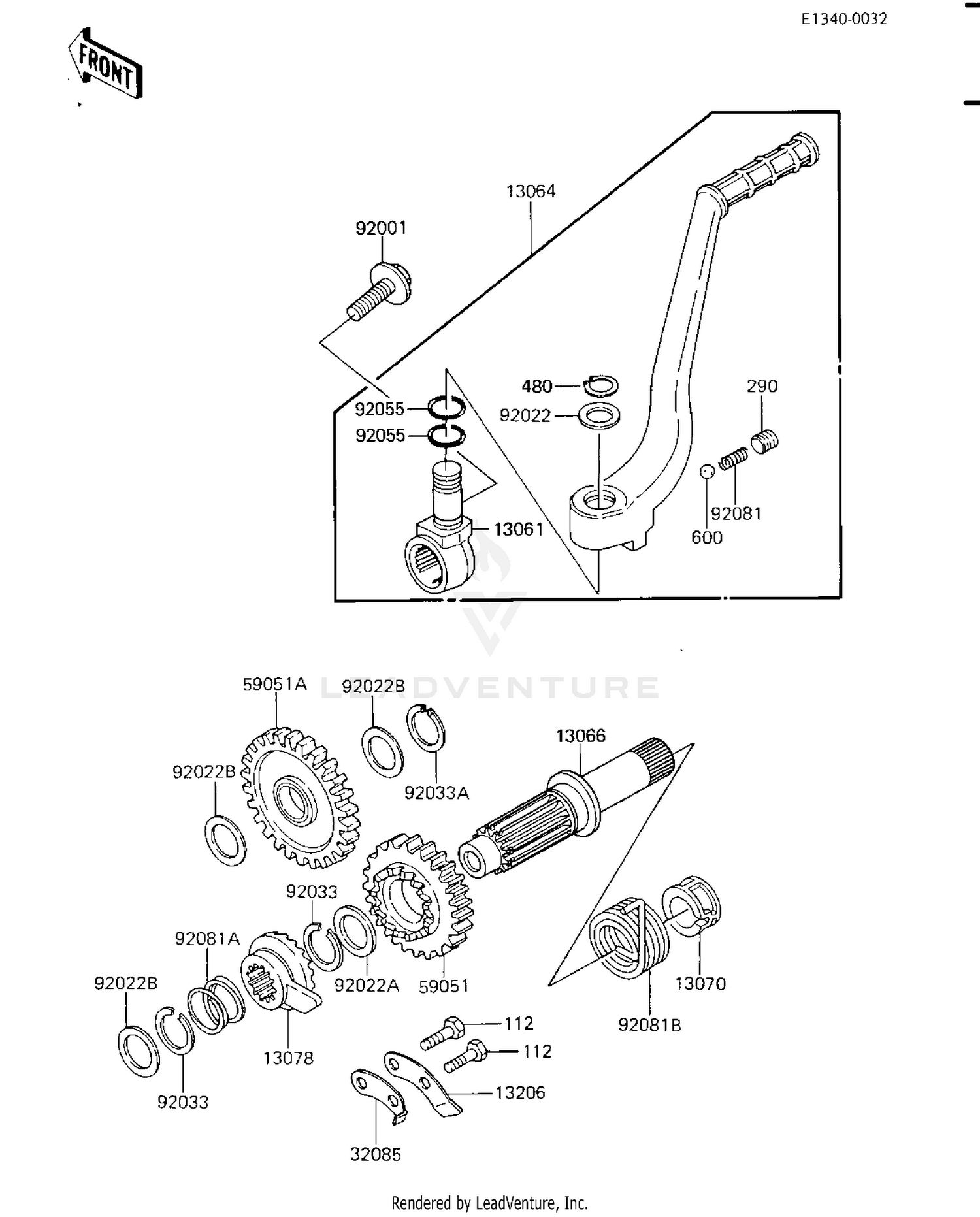

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13061
BOSS,KICK PEDAL
13061-1139
|
$90.31 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK,PEDAL
13064-1118
|
$166.06 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-1056
|
$122.02 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUID,KICKSTARTER SPRG
13070-011
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET
13078-007
|
$72.78 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1003
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,KICKSTARTER
13072-014
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,KICKSTARTER
59051-1149
|
$144.20 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,IDLE,26T
59051-1150
|
$120.82 | ||
|
Unavailable |
|||
|
#92001
BOLT,FLANGED,8X17
92001-1371
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,16.3X24X1
92022-1205
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,25.3X30X0.5
92022-159
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,20.5X25.5X0.5
92022-252
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,24MM
92033-026
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,18MM
92033-029
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING
92055-061
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-097
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,KICKSTARTER
92144-1115
|
$29.23 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW-SET-SOCKET
290P0816
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,15MM
480J1500
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
