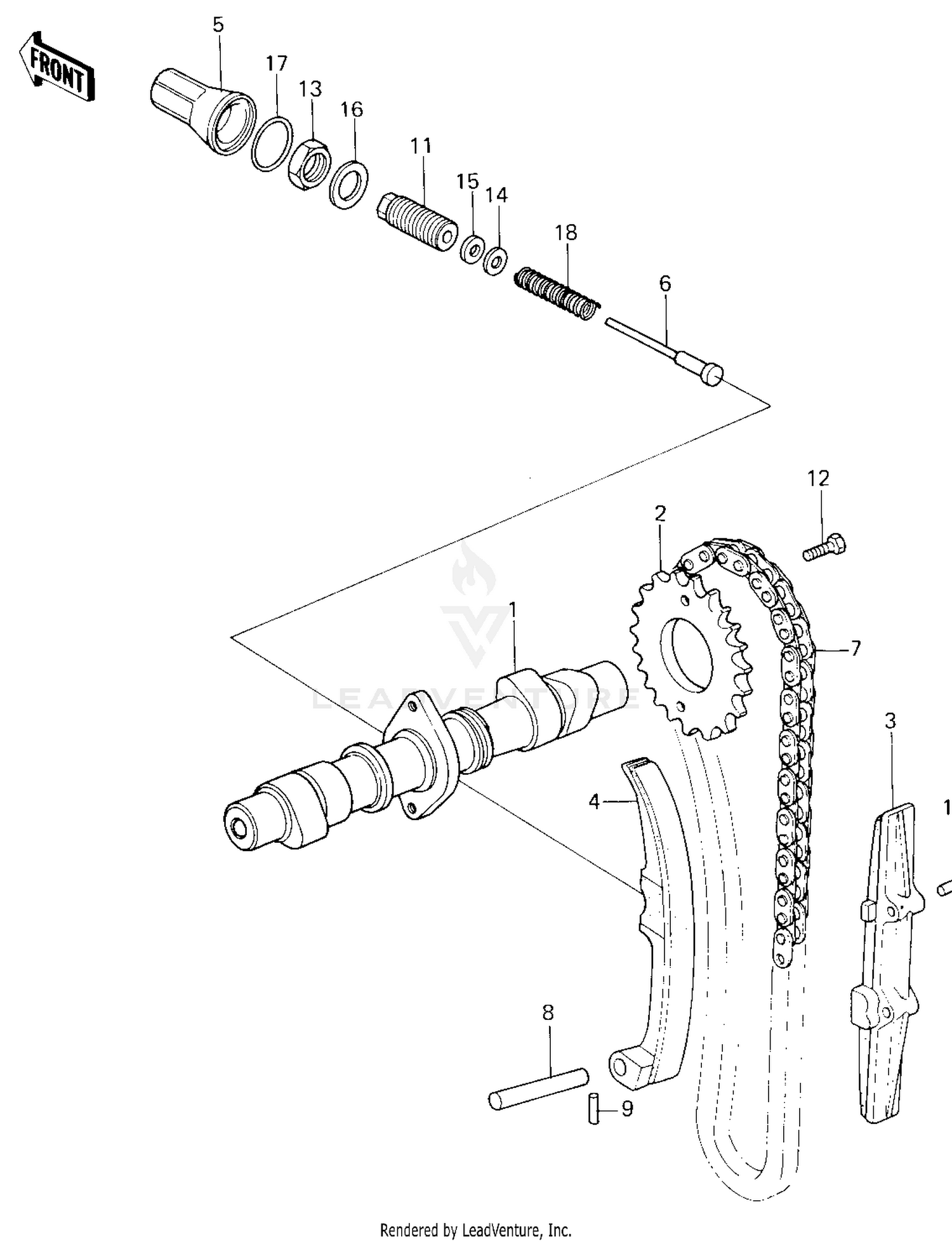

Camshaft/chain/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT,VALVE
12044-5001
|
$156.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET,CAM,34T
12046-1002
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CHAIN,REAR
12053-1042
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE,CAM CHAIN
12053-1001
|
$40.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,CAM CHAIN TENSION
12064-005
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD,PUSH
13116-1003
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN CAM
21070-004
|
$141.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT,CHAIN GUIDE
39115-1001
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN,DOWEL,3X25
551A0325
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,DOWEL,5X32
551A0532
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE,PUSH ROD
92001-1271
|
$43.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,FLANGED,6X11
92003-208
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,LOCK
92016-054
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,PLAIN
92022-1029
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,PLAIN
92022-1030
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,14X20X2
92022-1040
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
0 RING,22MM
92055-018
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING,CHAIN TENSINR
92081-131
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
