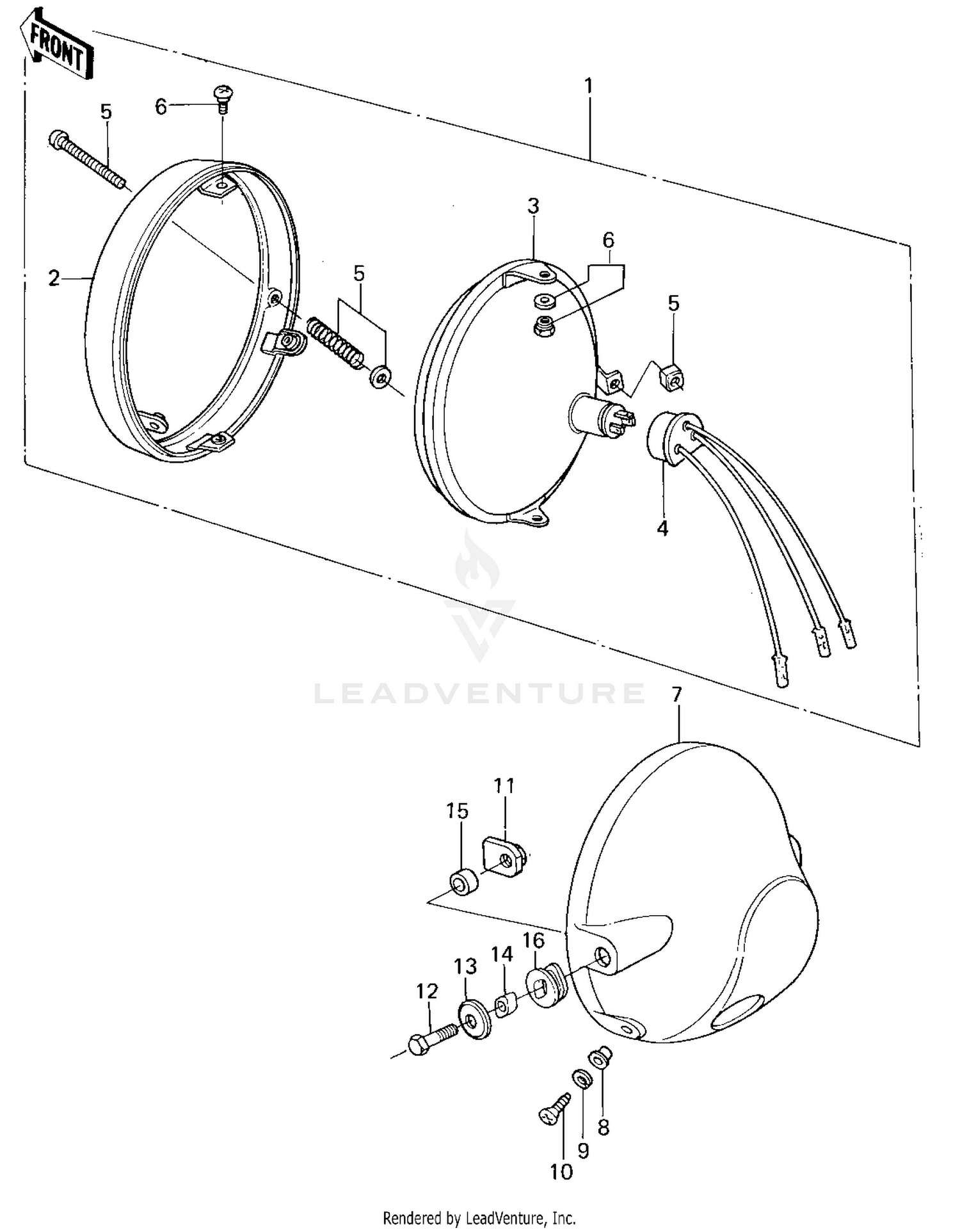

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIGHT UNIT HEAD
23003-022
|
$315.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM HEAD LIGHT
23006-044
|
$89.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS UNIT HEAD LIGHT
23007-059
|
$95.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET ASSY,HEAD LAMP
23008-037
|
$20.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW ASY FOCUS ADJST
23013-008
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW ASY LENS UNIT
23013-009
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY,HEAD LIGHT,BLACK
23005-047-21
|
$124.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 10MM
23020-021
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,10MM
92007-024
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
92022-289
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR,HEAD LAMP
92027-1129
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR,HEAD LIGHT
92027-231
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER
92075-128
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
