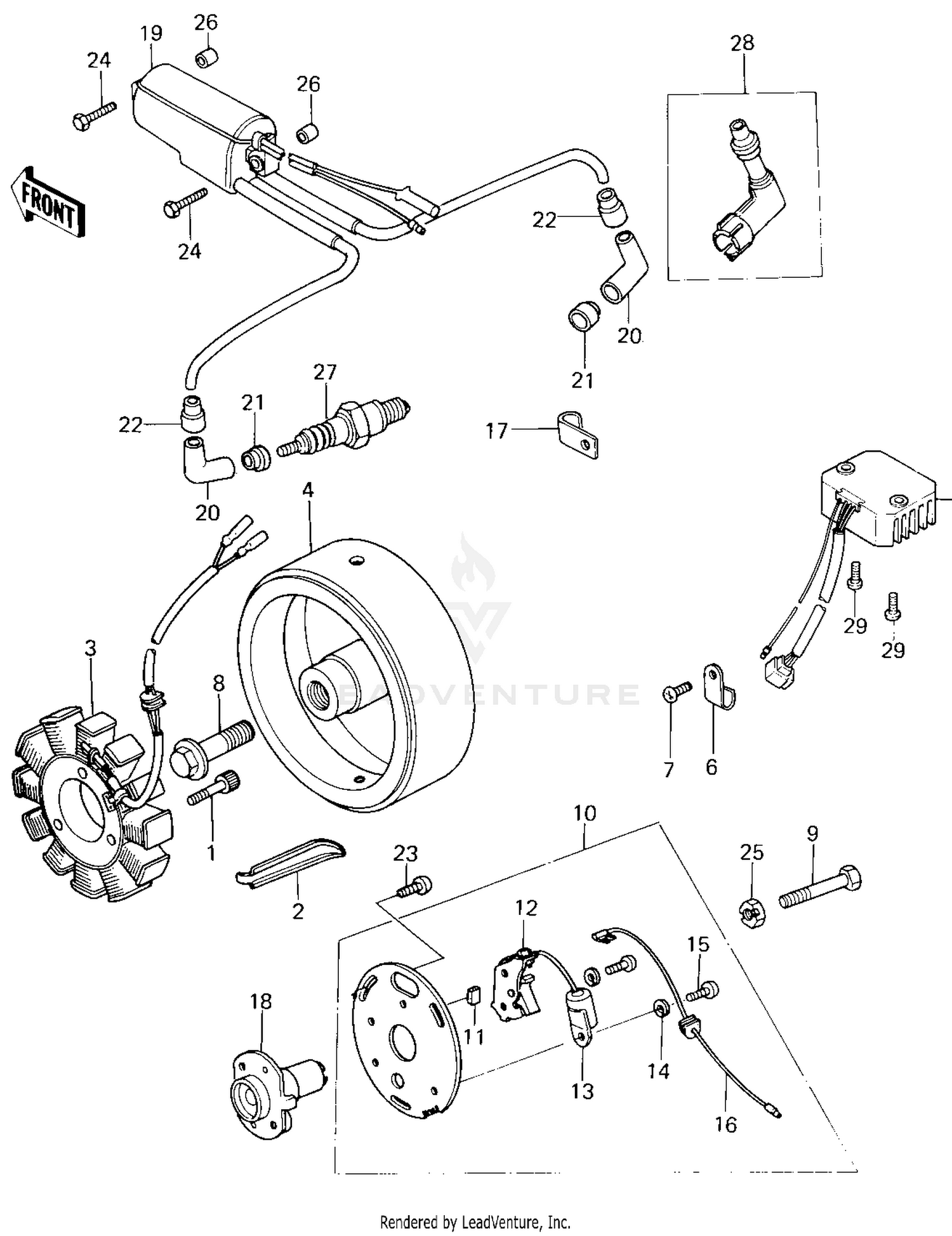

Ignition/generator/regulator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT,ALLEN,6X28
120P0628
Superseded by 120CA0628
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE,LEAD CLAMP
13169-1008
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
STATOR.ASSY,GENERATER
21003-1009
|
$402.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLYWHEEL
21050-1004
|
$865.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
REGULATOR
21066-029
|
$474.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,10X40
92002-1303
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-8X63
92001-1397
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BREAKER ASSY,CONTACT
21008-1014
|
$77.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
FELT OIL
21019-005
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BREAKER,CONTACT
21008-027
|
$68.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONDENSER
21013-1004
|
$39.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE,LEAD,BREAKER
26011-1030
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Unavailable |
|||
|
#18
GOVERNOR,BREAKER
21148-1002
|
$231.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
COIL-IGNITION
21121-1174
|
$310.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP-SPARK PLUG,RTFM20
21130-1007
|
$33.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET-PLUG CAP,A
21131-004
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET,HIGH TENSION
21132-005
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, IGNITION COIL
92003-170
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,SPARK ADVANCER
92022-244
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR,IGNITION COIL
92027-276
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPARK PLUG B7ES
B7ES
|
$3.50 | ||
|
Unavailable |
|||
|
#28
CAP,SPARK PLUG
21160-005
|
$49.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
