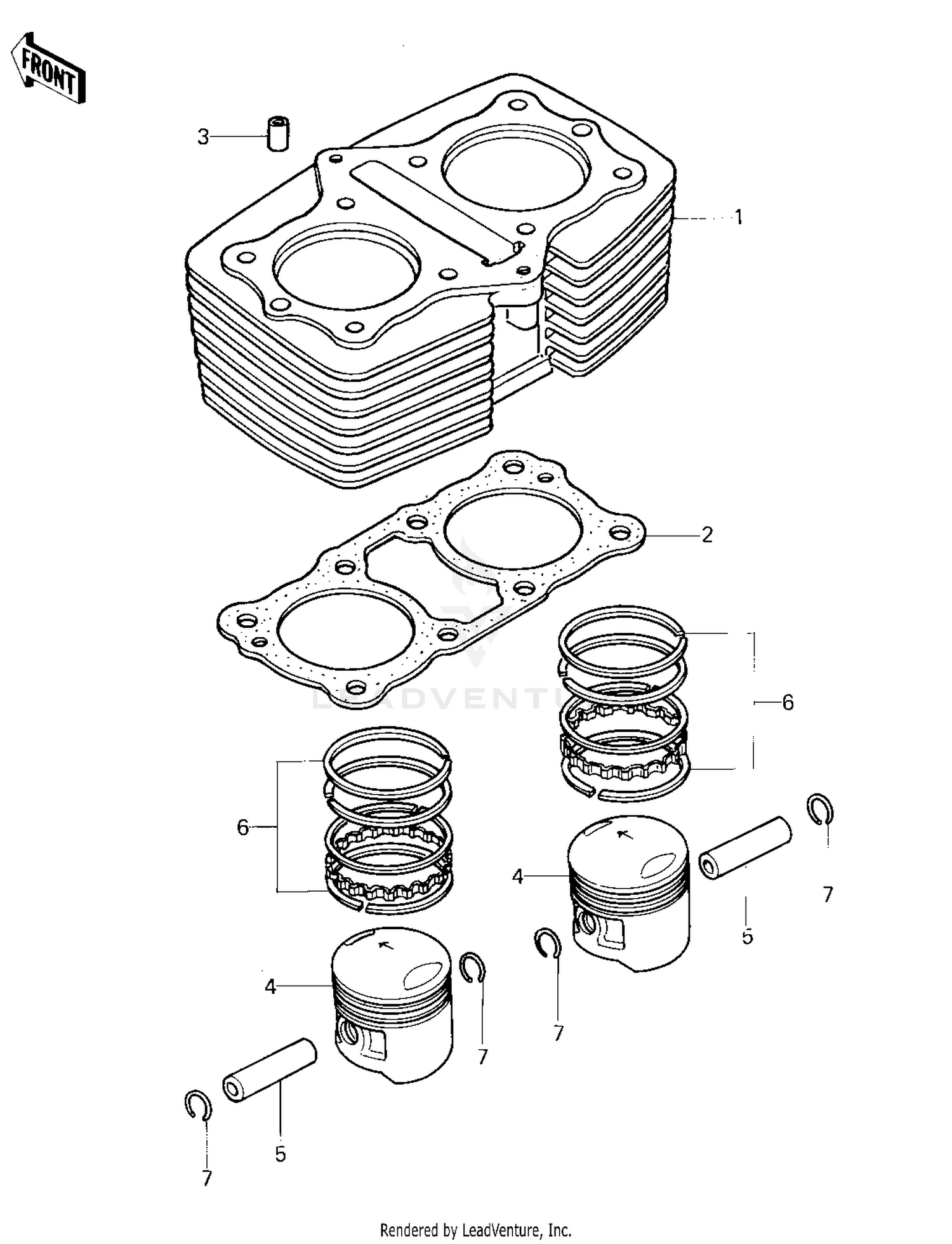

Cylinder/pistons Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11005-1002
|
$619.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CYLINDER BASE
11009-1176
Superseded by 11060-1519
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON,STD
13001-1001
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON,0.020",O/S
13029-1006
|
$92.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON,0.040",O/S
13027-1008
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN-PISTON
13002-1001
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING SET,PISTON,STD
13008-5019
|
$89.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING SET,0.020",O.S.
13025-5010
|
$78.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING SET,0.040",O.S.
13024-5010
|
$89.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
