1979 Kawasaki KZ400H LTD Seat OEM Parts

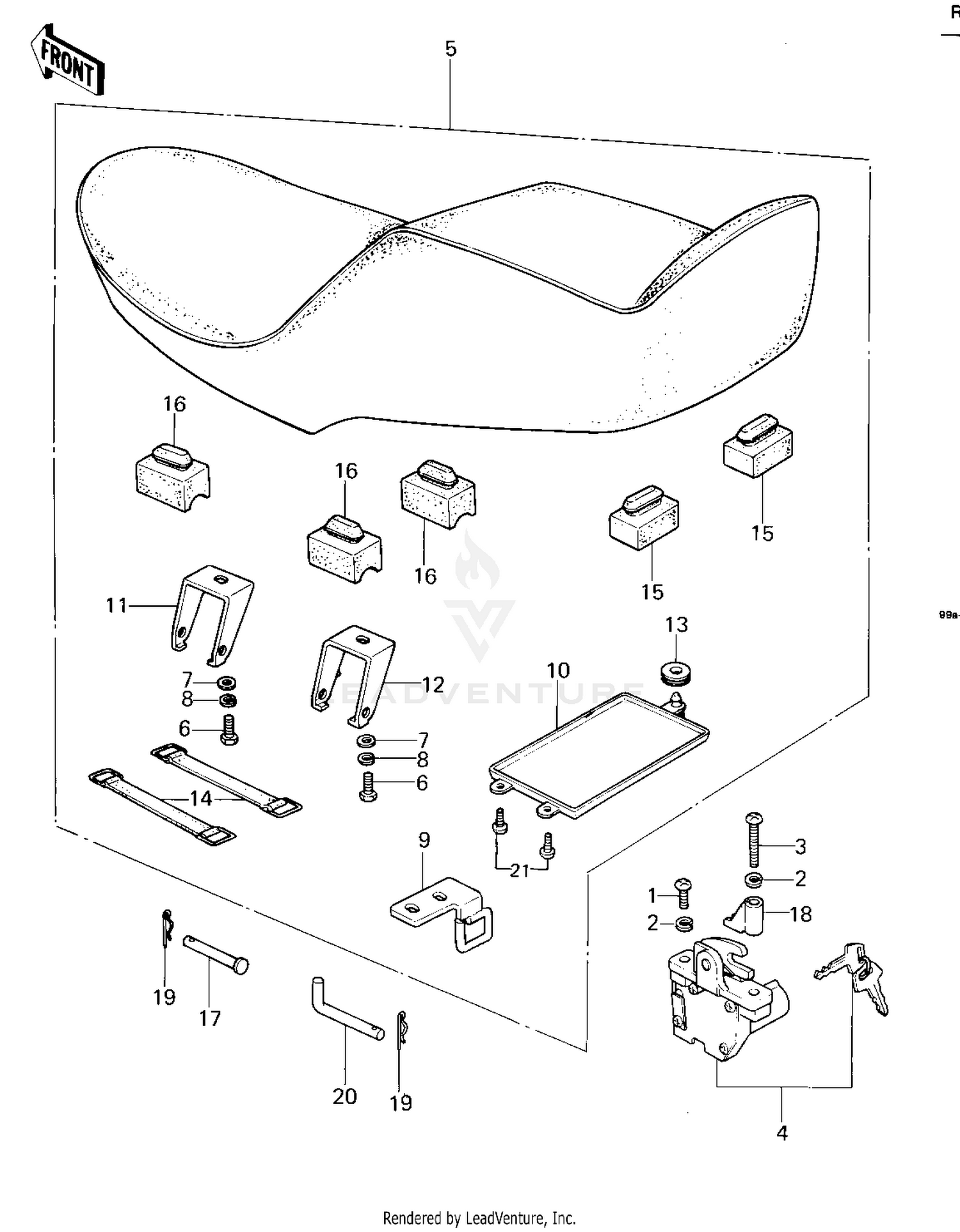

Seat Diagram

Item	MSRP	Qty
#1 SCREW-PAN-CROS,6X12 220B0612 Superseded by 220AA0612	$1.16
Available to order. Add to View Price
#2 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#3 SCREW-PAN-CROS,6X35 220B0635 Superseded by 220AA0635	$1.59
Available to order. Add to View Price
#4 LOCK ASSY,SEAT HELMET 27016-5028	$88.48
Available to order. Add to View Price
#5 SEAT-ASSY,DUAL 53001-1061	$457.70
Available to order. Add to View Price
#6 BOLT-UPSET 112B0614 Superseded by 112AA0614	$0.48
Available to order. Add to View Price
#7 WASHER-PLAIN,6MM 411B0600 Superseded by 411AA0600	$2.84
Available to order. Add to View Price
#8 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Unavailable
#9 HOOK,SEAT 27012-1011	$20.89
Available to order. Add to View Price
#10 CASE 32099-011	$16.06
Available to order. Add to View Price
#11 HINGE, REAR 53009-026	$16.02
Available to order. Add to View Price
#12 HINGE,SEAT 53009-1017	$11.51
Available to order. Add to View Price
#13 GROMMET 92071-056	$4.13
Available to order. Add to View Price
#14 BAND 92072-1006	$12.96
Available to order. Add to View Price
#15 DAMPER 92075-099	$5.34
Available to order. Add to View Price
#16 DAMPER RUBBER-SEAT 92075-156	$10.74
Available to order. Add to View Price
#17 PIN, DUAL SEAT PIVOT 53011-006	$5.07
Available to order. Add to View Price
#18 GUARD,SEAT LOCK 55020-1031	$4.91
Available to order. Add to View Price
#19 COTTER PIN 92041-003	$5.54
Available to order. Add to View Price
#20 PIN,SEAT PIVOT 92043-1064	$5.37
Available to order. Add to View Price
#21 SCREW 92009-1043	$4.62
Available to order. Add to View Price
