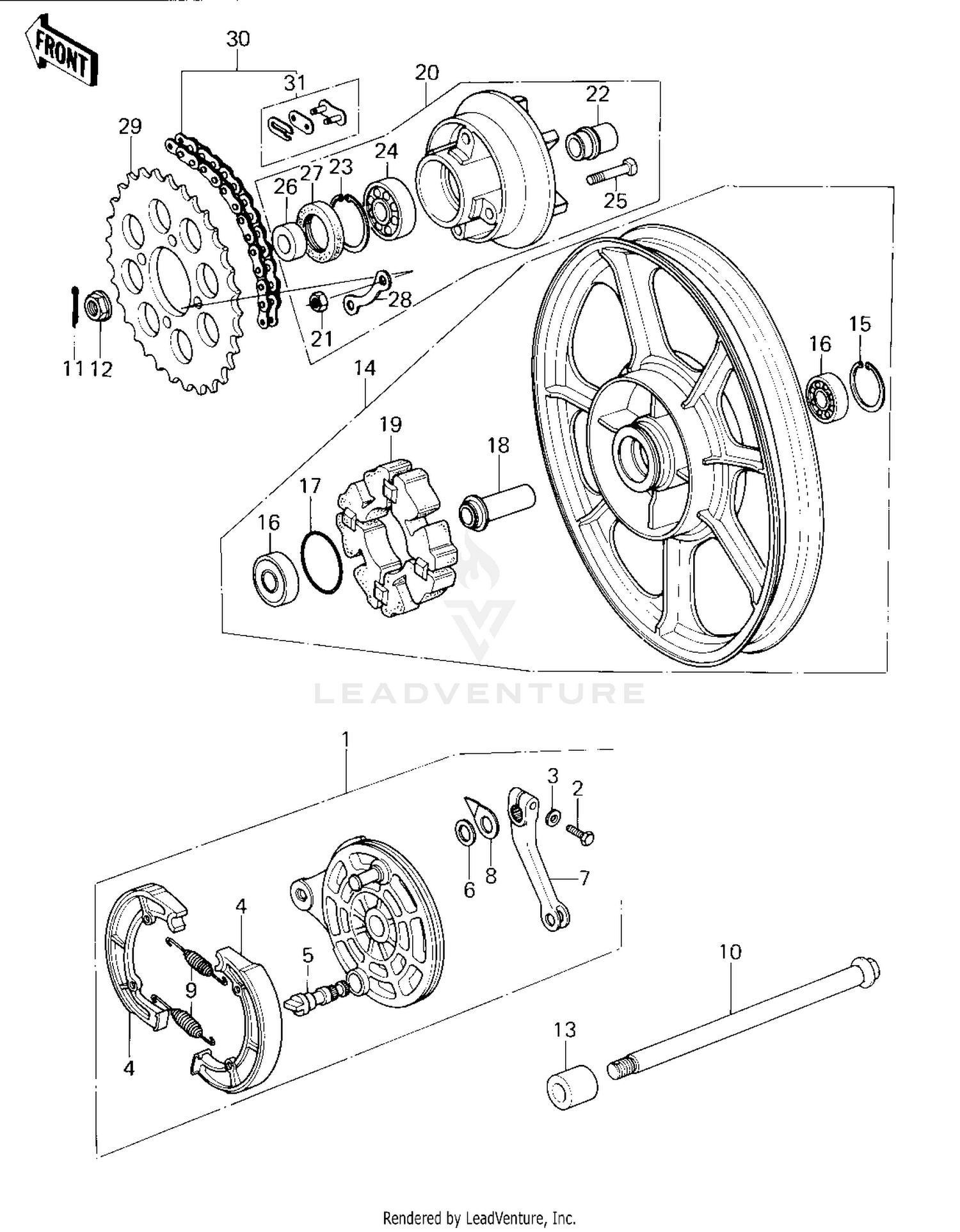

Rear Wheel/hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL-ASSY.-BRAKE, RR
41035-1089
Superseded by 41035-1453
|
$346.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT HEX HEAD 8X28
114G0828
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHOE-BRAKE
41048-1069
|
$26.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM,BRAKE
41050-1001
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SHIELD-BRAKE CAM
41051-003
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER,BRAKE CAM
41053-1001
|
$34.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
INDICATOR,BRAKE SHOE
41085-004
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING-BRAKE SHOE
42020-004
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE,REAR
41068-1024
|
$55.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN-COTTER,4.0X25
550D4025
Superseded by 550AA4025
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,FLANGED,16MM
92015-1041
Superseded by 92015-1946
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR,REAR AXLE,R.H.
92027-1198
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
SOLID WHEEL ASSY,REAR
41073-1055
|
$305.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING BALL #6303Z
601B6303Z
|
$23.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR,REAR HUB BRG
92027-1196
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER,REAR HUB SHOCK
92075-1008
|
$68.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
COUPLING ASSY,RR HUB
42033-1011
|
$149.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
SLEEVE,COUPLING
42036-1002
|
$36.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, RR SPROCKET FIT
92003-156
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR REAR AXLE,L.H.
92027-1197
|
$32.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER SPROCKET LOCK
92088-005
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#29
REAR SPROCKET,45T
42041-145
|
$164.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
DR CHAIN 530X104L
92057-1035
|
$203.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN JOINT 530
92058-1005
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
