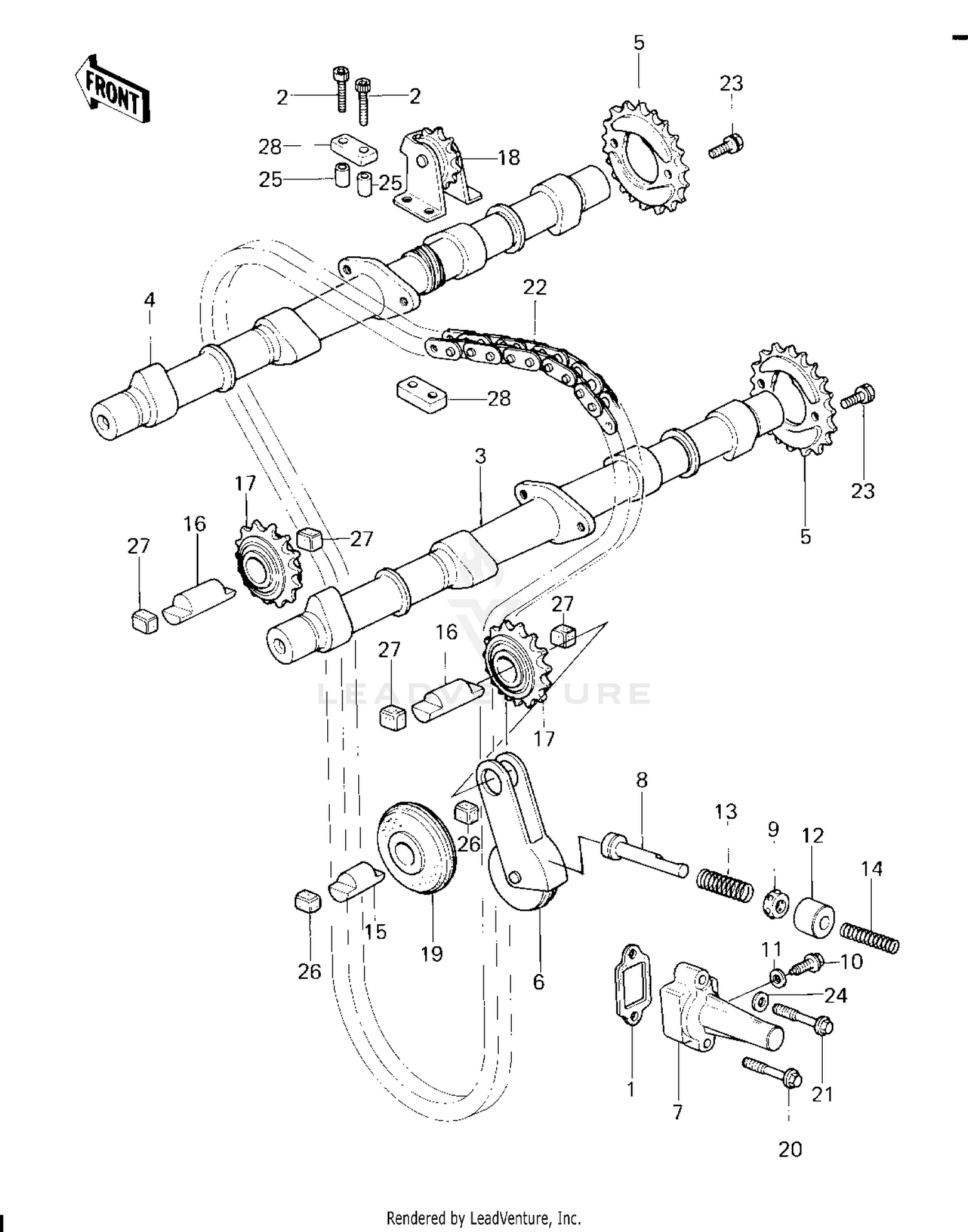

Camshafts/chain/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,TENSIONER
11009-1980
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,ALLEN,6X32
120Q0632
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM SHAFT,INLET
12044-012
|
$299.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM SHAFT,EXHAUST
12044-013
|
$469.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET,CAM
12046-004
|
$65.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER,CAM CHAIN
12048-015
|
$131.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
KIT-TENSIONER
99996-1021
|
$135.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD ASSY,PUSH
13116-1008
|
$112.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER
14020-1002
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,TENSIONER ADJUST
92001-1155
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, TENSIONER
92027-1102
|
$39.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,TENSIONER
92081-1068
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
92081-146
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT,CAM CHAIN GUIDE
12052-003
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT,GUIDE ROLLER
12052-005
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
IDLER ASSY,CAM CHAIN
12053-1012
|
$221.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
IDLER ASSY,CAM CHAIN
12053-1013
|
$91.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROLLER,CAM CHN GUIDE
12055-004
|
$33.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-FLANGED,6X30
130G0630
Superseded by 130BA0630
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-FLANGED,6X35
130H0635
Superseded by 130BA0635
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
CHAIN,CAM
21070-012
|
$301.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,FLANGED,6X11
92003-208
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Unavailable |
|||
|
#25
COLLAR,6.2X8.1X15
92027-1079
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER RUBBER
92075-123
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER,GUIDE ROLLAR
92075-232
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER RUBBER
92075-289
|
$22.67 | ||
|
Available to order. Add to View Price |
|||
