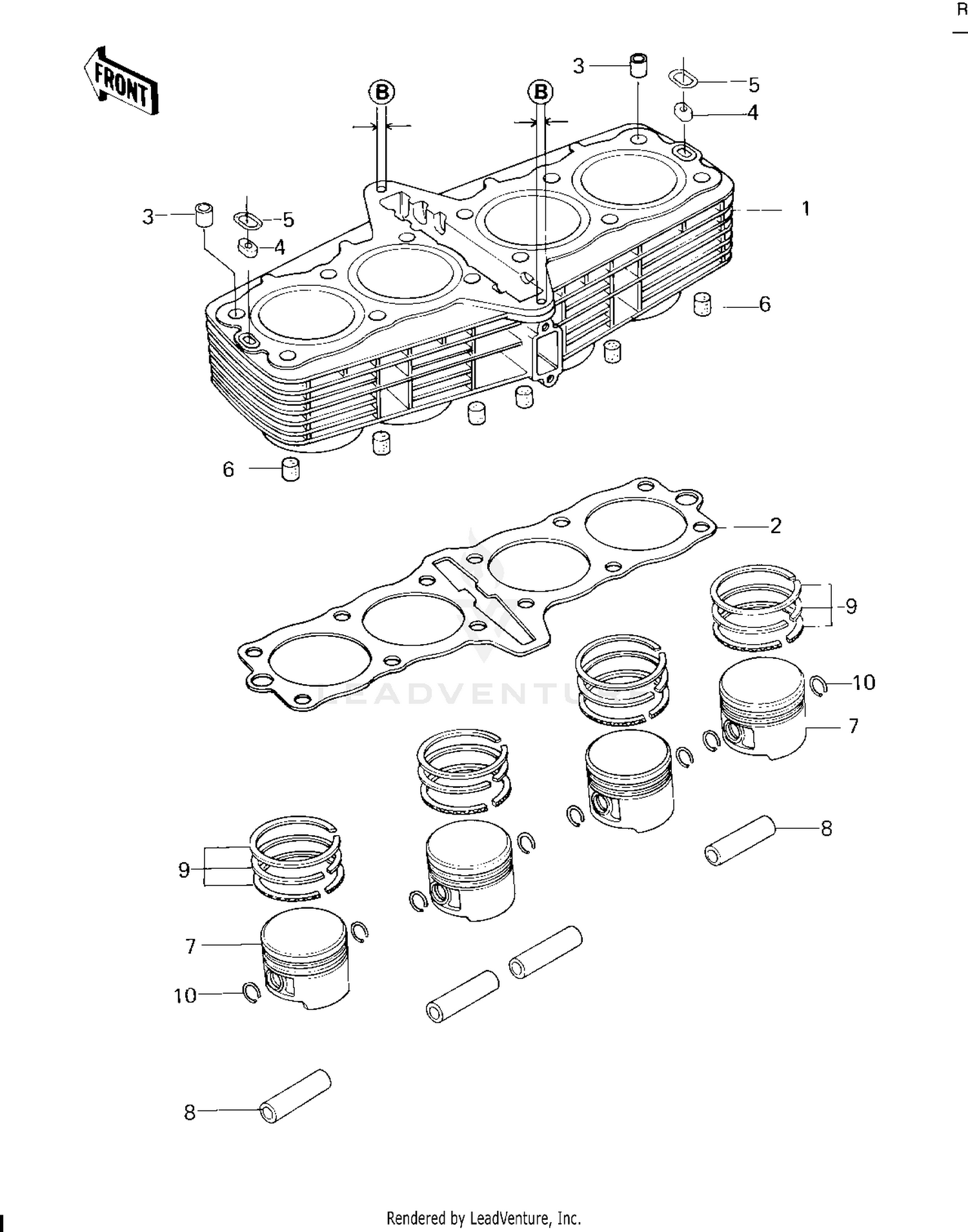

Cylinder/pistons Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11005-1039
|
$913.21 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER
11005-1077
|
$803.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
11060-1362
|
$27.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,OIL LINE
92043-1210
Superseded by 92043-1546
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING-O
92055-1147
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG,DAMPER
92066-1016
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON,STD
13001-1002
|
$118.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON,0.020",O.S.
13029-077
|
$118.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON,0.040",O.S.
13027-069
|
$102.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-PISTON
13002-032
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,PISTON,STD
13008-059
|
$135.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,0.020",O.S.
13025-061
|
$100.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET,0.040",O.S.
13024-060
|
$107.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
