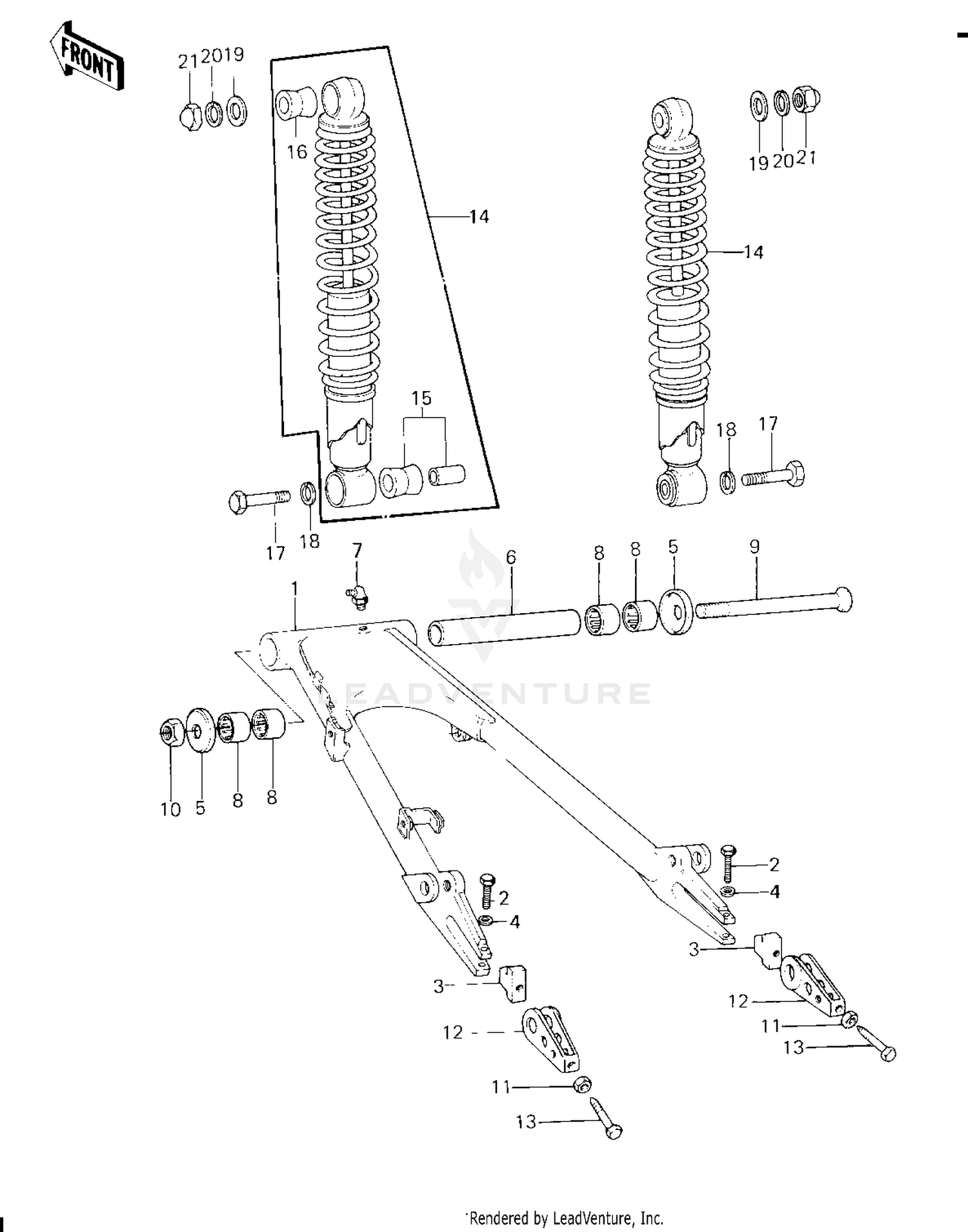

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM-COMP-SWING
33001-1078
|
$236.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FLANGED,8X35
92001-1577
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER,CHAIN ADJUST
33044-002
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,SWING ARM
33035-009
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLEEVE,SWING ARM
42036-1012
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
GREASE NIPPLE
92005-002
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING-NEEDLE,HK2216
92046-1115
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT,SWING ARM
33032-050
|
$97.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-SELF LOCKING
92019-012
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
ADJUSTER,CHAIN
33040-056
|
$28.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHOCK ABSBR RR
45014-1044
|
$175.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING,SHOCK ABSORBE
45017-019
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING,SHOCK ABSORB
45017-020
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT 12MM
92020-014
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
