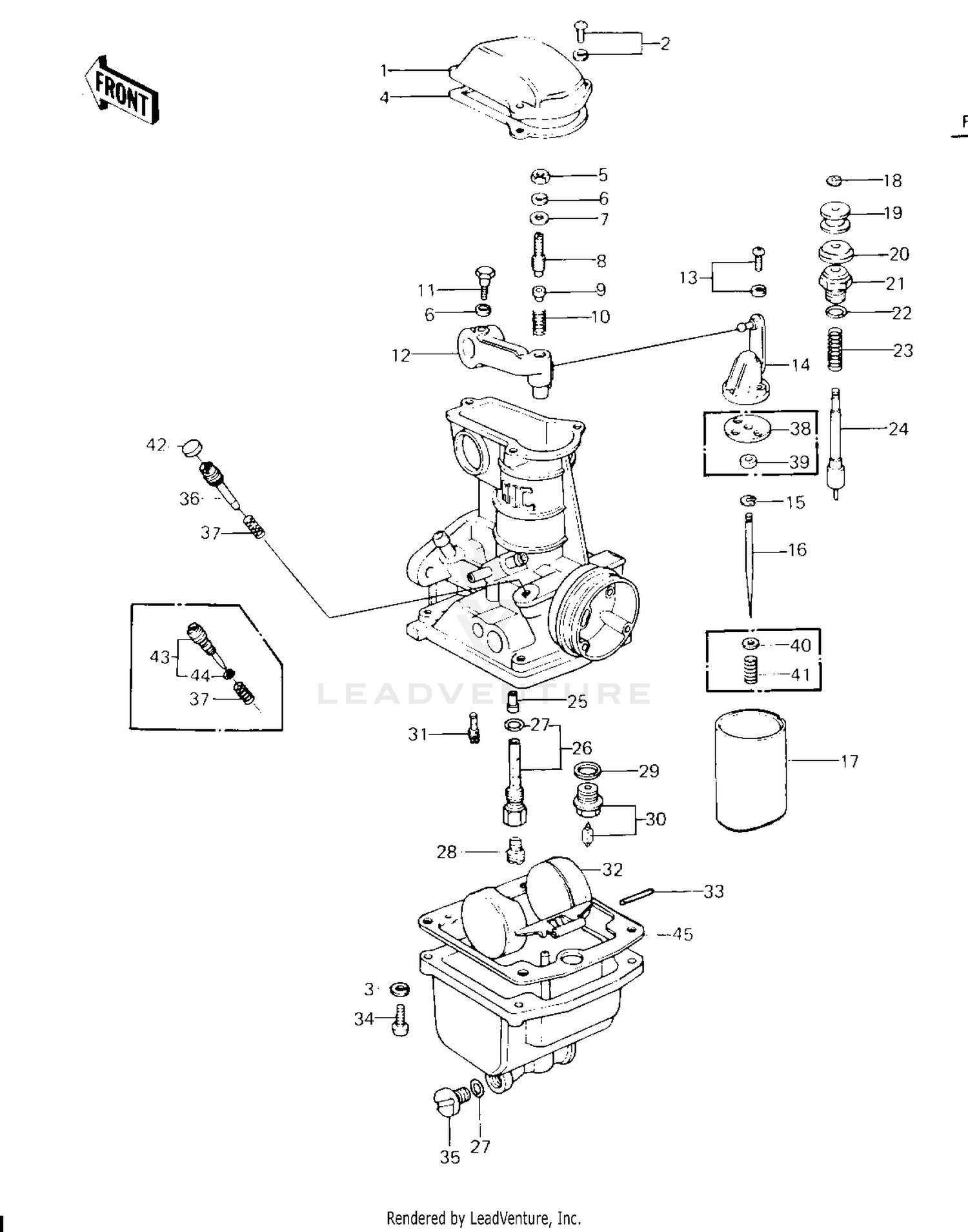

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TOP,MIXING CHAMBER
16005-027
|
$23.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN-WS-CROS,4X14
223B0414
Superseded by 223AA0414
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,CHAMBER TOP
16019-031
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,5MM
16003-013
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,PLAIN
16039-016
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,SLOTTED
16046-012
|
$25.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT,SPRING
16057-002
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
16040-026
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,HEX HEAD,5X14
16067-006
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER,THROTTLE
39075-1001
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PAN HEAD,3X14
16033-031
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,THROTTLE VALV
39184-1001
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,THROTTLE VALV
16007-028
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
16008-010
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET NEEDLE,5CL30
16009-1048
|
$27.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET NEEDLE,5CN15
16009-1013
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE,THROTTLE,CA1.75
16025-1025
|
$71.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE,THROTTLE
16025-1006
|
$75.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
16076-003
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
16073-014
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP,RUBBER,STARTER PLUNGE
16039-015
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP,STARTER PLUNGER
16012-015
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING,STARTER PLUNGER
16013-008
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUNGER,STARTER
16016-021
|
$41.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE JET,AO-5
16017-1034
|
$68.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE JET,AO-4
16017-1021
Superseded by 16017-1035
|
$34.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE,BLEED
49122-1006
|
$20.36 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE,BLEED
16047-005
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
0 RING,MAIN JET COV
16038-016
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAIN JET,#A97.5R
92063-1035
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAIN JET,#A102.5
92063-1028
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAIN JET,#A100
92063-1033
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAIN JET,#A105R
92063-1042
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAIN JET NO 92.5R
92063-068
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET-MAIN,#A95R
92063-1031
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET,FLOAT VALVE SEAT
16029-004
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
FLOAT VALVE ASSY
16030-1001
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
PILOT JET,#A15
92064-1018
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#32
FLOAT
16031-031
|
$165.44 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN,FLOAT
16032-003
Superseded by 16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-PAN-CROS
220B0416
Superseded by 220AA0416
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW,GUIDE
16049-007
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW,PILOT ADJUSTING
16014-1020
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING,PILOT AIR SCREW
16022-007
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE,JET NEEDLE
13169-1107
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#39
RING,JET NEEDLE
92027-1103
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER,THROTTLE VALVE
92022-1024
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING,JET NEEDLE
92081-1072
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW,AIR ADJUSTING
16014-1006
|
$37.42 | ||
|
Available to order. Add to View Price |
|||
|
#44
O RING
16038-022
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET,FLOAT CHAMBER
11009-1563
|
$23.77 | ||
|
Available to order. Add to View Price |
|||
