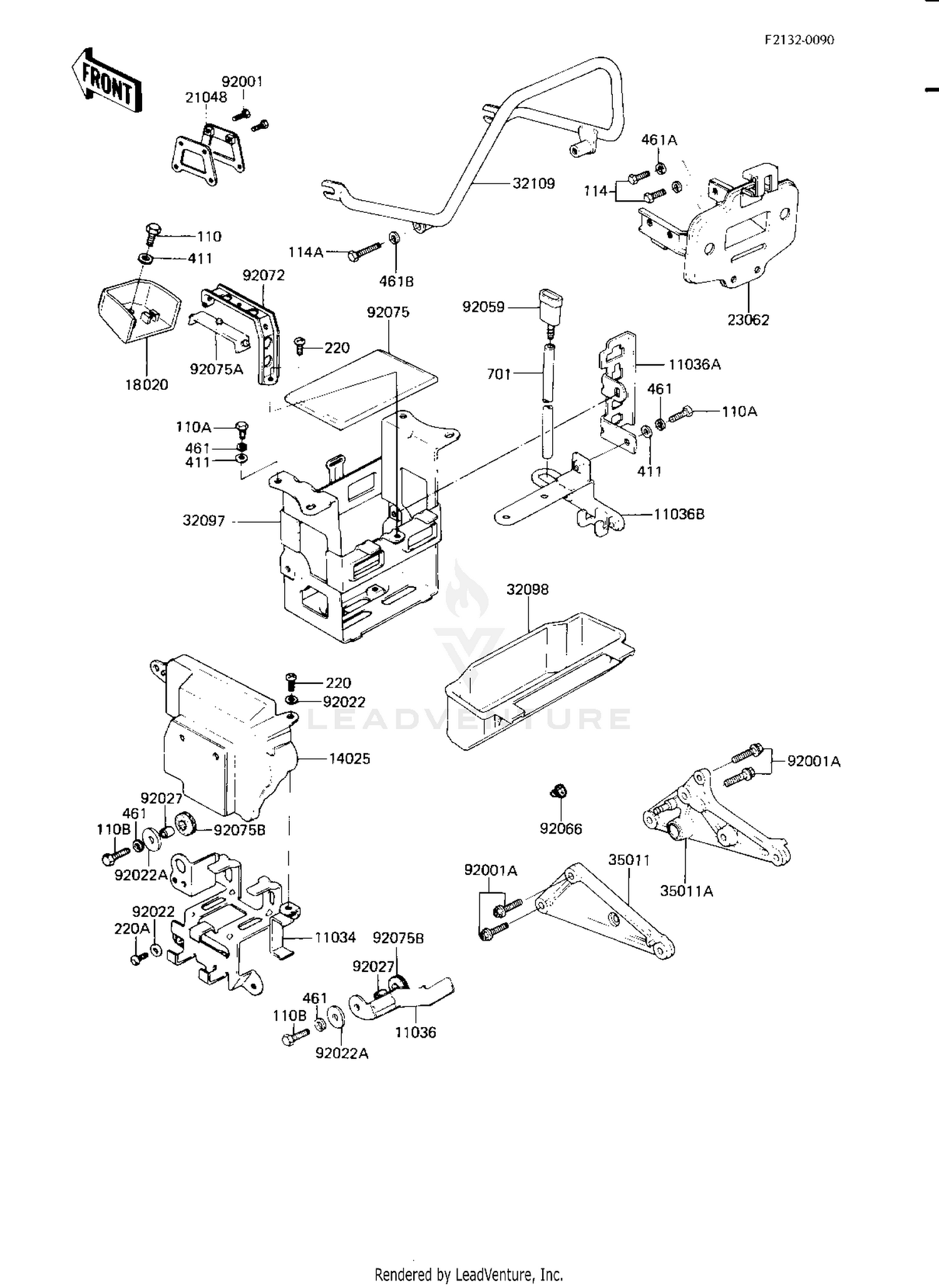

Battery Case/tool Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,ELECTRO BASE
11034-1669
|
$54.04 | ||
|
Available to order. Add to View Price |
|||
|
#11036
BRACKET-A,FUSE
11036-1043
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#11036A
BRACKET-A,COUPLER
11036-1475
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#11036B
BRACKET-A,SWITCH
11036-1662
|
$24.90 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,ELECTRO BASE
14025-1191
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#18020
BAFFLE,CARBURETOR AIR
18020-1060
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#21048
PLATE,IGNITION COIL
21048-1001
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#23062
BRACKET-COMP,TAIL LAM
23062-1024
|
$35.86 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE,TOOL
32098-1011
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE,TOOL
32098-1011
|
$34.68 | ||
|
Unavailable |
|||
|
#32109
GRIP-FRAME
32109-1031
|
$167.94 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,MUFFLER,LH
35011-1121
|
$125.69 | ||
|
Available to order. Add to View Price |
|||
|
#35011A
STAY,MUFFLER,RH
35011-1122
|
$126.64 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X10
92001-137
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X28,BLA
92001-1508
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,7X24X1.6
92022-228
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR-CLAMP
92027-291
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#92059
CONNECTOR PIPE
92059-101
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,BATTERY
92072-1019
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1076
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,BATTERY BAND
92075-1113
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-317
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#110B
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET
115G0816
Superseded by 115BA0816
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#114A
BOLT-SMALL-UPSET
115C0835
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461B
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#701
TUBE-PVC,6X300
701Q06300
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
