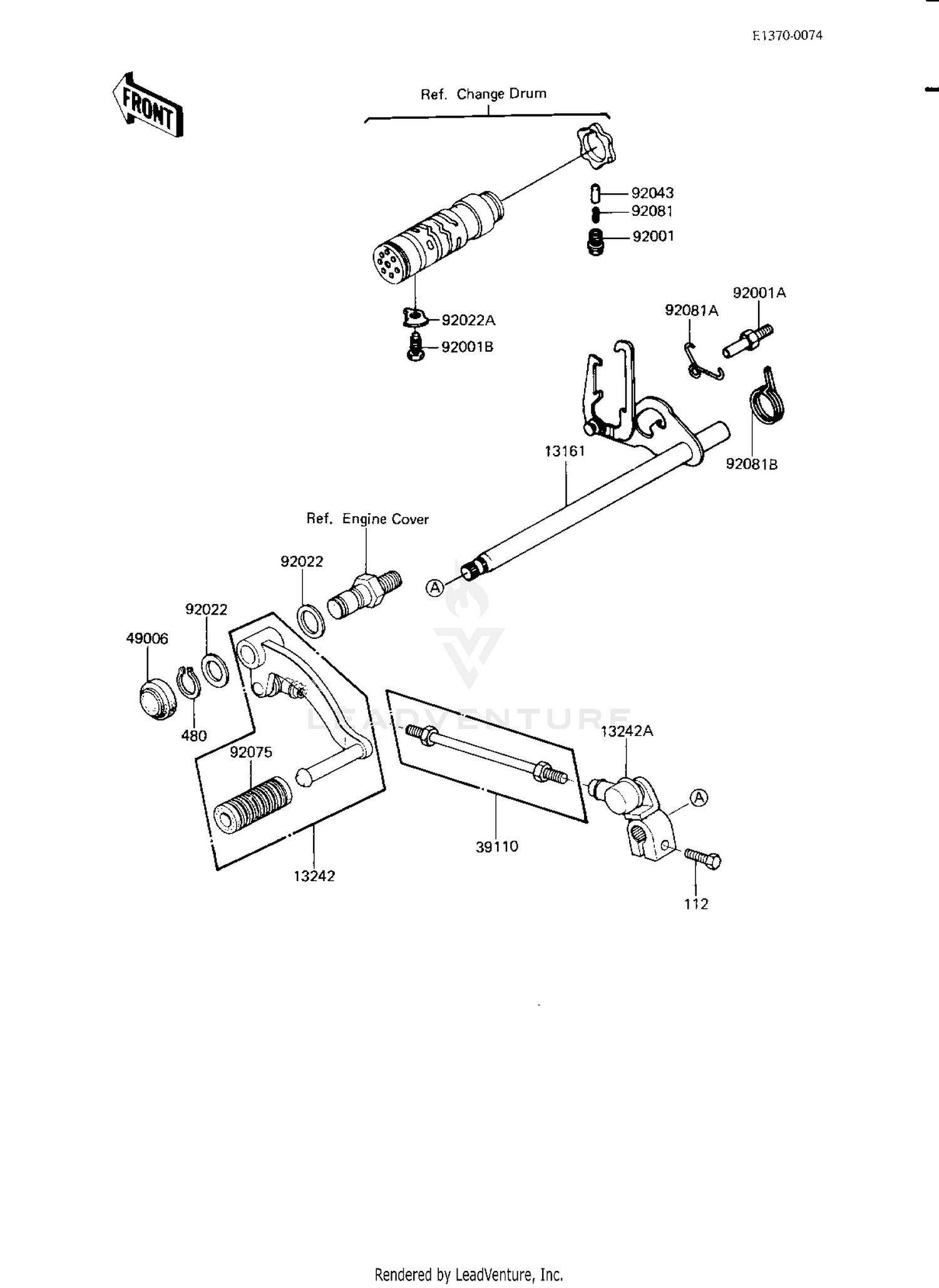

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER ASSY,GEAR SFT
13161-042
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE,PDL
13242-1049
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#13242A
LEVER-ASSY-CHANGE
13242-1074
|
$49.22 | ||
|
Available to order. Add to View Price |
|||
|
#39110
ROD-ASSY-TIE,CHANGE L
39110-1011
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CHANGE LEVER
49006-1061
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,NEUTRAL POSITION
92001-1037
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,HEX HEAD,10X26
92001-174
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.5X22X1.2
92022-072
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,LOCK,10MM
92024-074
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-076
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-112
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,KICK PAWL
92083-018
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHG PEDL RTRN
92083-028
|
$14.66 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET,6X20
112J0620
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,12MM
480J1200
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
