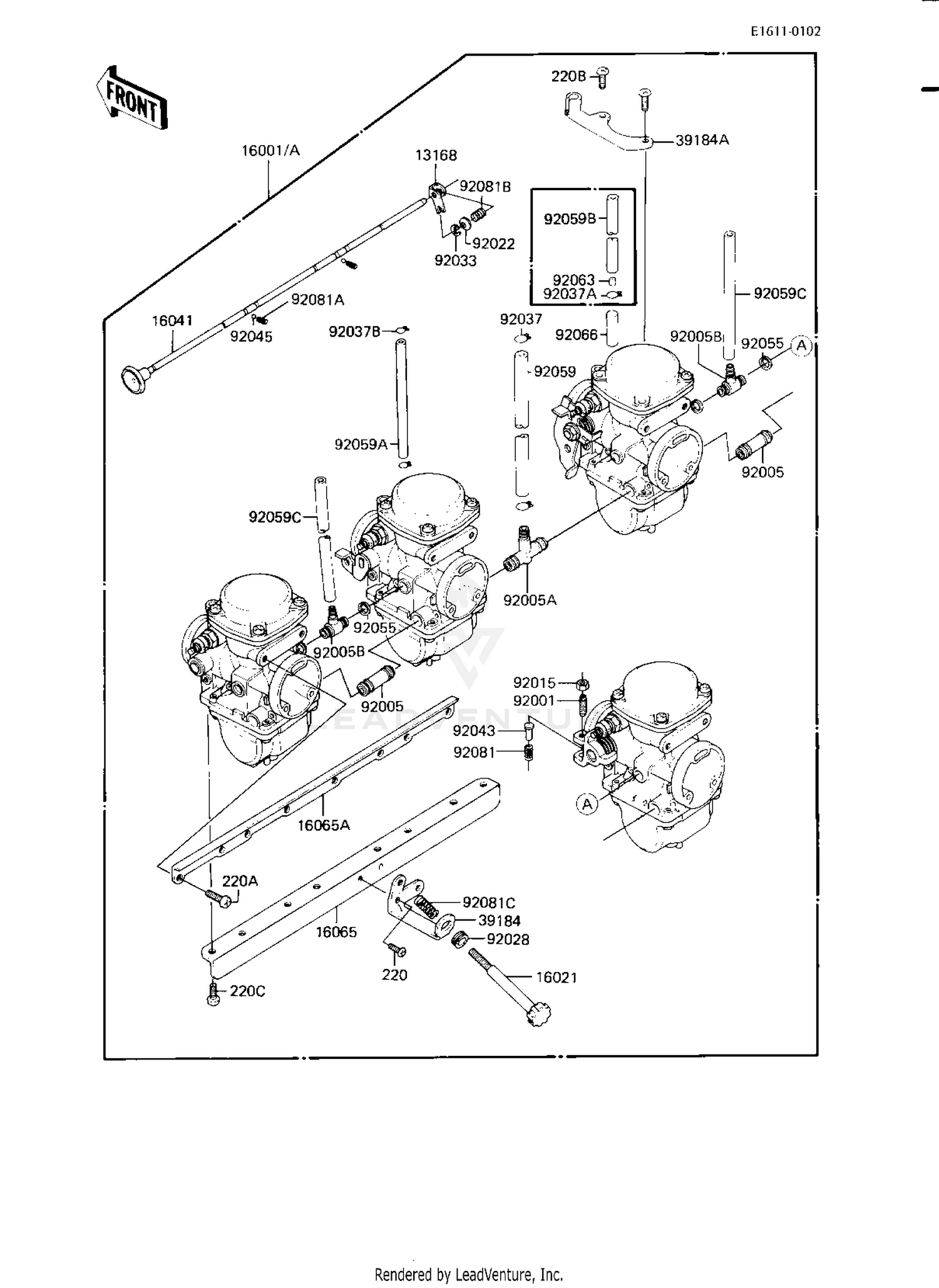

Carbuertor Assy Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER,CHOCK
13168-1091
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR
16001-1759
|
$1,122.11 | ||
|
Available to order. Add to View Price |
|||
|
#16001A
CARBURETOR ASSY,ALL (Canada)
16001-1764
|
|||
|
Unavailable |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1035
|
$28.68 | ||
|
Available to order. Add to View Price |
|||
|
#16041
SHAFT-CARBURETOR,CHOC
16041-1024
|
$48.72 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR,LWR
16065-1043
|
$82.90 | ||
|
Available to order. Add to View Price |
|||
|
#16065A
HOLDER-CARBURETOR,UPP
16065-1044
|
$56.03 | ||
|
Available to order. Add to View Price |
|||
|
#39184
BRACKET-ASSY,IDLING A
39184-1007
|
$35.77 | ||
|
Available to order. Add to View Price |
|||
|
#39184A
BRACKET-ASSY,THROTTLE
39184-1009
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,ADJUSTING
92001-1447
|
$11.61 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,FUEL
92005-1035
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING,FUEL
92005-1036
|
$64.57 | ||
|
Available to order. Add to View Price |
|||
|
#92005B
FITTING,AIR VENT
92005-1045
|
$37.49 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,THROTTLE VLV ADST
92015-1119
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPRING
92022-1255
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1071
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,E
92033-1066
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1184
Superseded by 92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE (Canada)
92037-1235
|
|||
|
Unavailable |
|||
|
#92037B
CLAMP
92037-174
Superseded by 92037-1610
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,THROTTLE VALVE
92043-1079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BALL,STEEL,1/8"
600A0400
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING
92055-510
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7.5X12.5X225
92059-1123
|
$29.52 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE, 5X9X175
92059-1188
Superseded by 92059-1850
|
$18.32 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,4.5X8X200 (Canada)
92059-1204
|
|||
|
Unavailable |
|||
|
#92059C
TUBE,6.5X9.5X220
92059-1261
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN (Canada)
92063-1097
|
|||
|
Unavailable |
|||
|
#92066
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,12X25
92068-006
|
$4.13 | ||
|
Unavailable |
|||
|
#92081
SPRING,THROTTLE VALVE
92081-1259
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,FAST IDLE SHFT
92081-1260
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHOCK SHAFT
92081-1364
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,IDLING ADJUST
92081-1377
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,5X12
220B0512
Superseded by 220AA0512
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#220C
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
