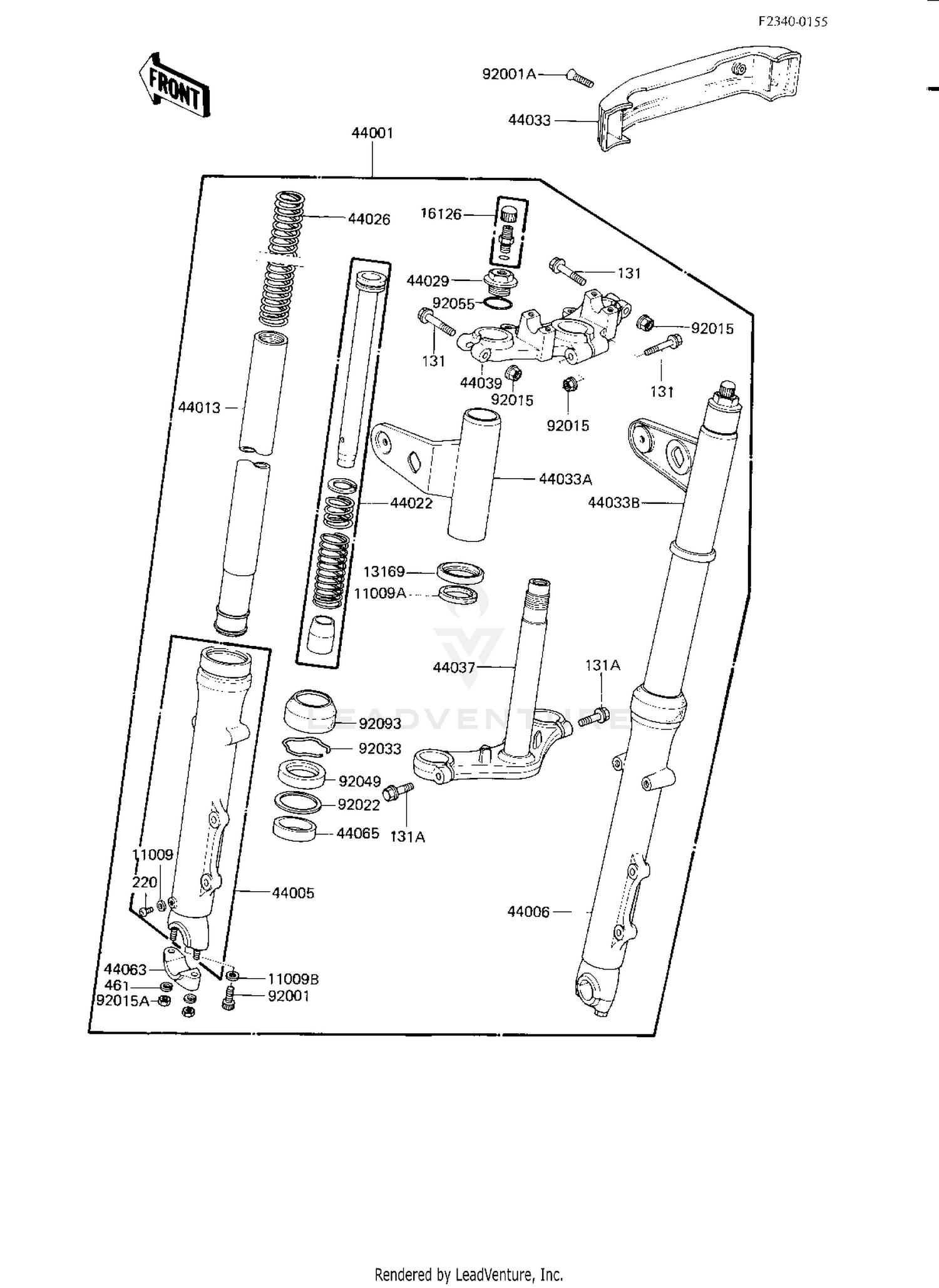

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK COVER
44045-038
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,FORK COVER,LWR
13169-1849
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE AIR
16126-1052
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1442
|
$1,221.92 | ||
|
Available to order. Add to View Price |
|||
|
#44005
TUBE,LH,FORK OUTER
44005-1093
|
$246.23 | ||
|
Available to order. Add to View Price |
|||
|
#44006
TUBE,RH,FORK OUTER
44006-1093
|
$378.78 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1112
|
$361.01 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1079
|
$82.87 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1188
|
$57.12 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1039
|
$35.12 | ||
|
Available to order. Add to View Price |
|||
|
#44033
COVER-FORK
44033-1084
|
$45.64 | ||
|
Available to order. Add to View Price |
|||
|
#44033A
COVER-FORK,LH,F.BLACK
44033-1131
|
$136.38 | ||
|
Available to order. Add to View Price |
|||
|
#44033B
COVER-FORK,RH,F.BLACK
44033-1132
|
$136.38 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1089
|
$327.31 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1074
|
$304.45 | ||
|
Available to order. Add to View Price |
|||
|
#44063
HOLDER-FRONT AXLE
44063-1006
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1016
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
SCREW-CSK-RD-CROS
222C0518
Superseded by 222AB0518
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1408
Superseded by 92210-0004
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,U,8MM,BLACK
92015-1205
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FRONT FORK
92022-1275
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK OIL
92033-1100
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK
92049-1101
Superseded by 92049-1193
|
$27.70 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,FORK TOP
92055-1012
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD,FORK
92093-1037
|
$24.41 | ||
|
Available to order. Add to View Price |
|||
|
#131
BOLT-FLANGED,8X55
130G0855
Superseded by 130BA0855
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#131A
BOLT-FLANGED,12X35,BL
131J1235
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN CROS,4X6
92009-1324
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
