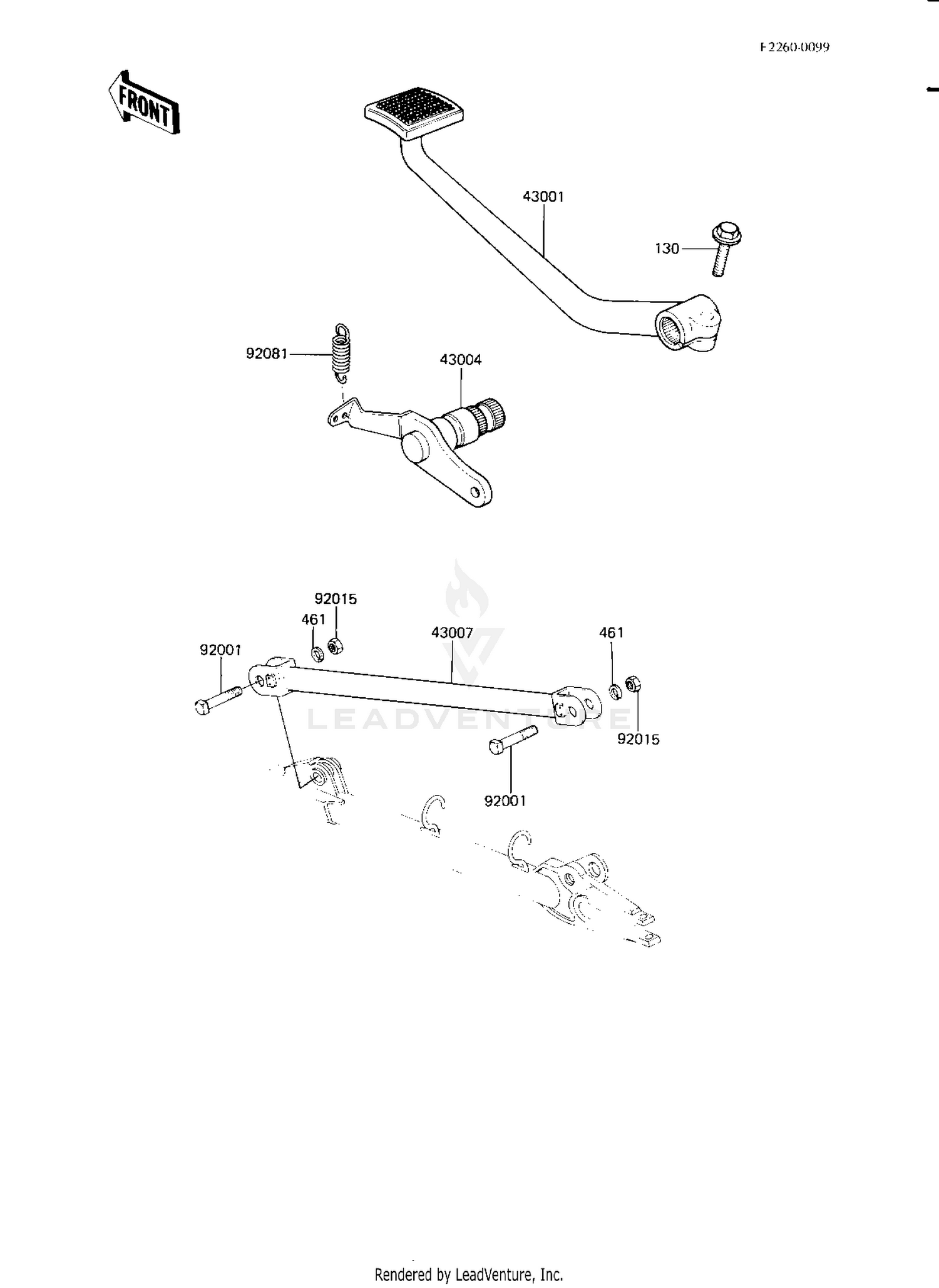

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001
LEVER-BRAKE,PEDAL
43001-1078
|
$146.63 | ||
|
Available to order. Add to View Price |
|||
|
#43004
SHAFT-BRAKE
43004-1036
|
$50.52 | ||
|
Available to order. Add to View Price |
|||
|
#43007
ROD-TORQUE,RR
43007-1034
|
$39.59 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X37
92001-1646
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL RETURN
92081-1147
Superseded by 92145-0100
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X25
130J0825
Superseded by 130BB0825
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461K1000
Superseded by 461DB1000
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
