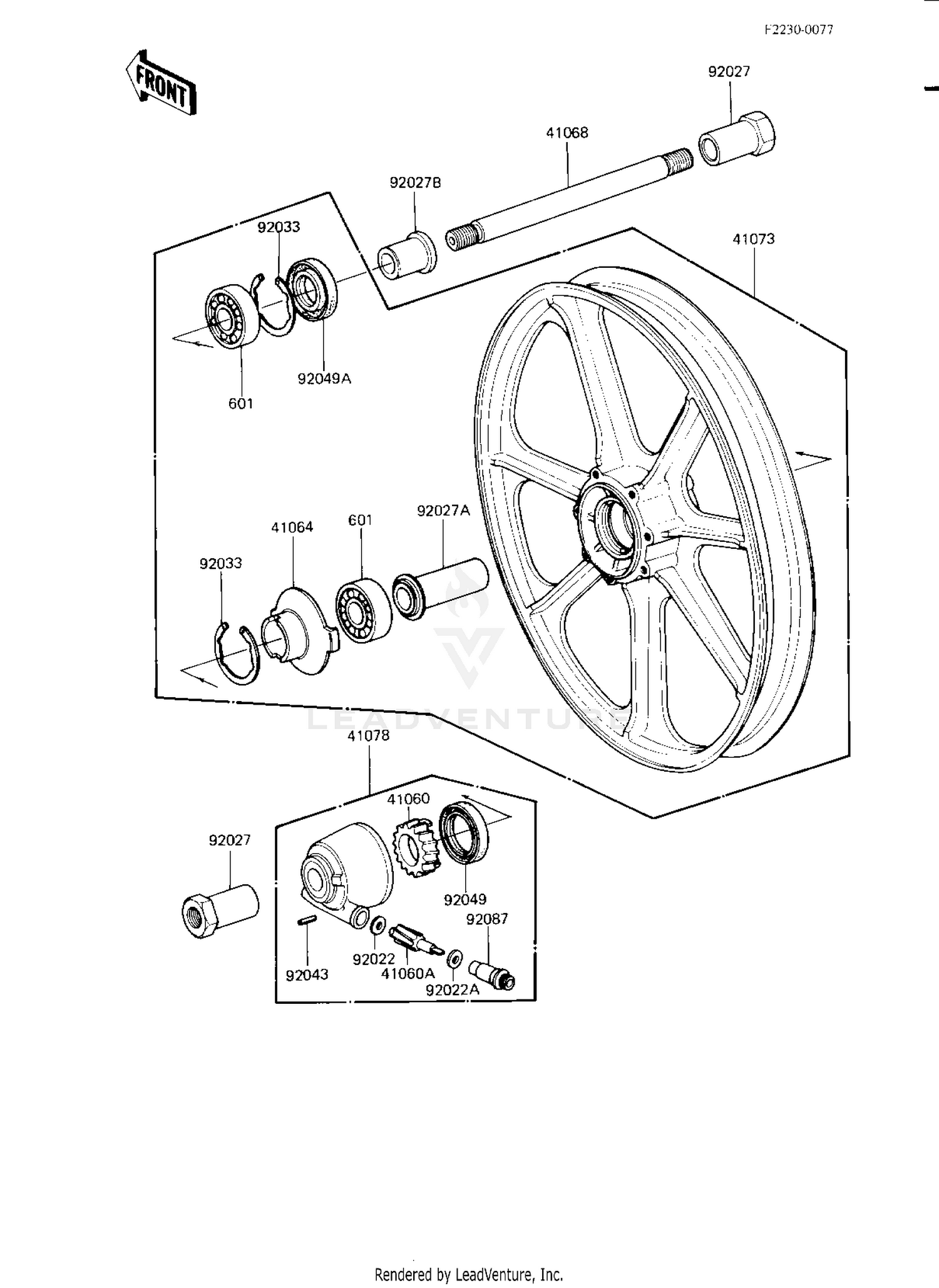

Front Wheel/hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41060
GEAR-METER SCREW,26T
41059-026
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#41060A
PINION,SPEEDOMETER,9T
41060-1016
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#41064
RECEIVER-SPEEDOMETER
41064-1006
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FRONT
41068-1031
|
$79.52 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,FR,BLACK
41073-1139-21
Superseded by 41073-1139-18
|
$963.49 | ||
|
Available to order. Add to View Price |
|||
|
#41078
CASE-ASSY-METER GEAR,
41078-1024
|
$114.03 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Unavailable |
|||
|
#92027
COLLAR,FRONT AXLE
41069-031
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,15.2X22X55
92027-1223
Superseded by 92027-1505
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,FR AXLE L=30MM
92027-1225
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SPRING
41082-001
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN30427-C3
92049-1057
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN22425
92049-1058
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92087
BUSHING-METER GEAR
92087-1002
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6302Z
601B6302Z
|
$26.41 | ||
|
Available to order. Add to View Price |
|||
