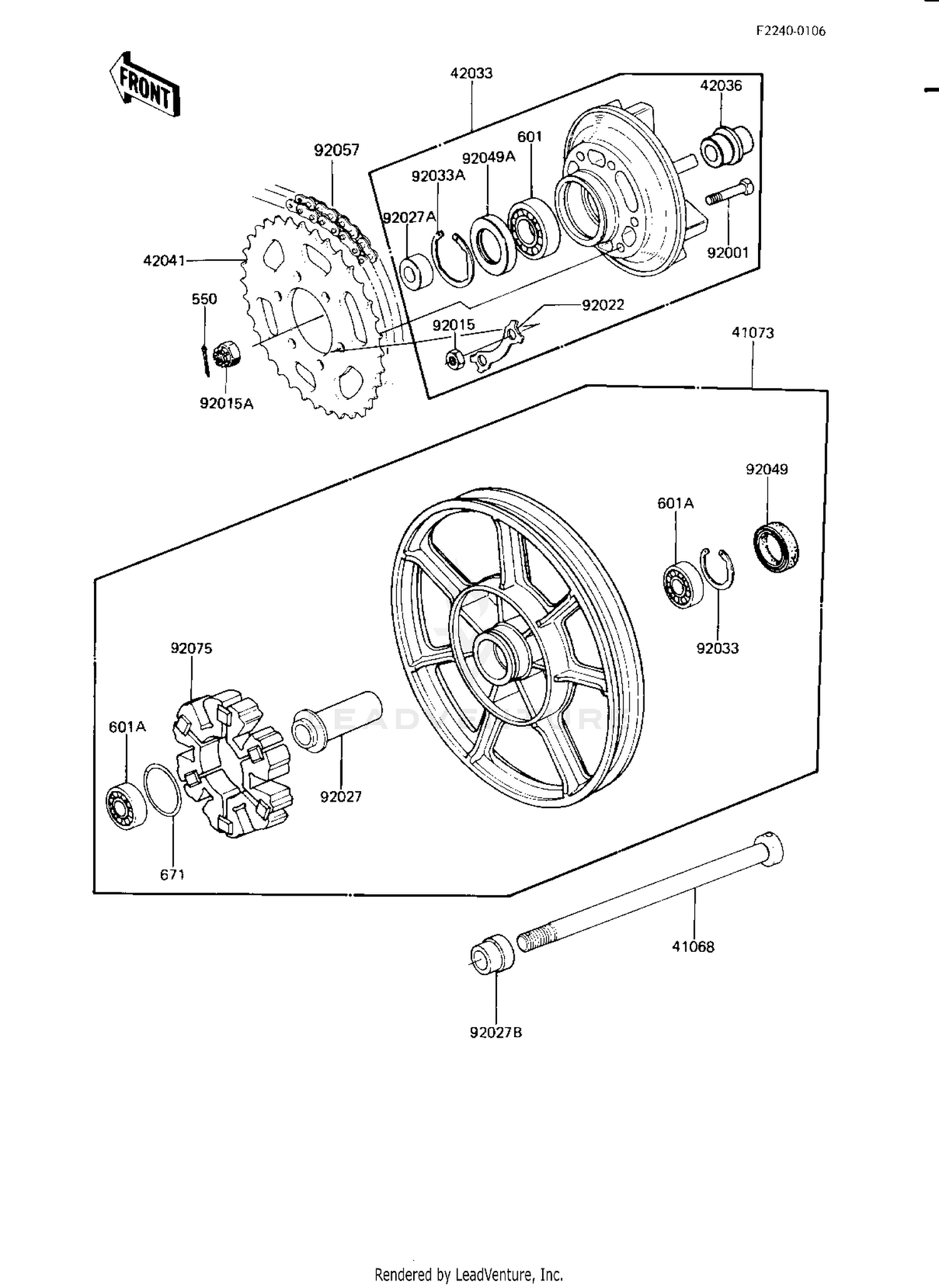

Rear Wheel/hub/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1086
|
$70.60 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,SOLID,F
41073-1140-21
|
$656.94 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB,
42033-1047
|
$173.06 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB L=33M/M
42036-1036
|
$35.33 | ||
|
Available to order. Add to View Price |
|||
|
#42041
REAR SPROCKET,33T
42041-1010
|
$122.16 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92001-161
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,LOCK
92022-1212
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,RR HUB L=90M/M
92027-1261
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,RR AXLE L.H
92027-1262
|
$30.97 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=31
92027-1263
|
$26.11 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,62MM
92033-1044
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,AJN40627
92050-027
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK630SX88
92057-1081
|
$466.12 | ||
|
Available to order. Add to View Price |
|||
|
#92075
SHOCK DAMPER,REAR HUB
42014-033
|
$107.12 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6206-9C3
601B6206
Superseded by 92045-0110
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BRG,BALL,#6303ZZC3
601B6303ZZ
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,65MM
671B2565
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
