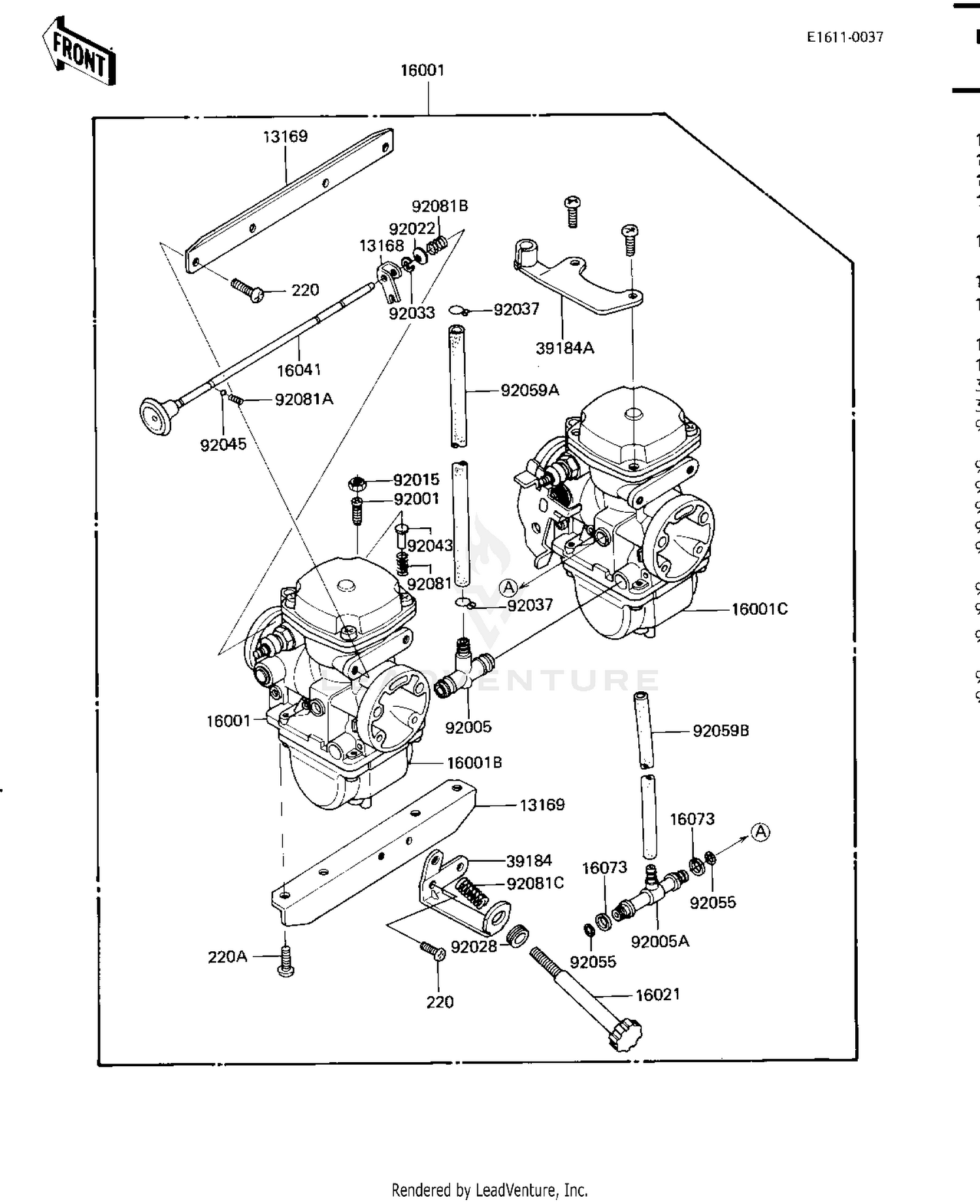

Carburetor Assy Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER,CHOCK
13168-1091
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE
13169-1466
|
$24.55 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE
13169-1467
|
$39.48 | ||
|
Available to order. Add to View Price |
|||
|
#16001
CARBURETOR
16001-1471
|
$578.49 | ||
|
Available to order. Add to View Price |
|||
|
#16001B
CARBURETOR,L.H
16001-1473
|
$275.29 | ||
|
Available to order. Add to View Price |
|||
|
#16001C
CARBURETOR,R.H
16001-1474
|
$342.85 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1035
|
$28.68 | ||
|
Available to order. Add to View Price |
|||
|
#16041
SHAFT-CARBURETOR
16041-1025
|
$64.68 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-1013
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#39184
BRACKET-ASSY,IDLING A
39184-1007
|
$35.77 | ||
|
Available to order. Add to View Price |
|||
|
#39184A
BRACKET-ASSY
39184-1010
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,ADJUSTING
92001-1447
|
$11.61 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1046
|
$51.95 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1047
|
$26.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,THROTTLE VLV ADST
92015-1119
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPRING
92022-1255
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1071
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,E
92033-1066
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1184
Superseded by 92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,THROTTLE VALVE
92043-1079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BALL,STEEL,1/8"
600A0400
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING
92055-510
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,7.5X12.5X250
92059-1187
|
$42.84 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE
92059-1206
|
$16.11 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,THROTTLE VALVE
92081-1259
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,FAST IDLE SHFT
92081-1260
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,CHOCK SHAFT
92081-1364
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING
92081-1417
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
