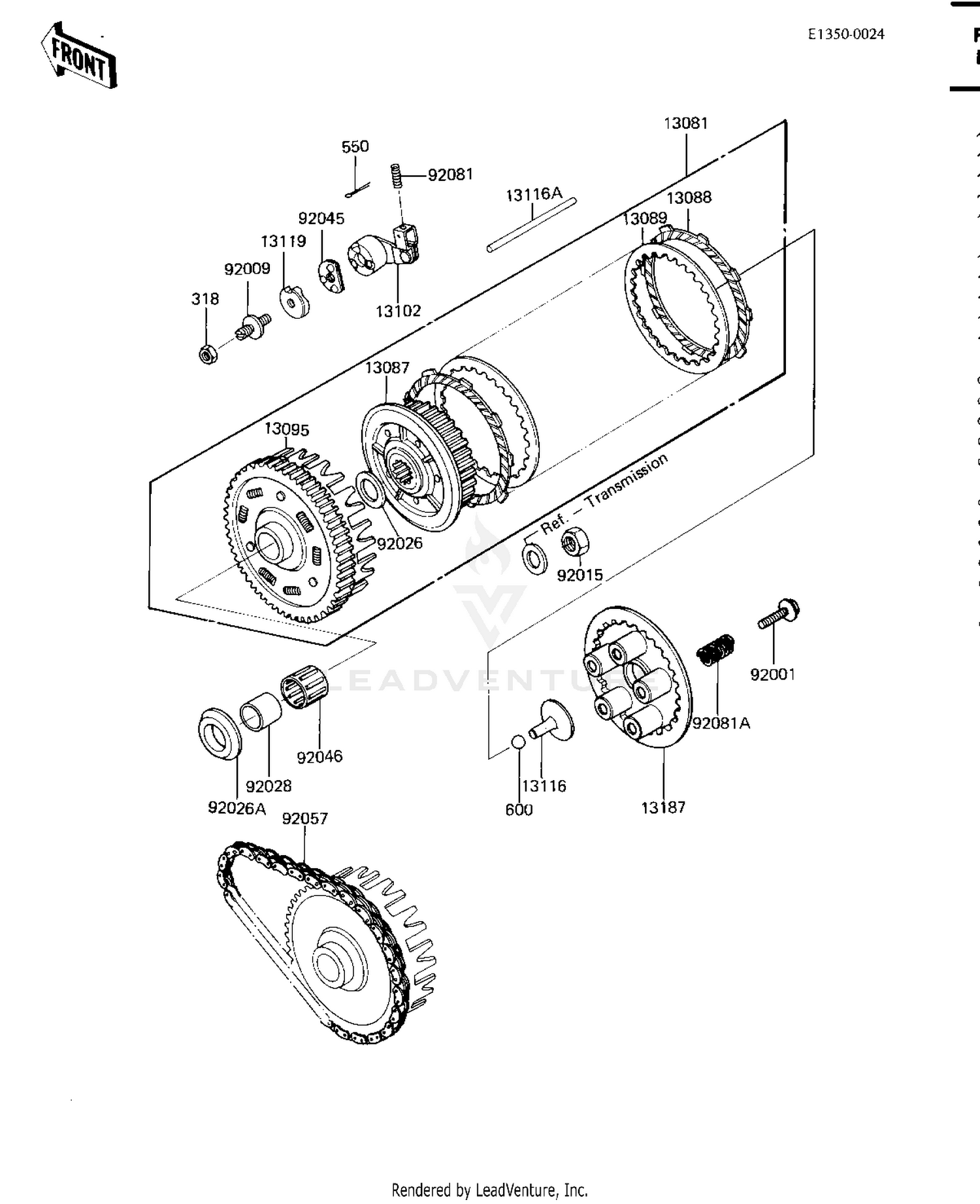

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1069
|
$489.65 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-042
Superseded by 13087-0042
|
$139.89 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1013
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH
13089-027
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING,CLUTCH
13095-050
|
$362.45 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1012
|
$64.97 | ||
|
Available to order. Add to View Price |
|||
|
#13116
PUSHER,CLUTCH SPRG PL
13116-022
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD,CLUTCH PUSH
13116-1007
|
$35.89 | ||
|
Available to order. Add to View Price |
|||
|
#13119
CAM,RELEASE,CLUTCH
13119-1003
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE,CLUTCH SPRING
13187-008
|
$61.58 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,SLOTTED,8M/M
92009-1009
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-123
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,25X32X23.6
92028-178
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#92045
RETAINER,CLUTCH RELEA
92045-1001
Superseded by 14020-1091
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KTV323723
92046-028
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,PRIMARY
13122-008
|
$400.64 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING-CLUTCH RELEASE
92081-069
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CLUTCH
92081-1033
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,1.6X15
550D1615
Superseded by 550AA1615
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#600
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
