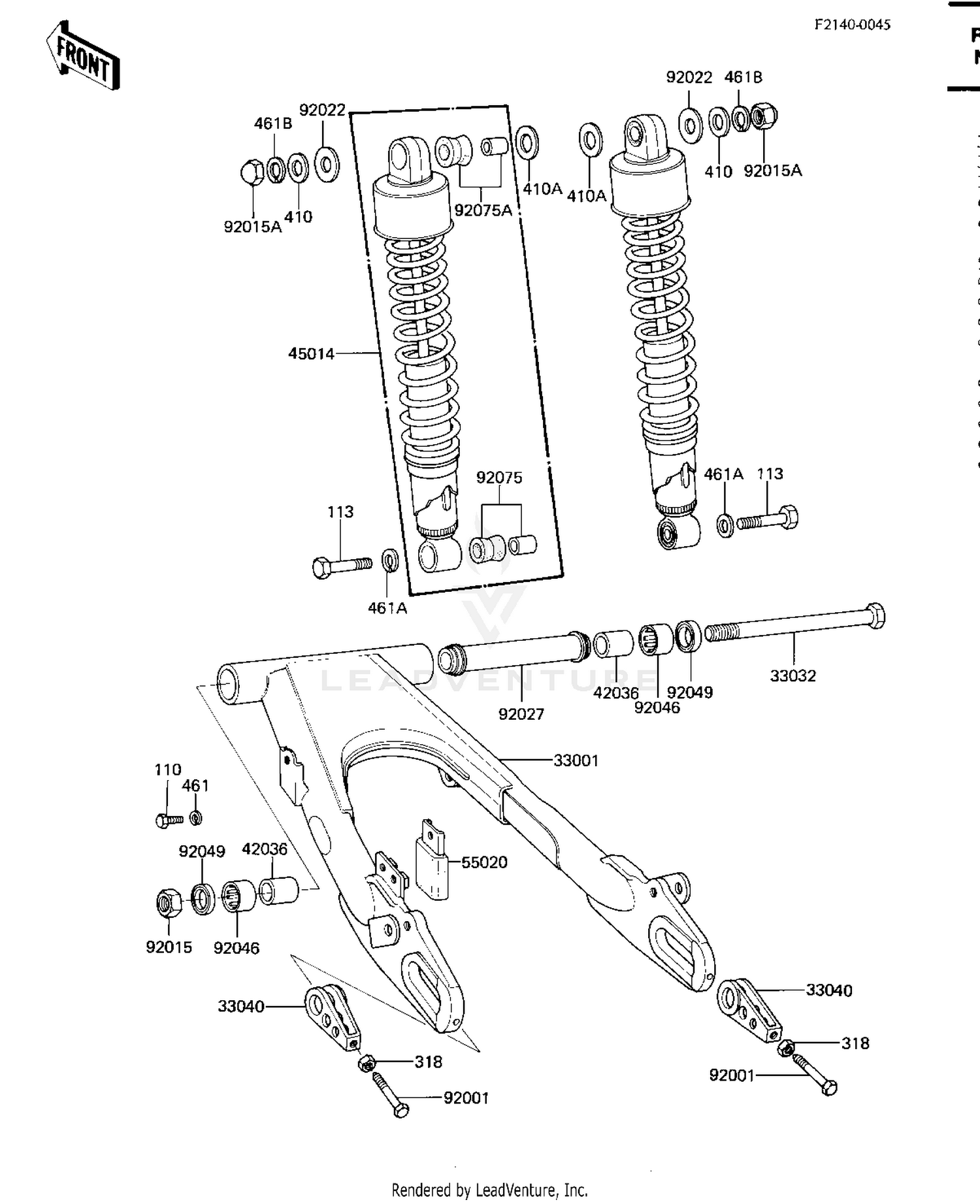

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#33001
ARM-COMP-SWING
33001-1115
|
$270.54 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT,SWING ARM PIVOT
33032-047
|
$53.78 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER,CHAIN
33040-056
|
$28.33 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM
42036-1040
|
$27.85 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCK ABSBR RR
45014-1161
|
$402.76 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1152
|
$30.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,8X50
92001-1399
Superseded by 92002-1076
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT-SELF LOCKING
92019-012
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT 12MM
92020-014
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,12.4X28X2.3
92022-1239
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1364
|
$18.18 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BHTM2530-1
92046-1035
|
$25.37 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MH25334
92049-1060
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92075
BUSHING,SHOCK ABSORBE
45017-019
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,SHOCKABSORBER
92075-1141
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#113
BOLT-UPSET
113N1035
Superseded by 112N1035
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,14MM
410B1400
Superseded by 410AA1400
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#461B
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
