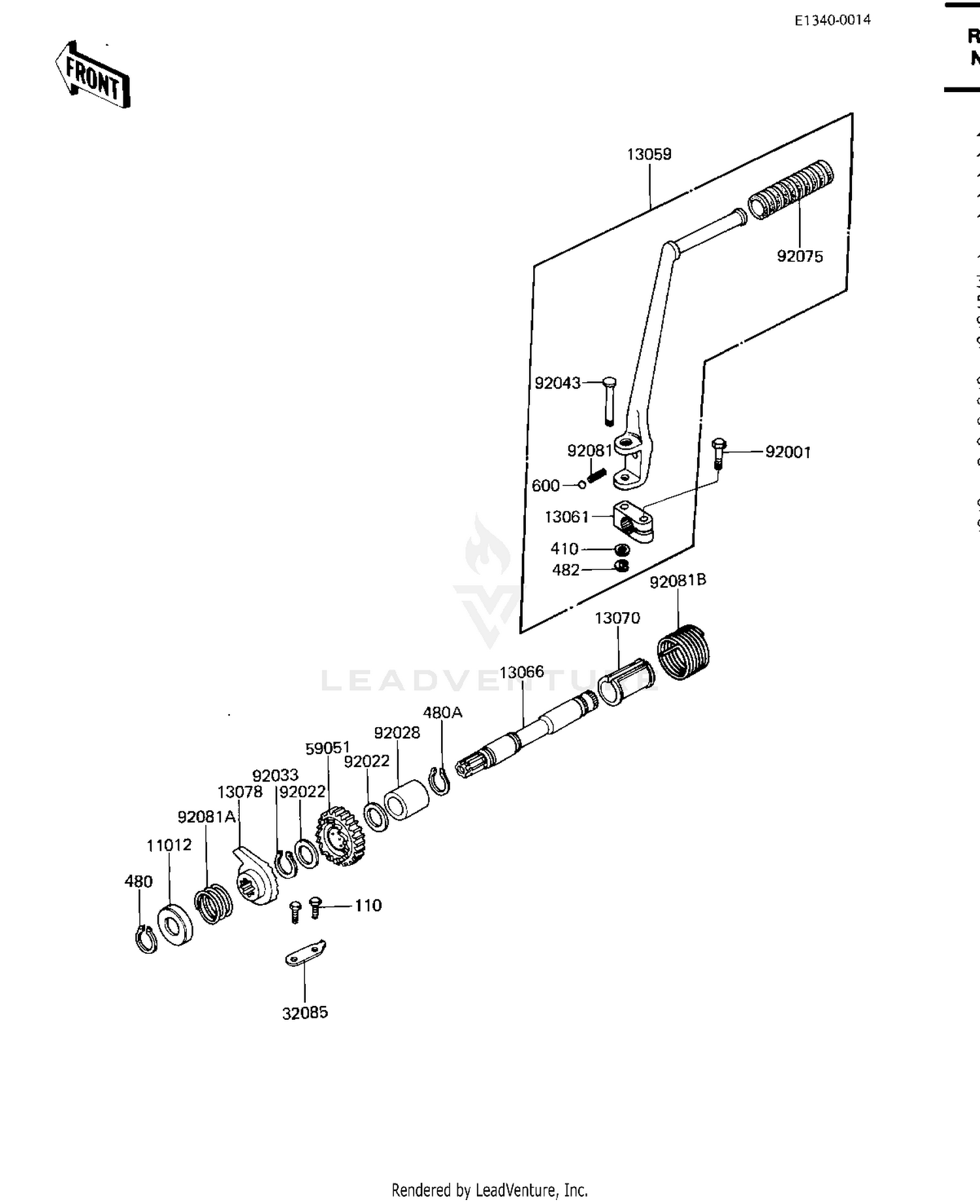

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,KICKSTARTER
92102-008
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#13059
PEDAL ASSY,KICK
13058-061
|
$106.90 | ||
|
Available to order. Add to View Price |
|||
|
#13061
BOSS-KICK PEDAL
13061-010
|
$57.69 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT,KICKSTARTER
13066-1004
|
$139.07 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUID,KICK SPRING
13070-1008
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET,KICK SHAFT
13078-011
|
$104.17 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,KICKSTARTER
13072-012
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR,KICKSTARTER
59051-1005
|
$63.41 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-KICK PEDAL
92001-110
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN,22MM
92022-207
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#92028
COLLAR,KICKSHAFT
92028-126
|
$29.17 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20X25.5X1.2
92033-025
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN-KICK PEDAL
92043-081
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,KICK PEDAL
13063-004
Superseded by 92161-2388
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,KICK PEDAL
92081-020
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92018A
SPRING RATCHET
92081-104
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#92018B
SPRING,KICKSTARTER
92082-004
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0614
Superseded by 112BA0614
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,19MM
480J1900
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,22MM
480J2200
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP 5MM
482K5000
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
