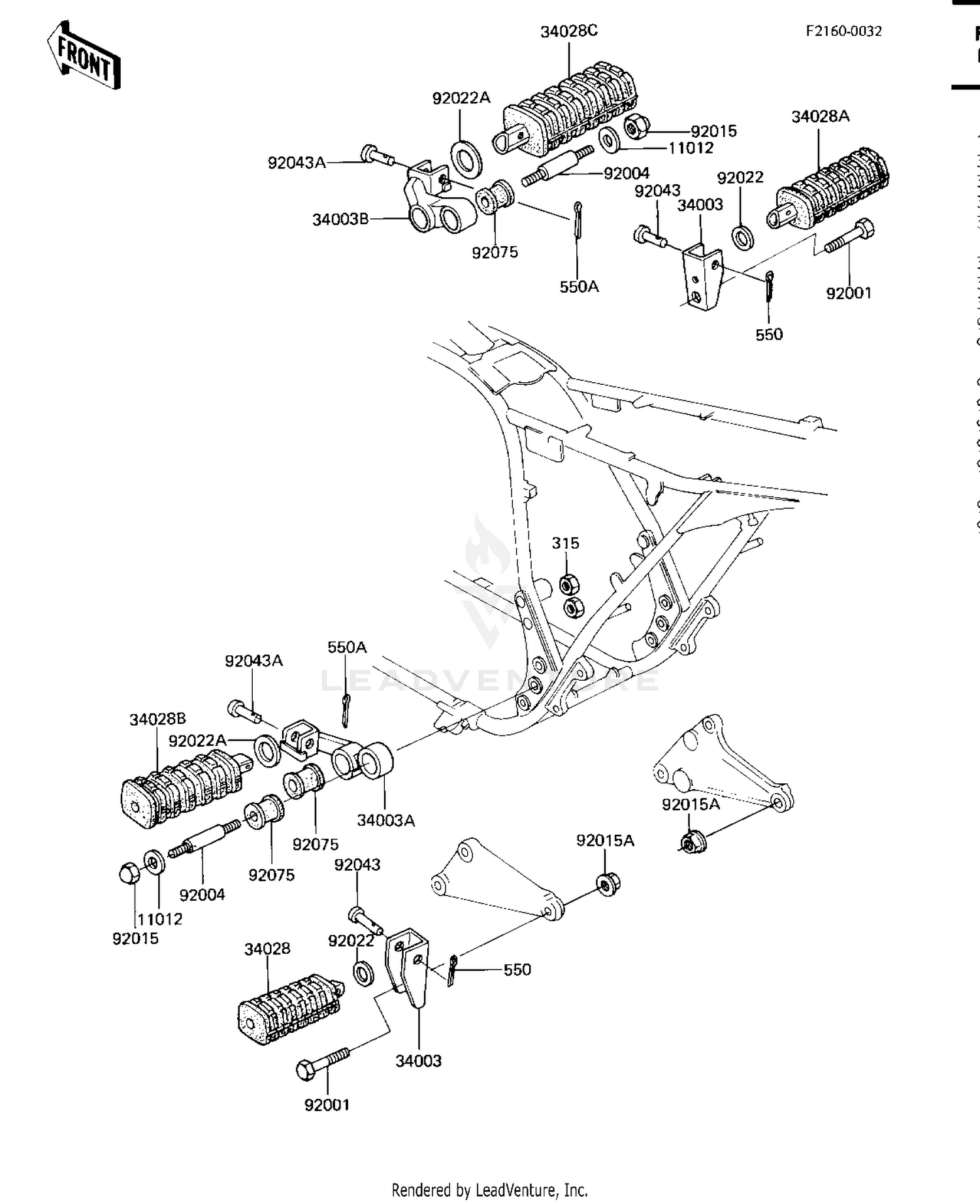

Footrests Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,FOOTRESTBAR
92102-010
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#34003
HOLDER,REAR FOOTREST
34003-1025
|
$33.46 | ||
|
Available to order. Add to View Price |
|||
|
#34003A
HOLDER-STEP
34003-1120
|
$49.37 | ||
|
Available to order. Add to View Price |
|||
|
#34003B
HOLDER-STEP
34003-1121
|
$55.94 | ||
|
Available to order. Add to View Price |
|||
|
#34028
STEP,RR FOOTREST,L.H
34028-1024
|
$87.16 | ||
|
Available to order. Add to View Price |
|||
|
#34028A
STEP,RR FOOTREST,R.H
34028-1025
|
$87.16 | ||
|
Available to order. Add to View Price |
|||
|
#34028B
STEP-ASSY,FR,LH
34027-1106
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#34028C
STEP-ASSY,FR,RH
34027-1107
|
$38.06 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD 10X35
92001-1252
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD
92004-067
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,LOCK,8MM
92015-1133
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1428
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER-PLAIN
92022-181
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6X28
92043-1464
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,8X35.5
92043-115
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER,FOOTRST
92075-140
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN,COTTER,2.0X12
550D2012
Superseded by 550AA2012
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN-COTTER,2.5X15
550D2515
Superseded by 550AA2515
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
