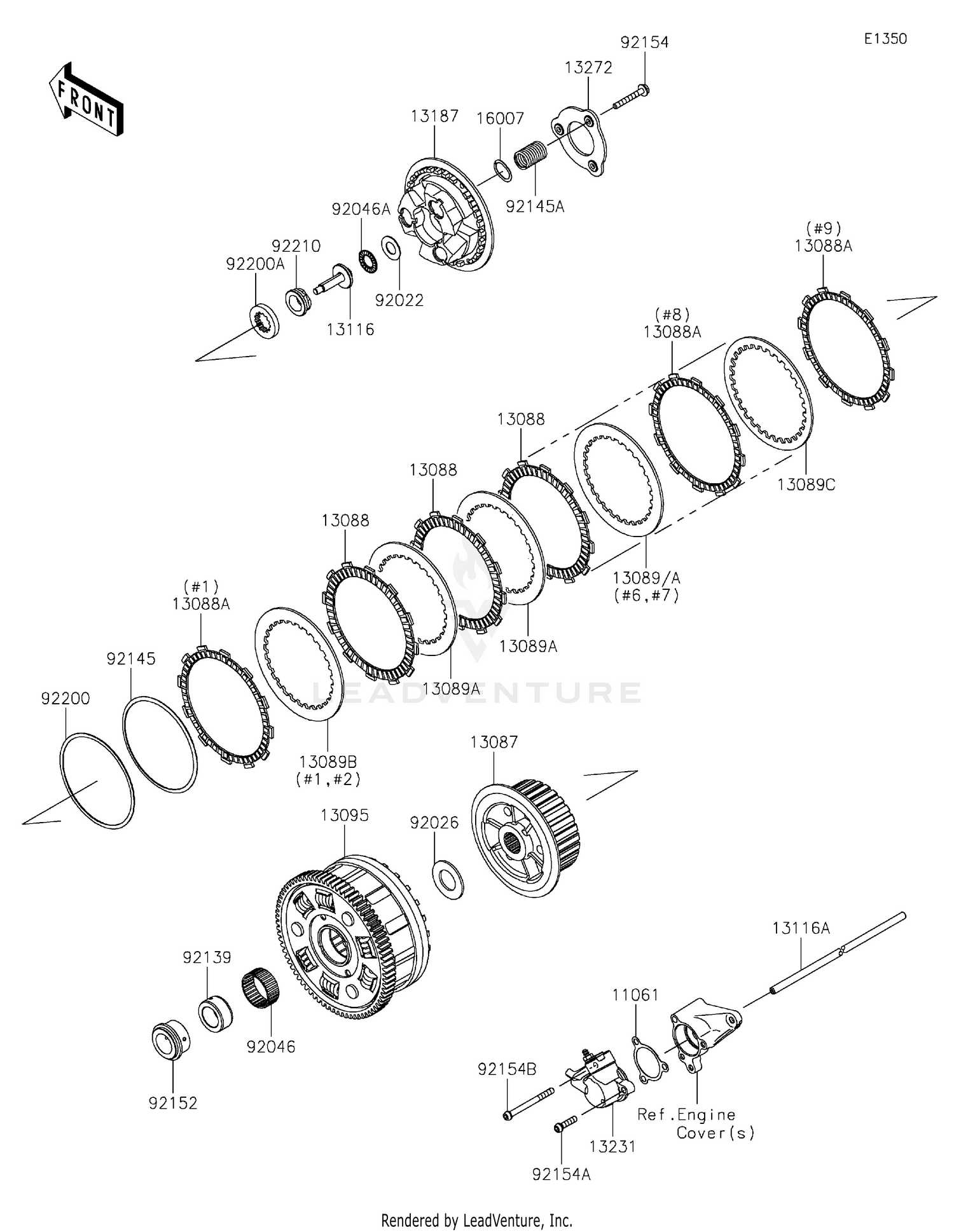

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,CLUTCH RELEASE
11061-1259
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-0591
|
$255.59 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-0575
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#13088A
PLATE-FRICTION
13088-0576
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.3
13089-0027
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#13089A
PLATE-CLUTCH,T=2.6
13089-0028
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#13089B
PLATE-CLUTCH,T=2.9
13089-0030
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#13089C
PLATE-CLUTCH,T=2.6
13089-0036
|
$16.94 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-0602
|
$704.61 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH
13116-0732
|
$38.57 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD-PUSH
13116-0747
|
$32.91 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATING
13187-0034
|
$149.06 | ||
|
Available to order. Add to View Price |
|||
|
#13231
RELEASE-ASSY-CLUTCH
13231-0009
|
$116.45 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-1303
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-0736
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,15.1X29X1.0
92022-1463
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-0041
|
$21.60 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,AXK1102
92046-1052
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING,25X38X17.3
92139-0304
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1250
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1700
|
$16.01 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0866
|
$39.82 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X45
92154-1909
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,6X25
92154-2793
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,SOCKET,6X70
92154-2794
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,T=1.2
92200-1580
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,TOOTHED,38.5X25X6.3
92200-1833
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0397
|
$49.68 | ||
|
Available to order. Add to View Price |
|||
